Product Specifications
| Prod Model: |
SC916 5921S 2x2 |
| Application: |
Computer |
Product Description

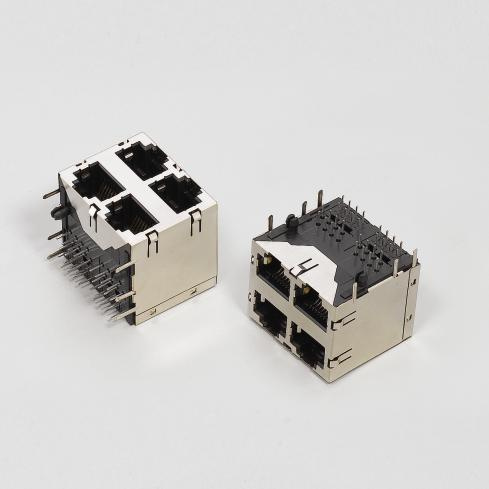

Item No.: SC916 5921S 2x2
Description: Unshilded or shielded modular jack, 8P, 2x2 ports, round pin
Angle: 90 Degree
Color: Black, also can requested by customers
Specification
Electrical
1. Current Rating: 1.5 amps
2. Voltage Rating: 125vac
3. Insulation Resistance: 500Ωmin
4. Contact Resistance: 30Ωmax
5. Withstanding Voltage: AC 1000V RMS 50Hz or 60Hz 1 min
Mechanical
1. Insertion Force: 2.2KG. F max
2. Retention Strength: 7.7KG. F min between jack and plug
3. Durability: 600 mating cycles min
Material
1. Housing: ABS RESIN(UL94V-0)
PBT(UL94V-0)
PA66(UL94V-0)
PA46(UL94V-0)
2. Contact Wire: Diameter 0.45mm phosphor bronze gold plating over
Nickel. 0.35mm thickness phosphor bronze alloy selective gold Plating over nickel
3. Shield: 0.20~0.25mm thickness brass with tin plated
4. Gold Plating: <3u inch, 3u inch, 6u inch, 15u inch, 30u inch, 50u inch
Yueqing Shichuang Electronics Co., Ltd. Of Zhejiang is a high-tech enterprise that specializes in developing, producing and selling communication network connector. The company has the honor to get ISO9001-2000 quality management system and ISO14001 environment management system. The main products including telephone jack & plug, computer and network jack & plug, computer cables, module pcb jack, etc. All the products have gained UL approval.
Now the employees number of the company reaches 300, and the building areas has expanded to 8000m² . The company have a strong R&D ability for new product and manufacturing ability for molds, advanced production equipment and quality testing equipment. Meanwhile, the reliable product quality, competitive price, and in time delivery, causes our product to sell to US, Japan, South Korea and Europe and so on the domestic and foreign markets, and become world famous company's qualified suppliers, such as PANASONIC, NEC, TCL and so on.
The company insists on the quality policy of "people-foremost, Customer-oriented, Continuous Improvement, lasting management". And take the business theory of "take the market as the guidance, take the talented person as the cornerstone, take the technology as the core, take the quality as the life". Tried to create the well-known brand of precision connector industry, and provide the best service for the customers.
