Product Specifications
| Prod Model: |
PN-YG(B)026H-250 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Using: |
Textile and Fabric Strength Testing |
| Standards: |
ISO |
| Type: |
Strength Testing Machine |
| Weight: |
100-500Kg |
| Power Source: |
AC220V |
Product Description

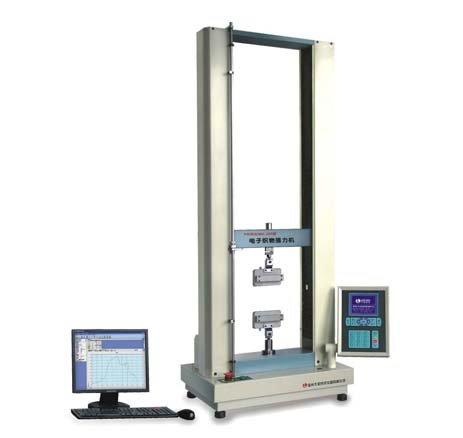

Computer-Control Textile and Fabric Strength Tester
1. Application:
This tester is used for the tensile strength, tearing strength, Crushing strength, fixed elongation, fixed load, Elasticity, Suture slippage, peeling strength of all kinds of fabrics.
This tester is also widely used in rubber industry, plastic industry, leather industry, metal industry, paper industry, packaging industry etc.
2. Standards:
GB/T3923.1/2, GB/T13772.1/2/3, GB8687, FZ/T20019, FZ/T70006, FZ/T01085 FZ/T01030, FZ/T70007, ISO13934.1/2, ISO13935.1/2, ISO4606, ISO9073.3/4 ASTM D5034, ASTM D5035, ASTM D2261, ASTM D434 ASTM D4964 ASTM D5587 ASTM D3936 JIS L1093 BS DIN.
3. Features:
1) Imported servo motor, highly precious.
2) Imported high-strength arc belt and OMRON precision encoder.
3) Imported precision sensor, 32-bit ARM high speed processor, 24-bit A/D.
4) With professional software, the tester can be operated by PC.
5) With English/Chinese Edittion.
6) The testing unit can be changed freely, such as N, CN, Kgf, Ib, In, etc.
7) The test report can be created to EXCEL, WEB and Graphic type.
8) The software has three curves display, such as L/T, F/T, F/L (L-enlogation, F-force, T-time)
4. Specification:
1) PC control, LCD screen display, printer and curve display;
2) Comprehensive sampling rate: 1000/s;
3) Capacity: 2500N;
4) Force measurement range: 1%-100%;
5) Accuracy: ≤ ± 0.2%F. S;
6) Tensile speed: 1-1000mm/min;
7) Effective stroke: 800mm;
8) Elongation resolution: 0.01mm;
9) Gantry width: 400mm;
10) Clamping type: Pneumatic, manual;
11) Outer dimension: 665*450*1640mm;
12) Weight: 175kg;
13) Power supply: AC220V± 10%, 50Hz.
