Product Specifications
| Prod Model: |
EG906C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
12 Months |
| Trimming System: |
Outside-Trimming Syst |
| Rail: |
Aluminum Linear Rail |
| Speed: |
850rpm |
| Hook: |
Japanese Rotary Hook |
| Language Support: |
12 Languages |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Main Motor: |
Japanese Panasonic Servo Motor |
| Belts: |
Italy Magadyne Belts |
| Width: |
3.6m |
| Certification: |
ISO, SGS |
| Type: |
Embroidery Machine |
Product Description
Multi Head Embroidery Machine for Cap/ T-Shirt/ Logo Embroidery
Computerized cap embroidery machine with 9/12 needles, which is suitable for flat embroidery, cap embroidery, T-shirt embroidery and finished garments embroidery.
Specifications
1. 8'' touch screen computer
2. Panasonic servo motor
3. Japan Koban hook
4. Italy belts
5. Aluminum linear Rail
Product Description
I. Main features of the embroidery machine
1. Suitable for flat bed embroidery, cap embroidery and finished garments embroidery
2. Embroidery area: 400 X 450 mm, or 15.7" X 17.7"
3. Automatic thread trimmer
4. Maximum speed 1000 SPM
5. 270° Wide cap frame unit
6. Color LCD display showing real time stitching
7. USB port ready
8. Auto color change
9. Thread break detection
10. Pre-Sew Design Trace capable
11. Memory size: 1, 000, 000 stitches
12. Electricity: 110V/60Hz or 220V/50Hz available
13. Start, Stop, and Emergency Stop
14. On-board lettering
II. Full color control panel
1.8" High Definition color LCD display showing real time stitching
2. Function keys including Menu, Speed up and slow down (also Page Up and Page Down), Help, USB-Input, Parameter Settings, Clear, ESC, Enter, etc.
3. Numeric keys for selection of needles
4. Frame-moving keys
5. Manual Trimming
6. Manual Color Change
7. Embroidery Status
8. Embroidery Method
9. DOT Key to return to 100 degrees
10. Mutli languages available

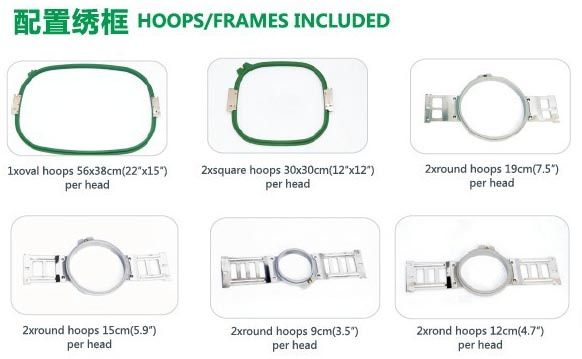

III. Frames/hoops
1 Sash Frame: 40.5cm X 48cm (16" X 19") for single head, 81cm X 48cm (32" X 19") for 2 head etc.
2 sets of back hoops for 30cm X 30cm (11.80" X 11.80") for each head
2 sets of front hoops of 19cm (7.50") for each head
2 sets of front hoops of 15cm (5.90") for each head
2 sets of front hoops of 12cm (4.70") for each head
2 sets of front hoops of 9cm (3.50") for each head
IV. Cap attachments
1 cap hoop station, 1 cap driver and 2 cap hoops for each head
V. Accessories
Table top
Operation Manual
Tool Kit
Bobbin Winder
All spare parts will come together with 4 head computerized cap embroidery machine in one case.
Warranty, service and lifetime support 1# in the industry. It is our honor to serve you.
|
NEEDLES |
HEAD |
EMBROIDERY SPACE(L*W) |
HEAD INTERVAL(mm) |
LENGTH(mm) |
WIDTH(mm) |
HEIGHT(mm) |
WEIGHT(kg) |
|
6\9\12 |
2 |
400*450 |
400 |
1520 |
900 |
1530 |
350 |
|
6\9\12 |
4 |
400*450 |
400 |
2620 |
900 |
1500 |
600 |
|
6\9\12 |
6 |
400*450 |
400 |
4250 |
900 |
1500 |
950 |
|
6\9\12 |
8 |
400*450 |
400 |
5050 |
900 |
1500 |
1200 |
We specialized with embroidery machine, Machinery for Garment, Shoes & Accessories and other related products. Our brand is ELUCKY and OEM service is warmly welcome. We understand our customers, we care about the future of our business. We want to ensure that you get our good service, not only high quality and speedy delivery. Welcome to visit our factory and we sure we will be of your good partner in China.
