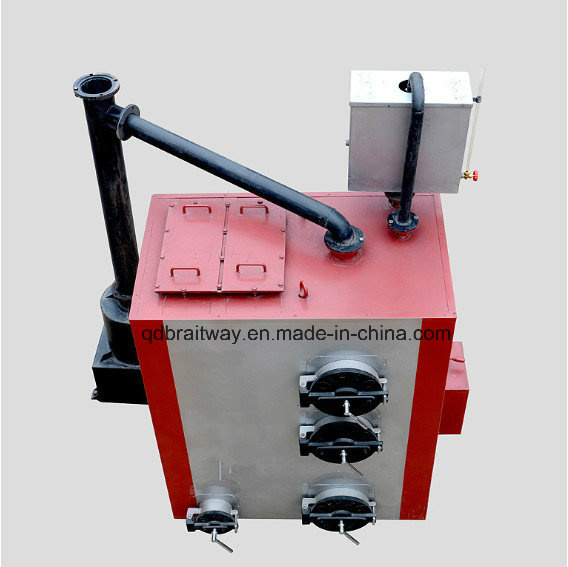

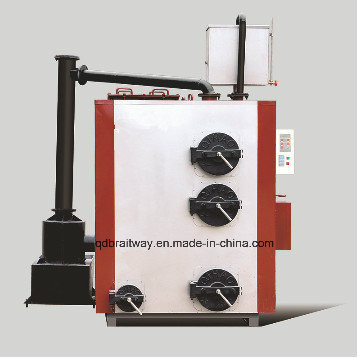

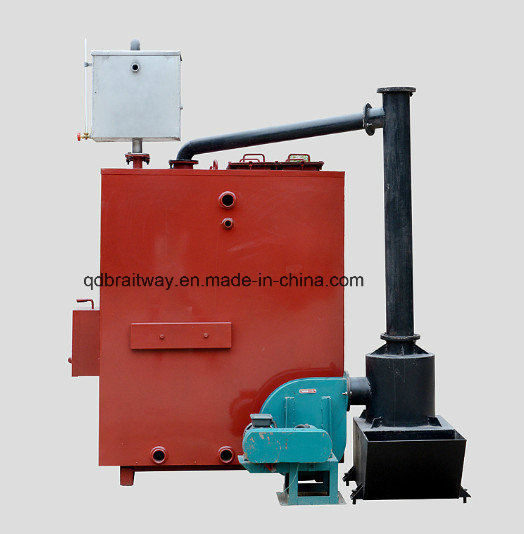

Computerized Numerical Control Boiler (Coal fired hot water boiler)

Name: Computerized Numerical Control Boiler (Coal fired hot water boiler)
Brand: china-manufacturer-directory.com
SKU: 772695415
Availability: InStock
Rating: 5 (79 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Characteristics
High efficiency than traditional product
Power-saving gasification and Oxygen - enriched combustion

Items		Boiler Type
Items		GLAG0.035	CLSG0.046	CLSG0.07	CLSG0.092	CLSG0.12	CLSG0.14	CLSG0.19	CLSG0.23	CLSG0.3
Rated thermal power(MW)	MW	0.035	0.046	0.07	0.092	0.12	0.14	0.19	0.23	0.3
Heat Value	10000Kcar	3	4	6	8	10	12	16	20	26
Heat Value	T	0.05	0.07	0.1	0.13	0.17	0.2	0.27	0.38	0.43
Heating Area	m²	300	400	600	800	1000	1200	1600	2000	2600
Rated Working Pressure	MW	0	0	0	0	0	0	0	0	0
Rated effluent temperature	ºC	85	85	85	85	85	85	85	85	85
Rated return water temperature	ºC	60	60	60	60	60	60	60	60	60
Ringelmann Number	Ringelmann black degree	<1	<1	<1	<1	<1	<1	<1	<185	<1
Designed heat efficiency		80	80	80	80	80	80	80	80	80
Outlet diameter	DN	40	40	40	50	50	50	50	50	65
Drainage diameter	DN	40	40	40	50	50	50	50	50	65
Discharge diameter	DN	40	40	40	50	50	50	50	50	65
Water Capacity	m³	0.15	0.18	0.4	0.6	0.7	0.8	0.9	0.98	1.2
Applicable coal		A III	A III	A III	A III	A III	A III	A III	A III	A III
Coal Consumption	Kg/h	5	6.5	10	13	17	20	26	35	45
Bath Water Consumption(50ºC)	t/h	0.5	0.75	1	1.5	2	2.5	3	4	5
Number of people		8	12	16	25	32	40	50	65	80
Chimney Size	mm	Φ140 x 3000	Φ140 x 3000	Φ140 x 4000	Φ140 x 4000	Φ140 x 5000	Φ140 x 5000	Φ140 x 6000	Φ140 x 6000	Φ140 x 6000
Installed size(LxWxH)	mm	1010x1215x1700	1208x1300x2082	1258X1435X2214	2055x1615x2334	2135x1665x2510	2165x1722x2575	2280x1940x2632	2291x2155x2632	2523x1410x2683
Dimension(LxWxH)	mm	1010x810x1461	1207x825x1460	1258X911X1560	1434x993x1726	1521x1045x1826	1536x1099x1866	1574x1172x1951	1580x1334x1951	1756x1282x2001
Total Weight	T	0.35	0.4	0.55	0.65	0.75	0.82	0.91	1.1	1.3

Items		Boiler Type
Items		CLSG0.35	CLSG0.046	CLSG0.58	CLSG0.7	CLSG0.92	CLSG1.05	CLSG1.4	CLSG1.75	CLSG2.1	CLSG2.45	CLSG2.8
Rated thermal power(MW)	MW	0.35	0.046	0.58	0.7	0.92	1.05	1.4	1.75	2.1	2.45	2.8
Heat Value	10⁴Kcar	30	40	50	60	80	90	120	150	180	210	240
	T	0.5	0.67	0.83	1	1.33	1.5	2	2.5	3	3.5	4
Heating Area	m²	3000	4000	5000	6000	8000	9000	12000	15000	18000	21000	24000
Rated Working Pressure	MW	0	0	0	0	0	0	0	0	0	0	0
Rated effluent temperature	ºC	85	85	85	85	85	85	85	85	85	85	85
Rated return water temperature	ºC	60	60	60	60	60	60	60	60	60	60	60
Ringelmann Number	Ringelmann black degree	<1	<1	<1	<1	<1	<1	<1	<1	<1	<1	<1
Designed heat efficiency		80	80	80	80	80	80	80	80	80	80	80
Outlet diameter	DN	65	80	80	80	100	100	125	125	150	150	150
Drainage diameter	DN	65	80	80	80	100	100	125	125	150	150	150
Discharge diameter	DN	65	80	80	80	100	100	125	125	150	150	150
Water capacity in furnace	m³	1.43	1.83	2.1	2.4	2.8	3.693	4.57	5.6	6.65	7.4	8.5
Applicable coal		A III	A III	A III	A III	A III	A III	A III	A III	A III	A III	A III
Coal Consumption	Kg/h	53	70	89	110	140	160	210	260	320	375	430
Bath Water Consumption(50ºC)	t/h	6	7.5	10	15	20	22	30	37	45	52	60
Number of people		100	120	160	250	300	360	500	600	750	860	1000
Chimney Size	mm	Φ165 x 6000	Φ219 x 6000	Φ219 x 6000	Φ219 x 6000	Φ273 x 6000	Φ273 x 6000	Φ325 x 6000	Φ325 x 6000	Φ325 x 6000	Φ325 x 6000	Φ377 x 6000
Installed size(LxWxH)	mm	2879x1470x2942	3037x1570x3085	3268x2601x3168	2055x1615x2334	4430x2970x3440	4818x2975x3251	5300x3204x3299	6000x3755x3300	6038x3796x3340	5308x3634x3300	6949x3755x3340
Overall dimension(LxWxH)	mm	2074x1323x2100	2193x1444x2250	2258x1483x2234	1434x993x1726	3320x1800x2395	3710x1805x2351	4138x1809x2383	4575x2056x2384	4606x2200x2385	5111x2056x2385	5509x2039x2385
Weight	T	1.8	2.3	2.6	3.2	4.3	5.5	7.2	7.6	8.8	9.5	11.8

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Function:	Hot Water Boiler
Fuel:	Coal-Fired
Installation:	Packaged Boiler
Structure:	Water Tube
Media:	Hot Water
Water Circulation:	Natural Circulation
Drum Placement:	Horizontal Boiler
Pressure:	Pressure
Manufacturing Level:	A
Burning Style:	Chamber Combustion Boiler
Usage:	Home

Qingdao Braitway International Trade Co., Ltd. is located in Qingdao, Shandong Province, China. The city is known for beer, sea foods and the beautiful natural and historical views. It was the city where sailing games were held for the 2008 Beijing Olympics. Besides, it has many famous home appliance manufacturers and high-tech industries. Based on the highly developed manufacturing industries, Machinery and Equipment enterprises have been more and more important in the economy growth. Moreover, it is the most important port in north of China, so the logistics and ocean transportation are very successful.
With such favourable conditions, the company aims at providing clients with professional solutions and considerate services. We can find the suitable suppliers from all over China, give professional business and product solutions, and provide excellent export services.
Our business scope mainly focuses on the following:
- Boilers and components, accessories
- Agriculture machinery
- Grain processing machines
- Other energy-saving and environment friendly equipments for various industries
The company has cooperated with many clients both from Europe, Asia and America, and has obtained consistently high praise from our customers since it was set up. We sincerely welcome you to visit our company or contact us for cooperation!
