Vipeak Portable type series mobile crusher is developed according to novel series design idea of stone crushing equipment, which expands the concept field of coarse crushing and fine crushing. Its design idea is based on the requirements of clients, which clears faults of the crushing place, surroundings and the complex basic configurations. This series mobile crusher really supply simpler, higher efficient lower cost machines for clients.
Vipeak Heavy Industry Company manufacture four kind of mobile crusher as below:
1. Jaw Crusher Series Mobile Crusher;
2. Impact Crusher Series Mobile Crusher;
3. Cone Crusher Series Mobile Crusher;
4. YGFS Various Combined Crusher Series Mobile Crusher.

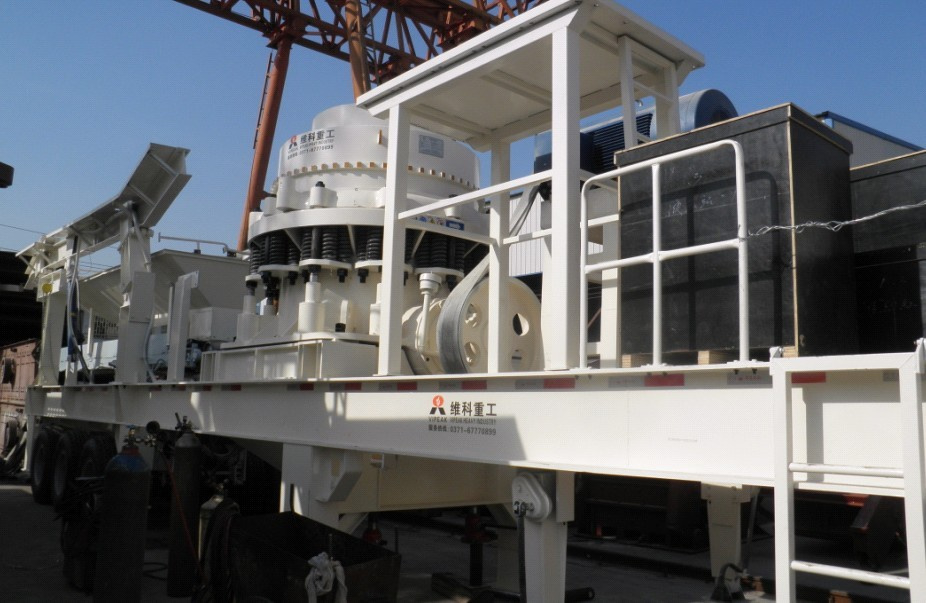

Now I would like to recommend you the cone crusher series crusher.
Advantage of Cone Crusher Series Mobile Crusher:
1. Provide reasonable product selection and design,
2. Scientific workshop manufacturing arrangements,
3. Strict production process,
4. On time delivery.
Cone Crusher Series Mobile Crusher component:
1. Belt Conveyor;
2. Vibrating Screen;
3. Motor Of Vibrating Screen;
4. Cone Crusher;
5. Motor Of Cone Crusher;
6. Electronic Switch Box.
Model and specification of main unit:
1. Model M3S1548Y55 main unit Specification:
Length L1 (mm): 13000;
Width B1 (mm): 2550;
Max. Width B2 (mm): 2800;
Height H1(mm): 4300;
Max. Height H2 (mm): 14000;
Heigth of Belt Conveyor (down) H3 (mm): 4000;
Weight (t): 43.
Wheel: Paratactic double axles.
Parameter Model M3S1548Y55:
Vibrating screen: YZS1548;
Cone crusher Model: PYB900;
Belt conveyor (down): B500X7M;
Extended conveyor: Adapting;
Capacity: 50-90 t/h;
Power: 75 KW.
2. Model M3S1848Y90 main unit Specification:
Length L1 (mm): 13000;
Width B1 (mm): 2800;
Max. Width B2 (mm): 3000;
Height H1(mm): 4500;
Max. Height H2 (mm): 6700;
Heigth of Belt Conveyor (down) H3 (mm): 4000;
Weight (t): 47.
Wheel: Paratactic double axles.
Parameter Model M3S1848Y90:
Vibrating screen: YZS1848;
Cone crusher Model: HCS-90;
Belt conveyor (down): B650X7M;
Extended conveyor: Adapting;
Capacity: 65-130 t/h;
Power: 99-134 KW.
3. Model M3S1860Y160 main unit Specification:
Length L1 (mm): 14000;
Width B1 (mm): 2800;
Max. Width B2 (mm): 3000;
Height H1(mm): 4500;
Max. Height H2 (mm): 6700;
Heigth of Belt Conveyor (down) H3 (mm): 4200;
Weight (t): 53.
Wheel: Paratactic tri- axle.
Parameter Model M3S1860Y160:
Vibrating screen: YZS1860;
Cone crusher Model: CS-160;
Belt conveyor (down): B650X8M;
Extended conveyor: Adapting;
Capacity: 110-455 t/h;
Power: 212.5-220.5 KW.
4. Model M3S2160Y220 main unit Specification:
Length L1 (mm): 14000;
Width B1 (mm): 3000;
Max. Width B2 (mm): 3200;
Height H1(mm): 4500;
Max. Height H2 (mm): 6700;
Heigth of Belt Conveyor (down) H3 (mm): 4200;
Weight (t): 58.
Wheel: Paratactic tri- axle.
Parameter Model M3S2160Y220:
Vibrating screen: YZS2160;
Cone crusher Model: HPC-220;
Belt conveyor (down): B800X8M;
Belt conveyor: B800X11M;
Extended conveyor: Adapting;
Capacity: 140-330 t/h;
Power: 257.5-264.5 KW.
5. Model M3S1848Y90Z main unit Specification:
Length L1 (mm): 18000;
Width B1 (mm): 2800;
Max. Width B2 (mm): 3000;
Height H1(mm): 4500;
Max. Height H2 (mm): 6700;
Heigth of Belt Conveyor (down) H3 (mm): 4000;
Weight (t): 55.
Wheel: Paratactic quarter- axle.
Parameter Model M3S1848Y90Z:
Vibrating screen: YZS1848;
Cone crusher Model: HCS-90;
Belt conveyor (down): B650X7M;
Belt conveyor (Up): B650X16M;
Belt conveyor: B650X10M;
Extended conveyor: Adapting;
Capacity: 65-130 t/h;
Power: 112.5-147.5 KW.
Remarks: Self-loading.
Welcome to inquiry!
Parameter
Model |
Length
L1(mm) |
Width
B1 (mm) |
Height
H1(mm) |
Max.
height
H2(mm) |
Max.
width
B2(mm) |
Belt conveyor
(down)H3(mm) |
Wheel |
Weight
(t) |
M3S1548Y55 |
13000 |
2550 |
4300 |
14000 |
2800 |
4000 |
Paratactic double axles |
43 |
M3S1848Y90 |
13000 |
2800 |
4500 |
6700 |
3000 |
4000 |
Paratactic double axles |
47 |
M3S1860Y160 |
14000 |
2800 |
4500 |
6700 |
3000 |
4200 |
Paratactic tri- axle |
53 |
M3S2160Y220 |
14000 |
3000 |
4500 |
6700 |
3200 |
4200 |
Paratactic tri- axle |
58 |
M3S1848Y90Z |
18000 |
2800 |
4500 |
6700 |
3000 |
4000 |
Paratactic quarter- axle |
55 |
M3S1860Y160Z |
18000 |
3000 |
4500 |
6700 |
3000 |
4200 |
Paratactic quarter- axle |
61 |
M3S2160Y220Z |
18000 |
3000 |
4500 |
6700 |
3200 |
4200 |
Paratactic quarter- axle |
66 |
