Main Technical Characeristic:
The whole production line of QT10-15 Block Making Machine consists of four parts: batching& mixing system, forming system, automatic transferring system and Cubering system which are controlled automatically, with PLC control board separately.
The production capacity depends on this machine and it is also the essential part of the whole production line. You can change moulds on this part to make different shapes of concrete blocks, bricks, colored-paving stones and curbs.
Spare Parts Brand:
All electrical components are famous brand Germany Simens & Japan Mitsubishi & Omron, France Schneider, ABB
Mould Description:
1. Mould made by heat treatment, carburization process to enable long life span, above 100,000 times usuage.
2. By replacing different moulds, thus enable one block forming machine can make different bricks of various application, such as hollow block, solid block, paver, interlocking brick, curbstone, grass brick, slope protection bricks, cellular bricks, each the dimension also can varies.
3. Press head adopts mechanism,electric and hydraulic drive synchronously. Guarantee each formed bricks the same height with very slight errors.
4. Cutomized made mould. Customer send requirement or drawing, forwarding to our engineer drawing -feedback to customer rechecking and confirmation-fix mould designation before manufacturing.

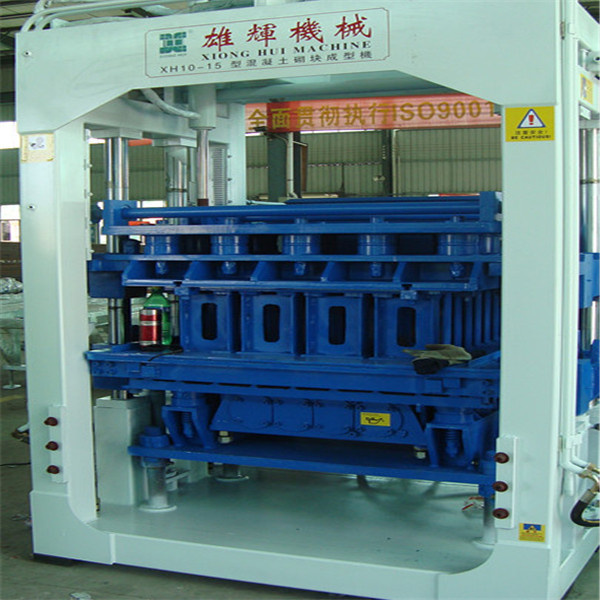

The Production Capacity of XH 10-15 Block Making Machine:
The XH 10-15 Block Making Machine can make various designs of concrete blocks, bricks, colored paving-stones and curbs only by changing the mould. And all moulds can be made according to customer's drawings.
| Specification & capacity of main products |
| Items | Size(l*w*h) | PCS./mould | Pcs./hour | Pcs./8hour | Pcs/year (300days) |
| Hollow blocks | 390*190*190mm | 10 | 2400 | 19200 | 5760000 |
| Perforated blocks | 240*115*90mm | 24 | 5760 | 46080 | 13824000 |
| Solid bricks | 240*115*50mm | 52 | 12480 | 99840 | 29952000 |
| Paver | 200*100*60mm | 28 | 6720 | 53760 | 16128000 |
| Technical data |
| Dimension | 12800×3000×2800 mm |
| Rating pressure | 21MPa |
| Vibration | Table vibration |
| Vibration frequency | 2800- 4500r/min |
| Pallet size | Bamboo 1080×850× 25 mm |
| Pallet size | PVC 1080×850× 25 mm |
| Pallet size | Wooden 1080×850×25mm |
| Cycle time | 15~25Sec. |
| Power | 43.5 KW |
| Weight | 13,80 KG |
| Raw Material | Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, haydite, wet ash in power plants, dry ash, hybrid ash, boiler slag, spontaneous combustion coal gangue, mountain flour, mine tailings, scoria, carbide slag, water-granulated slag, wind-granulated slag, dry slag, smelting slag, sulfuric acid residue, phosphate fertilizer slag, caustic sludge, laterite in aluminium manufacturers, electrolytic copper slag, stonework waste, potsherd, waste brick powder, construction waste, etc (among which one or two kinds are enough. |
| Finish Products | baking-free bricks, interlocking, garden & landscaping bricks, slope blocks, brick for parking area, squares, hollow block, masonry products, porous brick, perforate brick, cellular bricks, pavers and so on |
| Products Application | Suitable for buildings, road paving, squares, gardens, parking area,landscaping, city constructions, etc. |
Anotasi :
1. Xionghui Machinery cetak bata biasa atau bata ringan?
Bata biasa.
2.Ada branch di Indonesia, di mana?
Iya,kami ada branch dan techniks di Kota Jakarta.
3. Harga Berapa, meliputi apa saja?
Tolong kirim email ke kami
4. Itu mesin bisa utk bikin paving dan curbs jgn?
Iya, pasti.
5. Harga tetap? Atau ada tambahan utk cetakan? Per cetakan bayar Brp?
Cetakan ada satu free, satu cetakan harganya itu USD3600.
6. Selamant Datang ke Quanzhou XiongHui Machinery Industry Trade Co., Ltd.
Introduksi:
1. Quanzhou Xionghui Machinery Industry Trade Co.,Ltd parbrik tempat di china untuk mesin cetak bata.
2. Produksi waktu adalah tigapuluh hari dan mesin bisa membayar. Kelengkapan mesin kami memakai internasional merek terkenal seperti Simens,Mitsubishi untuk stabil kualitas.
3. Dan kami ada pertanyaan untuk anda: Berapa ukuran tanah kamu sekarang ada untuk bikin bata? Ada foto drawing dan ukuran bata yang kamu mau memproduksi?
4. Kalau ada pertanyaan untuk suluruh termasuk teknik, harga mohon kontak kami. Kalau kamu ada waktu, Selamat Datang ke China ,selamat datang ke Pabrik kami.
Quanzhou XiongHui Machinery Industry Trade Co., Ltd covers an area of more than 40,000 square meters, in which the production workshop up to 25,000 square meters. Company's engineers and technicians are professional and have lots of solid basic theory and rich pratical experience. Our company has gained several products patents , passed the ISO9001-2008 International Quality Management Certification, and achieved many national invention and utility model patents, such as "National high and new technology enterprise", "China top 10 famous brands of block froming machine", "Quanzhou city famous trademark", "Quanzhou city comply with contract and value credit enterprises" and so on.
Our company has insisting on the principle of Quality First as its necessary development condition for many years, and the management philosophy is customer oriented, services first. Our company products have been sold to home and abroad,such as India, Kazakhstan, Sri Lanka, Libya, Zambia, Nigeria and other dozens of countries and areas.
We are sincerely looking forward to corportation with all customers from home and abroad and join together in creating a bright future.
QuanZhou XiongHui Machinery Industry Trade Co., Ltd. is located in the economic center in west bank of Taiwan strait in QuanZhou city, . as a professional concrete machinery manufacturer producing concrete, coal powder, building block forming machine, air brick machine, and various kinds of standard brick, road brick, brick using green area, SOD brick, nozzle brick, small-wave brick and other concrete product manufacturing enterprises.
It areas 37000 more square meters. The professional technicians have solid theoretical basis and rich experience. The company is a joint-stock enterprise co-invested by leading technicians of the company. Leading by pioneering spirit, following the operating principle of "Practicality, Dedication, Innovation", all workers and staffs of the company will provide service of "elaboration, precision, perfect" to win customers. Giving priority to high technology, and based on market orientation. The company has passed ISO9001-2000 International Quality Management Certification.
For many years, the company's products have been well-sold in both domestic and abroad markets even to Kazakhstan, Kyrgyzstan, India, Pakistan, Colombia, Zambia, Kenya, as well as some Southeast Asian countries. The customers have appraised the products of our company "never regret of choosing XiongHui products. "
