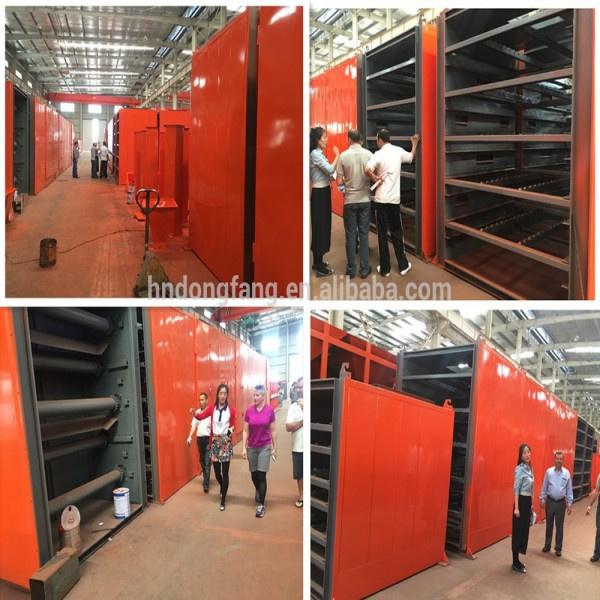

Continuous charcoal briquette drying machine
Description of charcoal briquette drying machine
charcoal briquette drying machine is a highly efficient drying system that can be used in different industry segments and production lines. The products include for example coal briquette, charcoal briquettes, biomass pellet, wood chips and other lump or solid materials. Drying temperature is adjustable according to different raw materials so it has a vast application. It has the character of high efficiency, low broken rate, stable performance,etc.
Characteristics of charcoal briquette drying machine
1) charcoal briquette drying machine made in Dongfang Factory can have various layers. Normally, three or five layers are most popular.
2) Each conveyor mesh belt layer has an adjustable-speed motor. In this way, conveyor mesh belt conveyor can be moved evenly.
3) In order to improve conveyor mesh belt conveyor's drying effect, our conveyor mesh belt dryer has many hot air pipes to ensure every place in the conveyor
mesh belt dryer can be spreaded hot air evenly.
4) charcoal briquette drying machine is not connected with heater directly. We use draught fan to suck hot air from heater and then convey hot air to drying drying part. So it is quite safe to operate conveyor mesh belt dryer.
dongfang service:
1.Delivery time: within 20 days after received your 30% down payment.
2.Warranty: One Year (Calculated from the goods arrived the destination port.) If any parts (excluding easily damaging parts) are
found defective in quality in the first year, we shall replace it frocost. After one year, parts can be replaced on favorable payment basis.
We can send our engineer to provide the installation and trial run in your place.
3.Our professional service includes: Free training, Guidance Installation and Debugging.
The working principle of charcoal briquette drying machine
Drying raw material ( such as coal briquettes, charcoal briquettes, ore briquettes, herb, etc.)was distributed onto the mesh belt conveyor evenly, and through the moving in the mesh belt dryer,
hot air will absurb inner and outer water content from drying raw material. By the way, we can adjust final raw material's water content by
adjusting mesh belt dryer's moving speed. Normally, drying raw material can move in the mesh belt dryer for 1.5-3 hours according to your requirements.
Technical parameters of charcoal briquette drying machine
Model | KHWD6 | KHWD8 | KHWD10 | KHWD12 | KHJWD16 | KHWD20 | KHWD24 | KHWD30 |
Width of mesh belt(mm) | 600 | 800 | 1000 | 1200 | 1600 | 2000 | 2400 | 3000 |
Length of drying section(m) | 6-12 | 6-12 | 6-16 | 8-16 | 8-22 | 10-26 | 12-30 | 12-40 |
Length of feeding section(m) | 1 | 1 | 1 | 1 | 1 | 1.5 | 1.5 | 2 |
Length of transmitting section(m) | 1 | 1 | 1 | 1 | 1 | 1.5 | 1.5 | 2 |
Drying area(m2) | 3.6-36 | 4.8-48 | 6-80 | 7.2-96 | 12.8-105.6 | 20-260 | 28.8-360 | 36-600 |
Layers NO. | 1-5 |
Interlamellar spacing (mm) | 400-600 |
Carrying capacity | 90-200 Kg/m2 |
Operation temperature (°C) | carbon steel≤400 C°,stainless steel≤600 C° |
Drying strength((kgH2O/h) | 5-20kg H2O/m2.h |
Heat source | hot wind,electricity,steam |
Running speed | 0.06-1m/min |
Transmission powder(kw) | 1.1-2.2 | 1.1-2.2 | 1.1-2.2 | 1.1-3 | 1.5-3 | 1.5-4 | 3-7.5 | 5-11 |
Matching equipment | conveying equipment,air heating furnace,dust removing equipment,draught fan etc |
when you need charcoal briquette drying machine ,pls tell us :
1.what is the raw material ?sawdust ,sand .coal powder ?
2.what is the start mositure and final mosture ?
3.do you need just dryer machine or a complete line ?
wait your inquiry ,also welcome to your visit at any time
