I. Characteristics and Application
It is used as the connection of computer peripheral equipment and production site as well as in appliances, instrument and automatic equipment in which the cables with shields are needed.
II. Implemented standard
Enterprise standard
III. Operating Characteristics
1. Rated Voltage: UO/U 300/500V.
2. The highest operating temperature of conductor:
PVC insulation and low halogen and low smoke flame-retardant PVC insulation: 70 and 105 two types;
PE insulation: 70; Cross-linked polyethylene: 90
Halogen-free and low smoke flame-retardant polyolefin: 70
Halogen-free and low smoke flame-retardant cross-linked polyolefin: 90 and 125 two types.
3. The lowest environment temperature: Fixed deploying -40
Non-fixed deploying -15
4. Permitted minimum bending radius:
Not smaller than 6 times the outer diameter for non-armoured, interlock or braid armoured cable
And 12 times the outer diameter for copper tape shielded or steel wire winding, steel tape wrapping
Armoured cable.
5. Flame-retardant performance
Meet GB/T 19666-2005 standard class A or class B.
IV. Main technical parameters
Property Item Unit Technical Parameters
Insulation resistance ≥ MΩ Km PVC 25 PE type 5000 (Flame-retardant type 1000)
Conductor DC resistance at 20. C Ω /km Standard cross section
Mm2 0.5 0.75 1.0 1.5 2.5
Single thread 36.0 24.5 18.1 12.1 7.41
R type 39.0 26.0 19.5 13.3 7.98
Tested Voltage V 2000 5min
Flame-retardant Characteristics A or B class(Tested according to GB/T 19666-2005 standard)
V. Basic type and product name
Type Product Name

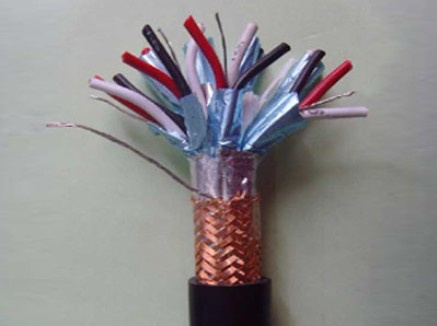

JKVVP Copper core PVC insulated and sheathed copper wire or tin plated copper wire braid shielded control cable for computer system
JKVVRP Copper core PVC insulated and sheathed copper wire or tin plated copper wire braid shielded control soft cable for computer system
JKVVP3 Copper core PVC insulated and sheathed composite aluminium-plastic tape wrapped shielded control cable for computer system
JKVVRP3 Copper core PVC insulated and sheathed composite aluminium-plastic tape wrapped shielded control soft cable for computer system
JKVVP2 Copper core PVC insulated and sheathed copper tape wrapped shielded control cable for computer system
JKVVRP2 Copper core PVC insulated and sheathed copper tape wrapped shielded control soft cable for computer system
JKVPVP Copper core PVC insulated and sheathed copper wire or tin plated copper wire braid sub plus general shield control cable for computer system
JKVPVRP Copper core PVC insulated and sheathed copper wire or tin plated copper wire braid sub plus general shield control soft cable for computer system
JKVP3VP3 Copper core PVC insulated and sheathed composite aluminium-plastic tape wrapped sub plus general shield control cable for computer system
JKVP3VRP3 Copper core PVC insulated and sheathed composite aluminium-plastic tape wrapped sub plus general shield control soft cable for computer system
JKVP2VP2 Copper core PVC insulated and sheathed composite copper-plastic tape sub plus copper tape general shield control cable for computer system
JKVP2VRP2 Copper core PVC insulated and sheathed composite copper-plastic tape sub plus copper tape general shield control soft cable for computer system
JKYJVP Copper core XLPE insulated and PVC sheathed copper wire or tin plated copper wire braid shielded control cable for computer system
Type Product Name
. Note:
1. Armour can be added when required.
2. The insulation and sheath material of the product basic type also include YJ- halogen-free and low smoke flame-retardant cross-linked polyolefin.
