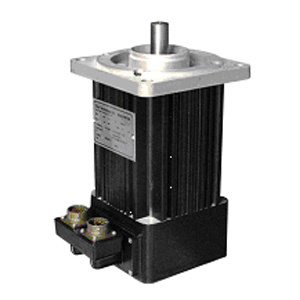

BL/BM Series brushless servo motors provide excellent performance and smooth operation, at a lower cost. High output, torque.
1. Flange Size: J6 fit, conform to DIN 42955 tolerance, class N /Per Customer requirement.
2. With Tamagawa incremental rotary encoders / /Per Customer requirement.
3. MS connector/Per Customer requirement.
4. Insulation class: F, in line with DIN 57530.
5. Seal Protection: IP65/IP67.
6. Temperature Protection: Positive temperature coefficient thermistor PTC.
7. Vibration: N-level.
- Rated torque ranging from 0.15N-m (1.3Lb-In) to 430N-m(3, 800 Lb-In);
- Speeds up to 8000 rpm meet most speed applications;
- Optimized rotor design with high energy NdFeB magnets provides high power density, low cogging performance;
- Multiple high density winding designs cover full range of global voltage capacity;
- Extra insulated stator for high voltage and current spike protection;
- 9 standard frame sizes and multiple stacks to choose;
- Low and medium inertia types for different application requirements;
- Choices of terminations, feedback devices and holding brakes to meet different system requirements;
- Selection of industry standard enclosures with NEMA and Metric mounting options;
- Rugged aluminum housings with optimized thermal path, ensure low operating temperatures
- NTC or PTC thermistor for temperature feedback;
- IP65(standard) or IP67(option) sealing for use in harsh environments;
- We provide non-standard custom motors for your special requirements.
| Model | Rated Power | Rated Speed | Rated Torque | Dimension A | Dimension C | Dimension L | Dimension H |
| (kw) | (rpm) | (N.m) | (mm) | (mm) | (mm) | (mm) |
| BL901 | 33.54 | 1200 | 213.5 | 280 | 260 | 650 | 80 |
| BL903 | 37.54 | 1200 | 239 | 280 | 260 | 730 | 80 |
| BL905 | 35.75 | 1200 | 284.5 | 280 | 260 | 810 | 80 |
| BL907 | 40.34 | 1200 | 321 | 280 | 260 | 890 | 80 |
| BL909 | 46.12 | 1200 | 367 | 280 | 260 | 970 | 80 |
Ningbo Yinzhou Longway Technology Co., Ltd. is a professional motor, machinery and electronic products manufacturer in China. Since day one after its establishment, our company has spared no efforts in developing new products and optimizing them. A comprehensive and consistent quality system has been since long established, from design to production, form marketing to after sale service. Our company attaches great importance to employee training. It pays off when the quality of each and every one of our employees keeps improving. Now the motor products include PMDC motors, brushless motors, stepping motors, AC and DC gear motors, synchronous motors, brushless servo motors. Most of products are CE, UL approved. We can also complete OEM/ODM orders in accordance with clients' specific requirements, designs and samples.
The advanced technologies of design and manufacturing were adopted from Germany. We take pride in the CAD/cam mould tooling center and the testing center. We enjoy an excellent reputation in Europe, America, Australia, Middle East, and southeast Asia as well as in China.
"satisfactory products plus satisfactory services" makes our success happen. We sincerely hope to have and also thank for valuable supports and cooperation from all friends in the world.
