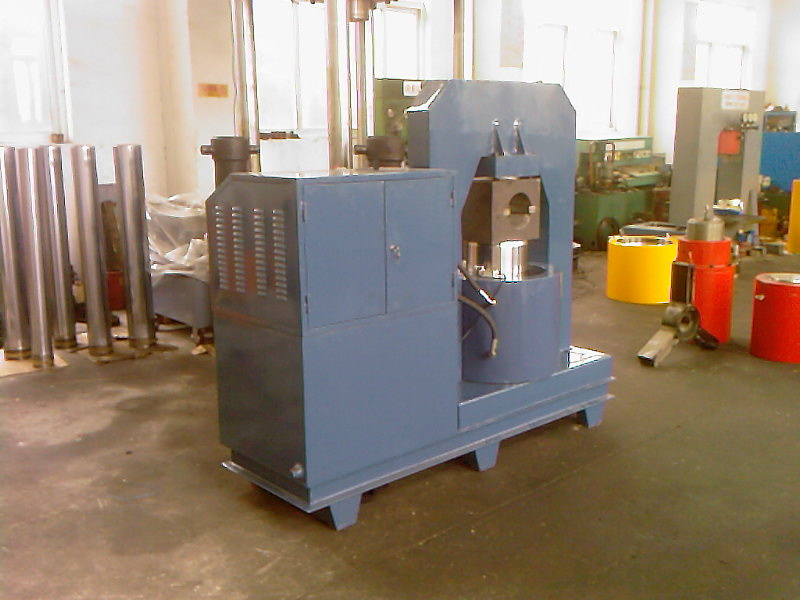

Standards based MT/T318.1-1997 content of the coal industry, combined with precision test equipment, in line with simple, compact equipment, long service life, the design principles of continuous operation, the machine uses a combination of hydraulic and mechanical transmission steel skeleton structure, can be based on five different arbitrary replacement drum samples. Company SJDN-02 type automatic correction based on the increase and hydraulic locking device systems, machine operation and detect more perfect. , By the time the meter electric drive distribution components, actuators, computers, PLC, printers, etc., through the appropriate combination of the above devices, data acquisition, preservation. Test equipment to do the whole user-friendly design. The product is a dynamic endurance strength testing machine meets MT/T318.1-1997 "coal conveyor belt mechanical joint technical conditions" in the conventional dynamic endurance test strength test requirements.
Structure:1, the mechanical part a, a fixed cylinder, hydraulic mobile drum set, b, mechanical transmission device, c, joists device, d, racks, e rotary arm hang (with user can reduce operator workload), e automatic correction device. 2, the hydraulic part a, hydraulic station, b, a hydraulic locking device, c, tensioning cylinder, d, solenoid valve. 3, electric control part a, the operation control computer system, b, displays the printing system, c, data acquisition system, d, electrical drive systems, e, a measuring instrument, the displacement sensors, f automatic correction device
The maximumsampleperimeterdetection ring |
15000mm |
The maximumtravel distancetensioning roller | 2000mm |
| Tensionmeasurement accuracy |
≤0.5% |
Maximum tensileforce sample | 20 - 250KN (can be set)
(Based flame with maximum tensile strengthST/S2800, specimen width 300mm calculate20% × 2800 × 0.3 = 168KN) |
| Specimen width |
300mm |
Line speedadjustment range |
1m/s-6m/s |
Turnover ofdetection error |
≤0.1% |
Maximum power consumption | 14.8KW |
| Roller speed | 1.0-100R | The maximumamount ofcorrection |
≤30mm |
Main motor power |
11KW |
Dimensions | 7500 (length) × 2600 (W) 3900 (H) |
The company owns powerful technical strength, advanced technics, the best design and strict quality guarantee system, which owns a high repution in China rubber machinery industry.
The main products are plate vulcanizing press, open rubber mixing mill, banbury intensive kneader, extruder, rubber and reclaimed rubber machinery, within the (outside) tires complete set of machinery.The products have been sold to more than 20 provinces and cities in China and have been exported to more than 10 countries and areas.All of the products are designed visually by three-dimension CAD design, quickly built module, limited element analysis, analogue action and interfering inspection.The combination of three-dimension CAD system and internet guarantees the synchronization with internatinal advanced technology.The combination of three-dimension CAD and CNC numeral process center realizes the transit from traditional manufacture to modern three-dimension manufacture.At the same time, the company keeps good contact with several universities and research institutes.
The company takes"To live by quality, To develop by reputation, To innovate by science and technology, To keep improving all the time"as managing ideas, and insists on the principle of "Quality is the first, Reputation is the?First, Client is the first" that will provide you the best service.
