Product Specifications
Prod Model: |
TD 75 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Certificate: |
ISO; DIN; GB, Cema, ASTM, Ash |
Belt Width: |
500mm ~ 1400mm |
Belt Speed: |
0.8m/S ~ 2.5m/S |
Conveying Capacity: |
100t/H ~ 1200t/H |
Motor: |
Sew |
Power: |
2.2kw ~ 45kw |
Voltage: |
Requirement |
Material Temperature: |
-20 ~ +40 Degrees |
Instalation: |
Engineers to Guide |
Maintance: |
Easy and Convenient |
Product Description
1. Outline:

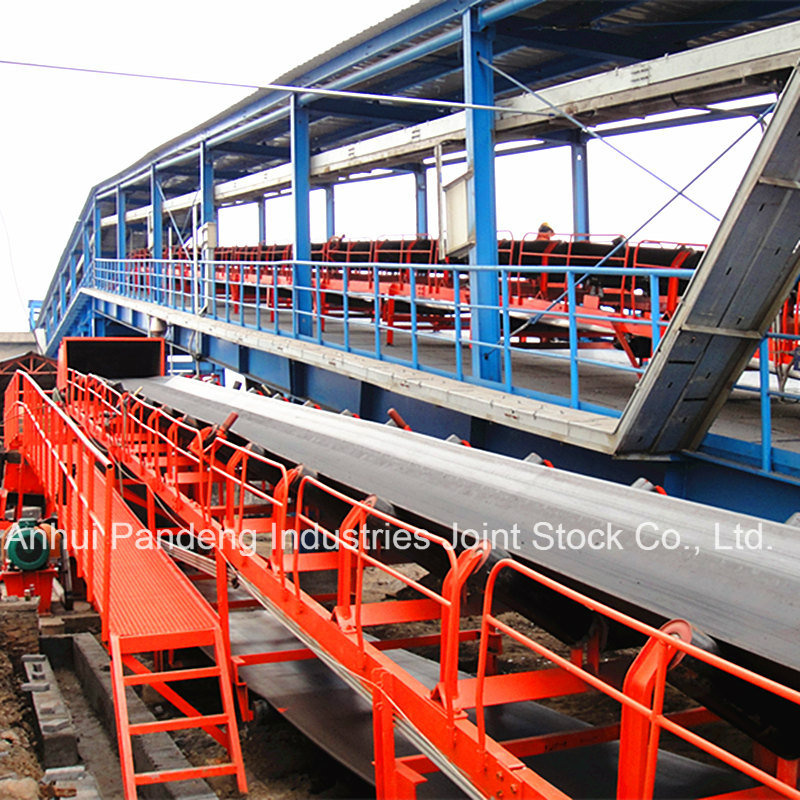

(1) TD75 fixed belt conveyor is a product of general-purpose series, it is the continuous conveyor equipment which uses cotton, nylon or polyester canvas and steel cable core conveyor belt as the traction member
(2) According to process requirements for conveyance, either a single unit can be used to convey goods, or multiple units can be integrated to form combined conveying system or form a horizontal, vertical or inclined conveying system together with other conveyor equipment in order to meet the needs of production lines of different arrangement.
2.Features:
(1)Large conveying capacity
(2)Simple structure
(3)Low cost
(4)Convenient maintenance
(5)High degree of component standardization
(6)Can meet the requirements for horizontal conveying, elevation, upward and downward conveying
(7) Can adopt combined conveying mode of concave and convex curved segment, concave curve section or straightline segment
(8)Idler of high seal, long life and big velocity.
(9)High Speed Backstop of low limited-moment.
(10)Large Inclination Crossing Head Downward Belt Conveyor
3.Application:
TD 75 fixed belt conveyors are widely used in metallurgy, mining, coal, ports, power plants, building materials, chemicals, light industry, petroleum and other industries. It can transport various bulk material whose density is 500-2500kg/m³.
4.Parameters:
Section type | Belt speed m/s | Belt width B (mm) |
500 | 650 | 800 | 1000 | 1200 | 1400 |
Conveying capacity Q (t/h) |
Troughed | 0.8 | 78 | 131 | - | - | - | - |
1.0 | 97 | 164 | 278 | 435 | 655 | 891 |
1.25 | 122 | 206 | 348 | 544 | 819 | 1115 |
1.6 | 156 | 264 | 445 | 696 | 1048 | 1427 |
2.0 | 191 | 323 | 546 | 853 | 1284 | 1748 |
2.5 | 232 | 391 | 661 | 1033 | 1556 | 2118 |
3.15 | - | - | 824 | 1233 | 1858 | 2528 |
4 | - | - | - | - | 2202 | 2996 |
Parallel | 0.8 | 41 | 67 | 118 | - | - | - |
1.0 | 52 | 88 | 147 | 230 | 345 | 469 |
1.25 | 66 | 110 | 184 | 288 | 432 | 588 |
1.6 | 84 | 142 | 236 | 368 | 553 | 753 |
2.0 | 103 | 174 | 289 | 451 | 677 | 922 |
2.5 | 125 | 211 | 350 | 546 | 821 | 1117 |
5.Our service
(1)Design and select suiable equipment
(2)Layout draw, foundation draw and detail equipment manual. Timely report your production schedule and photos for keeping monitoring.
(3)Shipping
(4)After-service, can dispatch engineer to the site to guide the installation, commissioning, operation etc if client need.
Anhui Pandeng Industries Joint Stock Co., Ltd belongs to Anhui Pandeng Group established since 1974, which has total capital of 106000000USD, registered capital of 58000000USD, catches the size of 463500 square meters, owns over 1000 workers. Group owns three famous brand of "PANDENG", "OUNA", "KINSON".
We are specialized in developing, designing, manufacturing bulk material handling system, like belt conveyor, pipe conveyor, bucket elevator, screw conveyor, conveyor roller, idler, pulley, hydraulic coupling, backstop, various kinds of conveyor belt etc nearly all products related to the conveyors. The products mainly applied to mining, metallurgy, power generation, heating, sea port, grain, chemical etc industries.
Our group has 5 subsidiary corporation, owns over 100 patents. Two sub-companies have attained ISO9001: 2008 Quality Management System Certificate, MA certified enterprises, Member of China Heavy Machinery Industry Association, Bank AAA credit class enterprise, China top 10 conveying machinery industries etc. During 40years, we served many Global 500 companies, such as SINOPEC, CNPC, APP, SHENHUA GROUP CORP, SGCC, Conch Group, CHALCO, Baosteel, etc.
Professional design, developing and manufacturing, installation&commissioning, after-service of Anhui Pandeng Group has helped us to win the China famous Bulk Material Handling system leading position. We also built stable and good cooperation relationship with over 30 Design&Research Institutes including Beijing lifting conveying machinery design&research institute.
Welcome to visit Anhui Pandeng Group!
