Product Description
Fully Insulated Female Disconnectors
Special Features:
Made by high purity copper and brass
Tin plating: Corrosion Resistance
Certificate: ISO9001 SGS CE CQC
Color: Red/ Blue / Yellow
Type: BN
Thickness: 0.6mm0.7mm 0.8mm 1.0mm or per customer's requirements
Material: Brass
Material of insulation: PVC & NYLON & Heat Shrinkable Tubes
Wire section: A. W. G. 10-12 & 14-16 & 16-22
Color: Red /Blue /Yellow
Feature:
1.100% tested before delivery.
2. Guarantee the prompt delivery. The goods will be delivered within 3 days and the customized products will be delivered as arranged date.
3. We are glad to makes samples according to our customers' drawing, specifications and samples.
4. OEM is available.
5. Free to contact us, we can offer you the best service, top-quality goods, competitive price and timely delivery.
Shipping And Payment Terms:
Delivery Time: 3-30 Days Based On Finally Order Quantities
Payment Terms: TT /L/C
Less Than 3000USD. 100% TT In Advance
More Than 3000USD, TT30% Deposite, The Balance See Copy Of B/L
Bigger Order: TT Or L/C
Contact With Us:
Ms: Dancey Xiao
http://mogen.gmc.globalmarket.com
http://mogenelectric.en.made-in-china.com
Catalog: http://www.china-morgan.com/proimg/1.pdf
Certificates: CE RoHS ISO9001 CQC UL SASO
Our Service
1. Your inquiry related to our products or prices will be replied in 24 hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM&ODM, any your customized product we can help you to design and produce
4. Distributorship are offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
6. All the products must through 24 hours aging before delivery to ensure the quality again.
Production Range:
( 1 )CAPG Copper-aluminum Aluminum Combined Clamp
( 2 )Insulation spade terminals
( 3 ) Non-insulation spade terminals
( 4 )Terminals insulation
( 5 ) Insulated ring terminals
( 6 )RNB non-insulated ring terminals
( 7 )Insulated blade terminals
( 8 ) Insulated pin terminals
( 9 ) Insulated male butter dis connectors
(10) Insulated female dis connectors
(11) Insulated male dis connectors
(12) Fully vinyl Insulated dis connectors
(13) Insulated vinyl butt connectors
(14) Non-insulated cord end terminals
(15) Crewel tube pre-insulating terminals
(16) Insulated cord end terminals
(17) Wire connectors
(18) Male and female full-insulating joints.
(19) Flag shape female insulated joints.
(20) Long fully insulated middle joints.
(21) Water proof: Heat shrink butt connectors.
(22) Among the long shape entire insulation attaches.
(23) Bullet-shaped male and female-insulating joins.
(24) Fast connecting joints.
(25) DTL Copper-aluminum connecting terminals.
(26) DT(G) JG Copper connecting terminals.

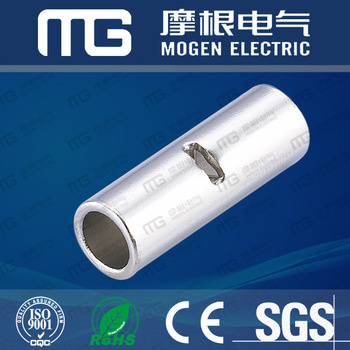

| Item NO | cable size | dimension(mm) |
| A.W.G | mm2 | Dφ | dφ | L |
| BN 1.25 | 22-16 | 0.5-1.5 | 3.3 | 1.7 | 15 |
| BN 2 | 16-14 | 1.5-2.5 | 4 | 2.3 | 15 |
| BN 3.5 | 14-12 | 2.5-4 | 5 | 3 | 15 |
| BN 5.5 | 12-10 | 4-6 | 5.5 | 3.4 | 15 |
| BN 8 | #8 | 10 | 7.1 | 4.5 | 21 |
| BN 14 | #6 | 16 | 9 | 5.8 | 26 |
| BN 22 | #4 | 25 | 11.4 | 7.7 | 29 |
| BN 38 | #2 | 35 | 13.3 | 9.4 | 32 |
| BN 60 | 1/0 | 50 | 15.4 | 11.4 | 36 |
| BN 70 | 2/0 | 70 | 17.5 | 13.3 | 37 |
| BN 80 | 3/0 | 95 | 19.4 | 14.5 | 38 |
| BN 100 | 4/0 | 120 | 22 | 16.4 | 38 |
| BN 150 | 250-300MCM | 150 | 26.5 | 19.5 | 54 |
| BN 180 | 300-350MCM | 185 | 28.5 | 21 | 57 |
| BN 200 | 400MCM | 240 | 32.5 | 24 | 63 |
| BN 325 | 500-600MCM | 300 | 37 | 28 | 72 |
