Copy Paper Making Machine
| Price: |
US $ 500000-1000000/Set |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
2400mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Process: |
Pulp Making +Paper Machine +Converting |
| Usage: |
Office Use Paper, Printing, Writing |
| Type: |
Cultural Paper |
| Sheet Former Type: |
Fourdrinier Wire |
| Paper Thickness: |
Normal Specification Paper |
| Condition: |
New |
| Certification: |
ISO |
Product Description

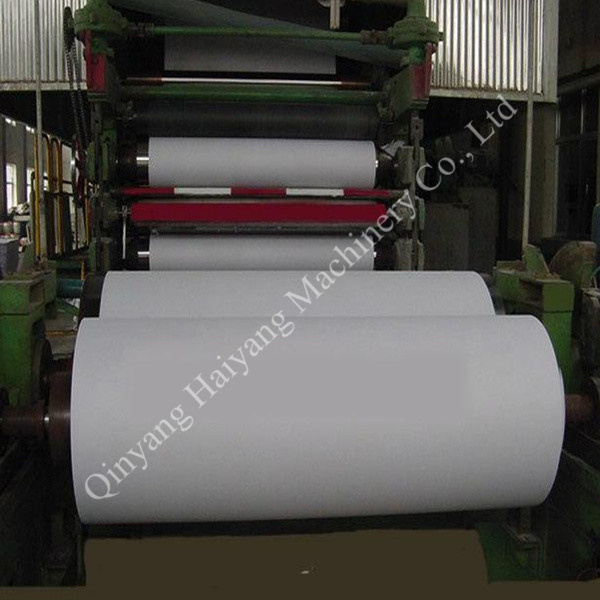

2400mm Fourdrinier copy paper making line with 25tpdtechnical parameter| 1. Raw material | wood pulp |
| 2. Output paper | writing paper |
| 3. Output paper weight | 40-80gm2 |
| 4. Capacity | 25Tpd |
| 5. Fourdrinier wire width | 2800mm |
| 6. Net paper width | 2400mm |
| 7.Working speed | 150mmin |
| 8. Designing speed | 200m/min |
| 9. Rail gauge | 3100mm |
| 10. Drive way | Alternating current frequency conversion ,sectional drive |
II. The structure and specifications of main equipment 1. Fourdrinier part: equipped with 10.83m fourdrinier wire 1 set, the fourdrinier table is coated by stainless steel. Φ700mmvacuum couch roll 1 pc. Stainless steel head box.
2. Press part: Φ600mm×2800mm×3100mm stone roll 1 pc, Φ550×2800mm×
3100mm rubber roll 1 pc, pneumatic pressure device.
3. Dryer part: Φ2000mm×2800mm×3100mm alloy dryer can 1 set, Φ1500mm×2800mm×3100mm dryer can 14 sets, arranged by 1+8+6, the second dryer can has Φ450mm×2800mm×3100mm reverse press roll 1 pc, Φ550mm×2800mm×3100mm touch roll 1 pc, pneumatic pressure device. Rubber shore hardness 90ºC±2. Multi-cylinder part has top and bottom dryer fabric devices.
4. Calendaring&winding part: three-roll calender 1 set, cylinder winding machine 1 set.
5. Drive&control part: the drive part is equipped with Φ500 speed reducer 1 set. Alternating current frequency conversion adjustable speed, sectional drive. Full digital closed loop control system
contact & negotiate!!! John:8615638823327
company:we are a professional paper machine manufacturer,here,you can get the whole production line,we promise you good solution cause that is what we pursue
so welcome to visit and negotiate Perfect service:1.technical consultation
2.Plant design
3.installation and test run
4.training engineers and workers
5.good and long time after-sale service
The business process
1.send your requirements:raw material,capacity,paper grammage
2.we make the solution to you
3.come visit and negotiate
4.sign contract
5.first payment
6.production
7.pay spare money
8.delivery
9.installation ,training,test run
10.production consultlation
We have a large scale of products regarding paper machinery, including:
A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressure
screen, screen basket, pulp pump etc.)
B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier paper
machine, head box, cylinder mould, dryer cylinder, roller etc.)
C.Paper making finished devices (Paper calender, pope reel,size press,
paper rewinder etc.)
Meet customers' requirements and exceed customers' expects.
We wish to found long-termcooperation with your company
Our company has over 420 employees. There are five factories in China with the total area of 20, 000m2, it has passed the ISO14001 international authentication
Our products include paper making machines, parts and paper processing machines such as kraft paper machine, tissue paper machine, cultural paper machine, fiber separator, hydrapulper, rewinder, napkin folder, tisue slitter and ao on. They have been exported to more than 8countries and regions, such as America, Russia, Brazil, Indonesia, Fiji, etc. Relying in perfect & advanced technology, sincere service and inexpensive products with high quality, we have won the recognition of international market and clients
Why choose us
Our company gathers a technique team of engineers and experts with over 30 years' experience which helps us be a professionall on all kinds of paper making machines and make us competitive on the market. We focus on quality and customers' need and improve our technology and service continually. We believe our devotion to work will help us to achieve global leadership in providing first-class products and superior quality services to customers around the world
Our advantages
Technical advantage
1. Experiences producing team
2. Advanced technological strength
Product advantage
1. Through the international authentication
2. Same material with most preferential price
3. A lot of varieties for the customer to choose
Service advantages
1. Technical consultation
2. Project evaluation
3. Detailed design of factory
4. Installation and test the whole production line
5. Training engineers and workers
6. Supplying spare parts for long time
