Product Specifications
Prod Model: |
OBM-9800 |
Markets: |
Southeast Asia,Eastern Asia |
Material: |
ABS + Silicone |
Charging Indicator: |
LCD |
Light Source: |
650nm |
Type: |
Data Collector |
Product Description

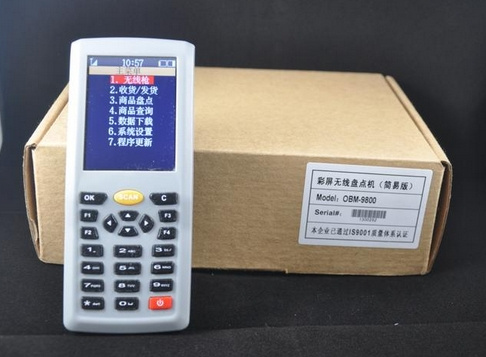

Color Screen Wireless Data Collector with Cordless Scanner (OBM-9800)
Features:
Cordless Scanner and Wireless Inventory handheld functions integrated;
Item name displays right after the barcode is scanned;
Program refreshing supported;
TXT or EXCEL file created as soon as data is uploaded;
Use as a USB flash disk(optional).
About Us:
Easytech is a technology-driven company specialized in the Auto-Identification (Barcode & RFID) industry.
Products include Wireless/Cordeless/Corded Laser Barcode Scanner, CCD Bar code Scanner, Barcode
Data Terminal, Stock Counter, Inventory Control Handheld, Mobile POS, RFID Data Terminal and RFID
Reader.
Main Unit |
Model |
OBM-9800 |
Color |
Frosted white |
CPU speed |
48MHz |
Memory |
RAM |
64KB |
ROM |
16MB (optional 32MB) |
SCREEN |
size |
2.8" |
color |
16bit true color(65536 colors) |
resolution |
240*320 TFT |
Physical |
Battery |
Rechargeable Lithium-ion (3.7V,2800mAh) |
Working time |
8 hours |
Standby |
15 days |
Dimension |
150mm×63mm×31mm |
Material |
ABS + silicone |
Charging indicator |
LCD |
Working current |
190mA |
Standby current |
40mA |
EMC |
CE & FCC DOC compliance |
Scanning |
Light Source |
650nm |
Decode Rate |
45±2 scans / second |
Resolution |
4mil |
Scan width |
20mm@window, 100mm@100mm |
Depth of Field |
0~250mm(0.33mm,PCS 90%) |
indicator |
beeper,LCD |
Barcode supported |
EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codaber,Industoal 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI |
Transmission |
cable |
USB 2.0 |
wireless |
433MHz (max. 300m) |
Environment |
Working Temperature |
0~45 |
Storing Temperature |
-20~60 |
Humidity |
5%~95% |
Lumination |
Max.5,000 Lux(Fluorescence) |
