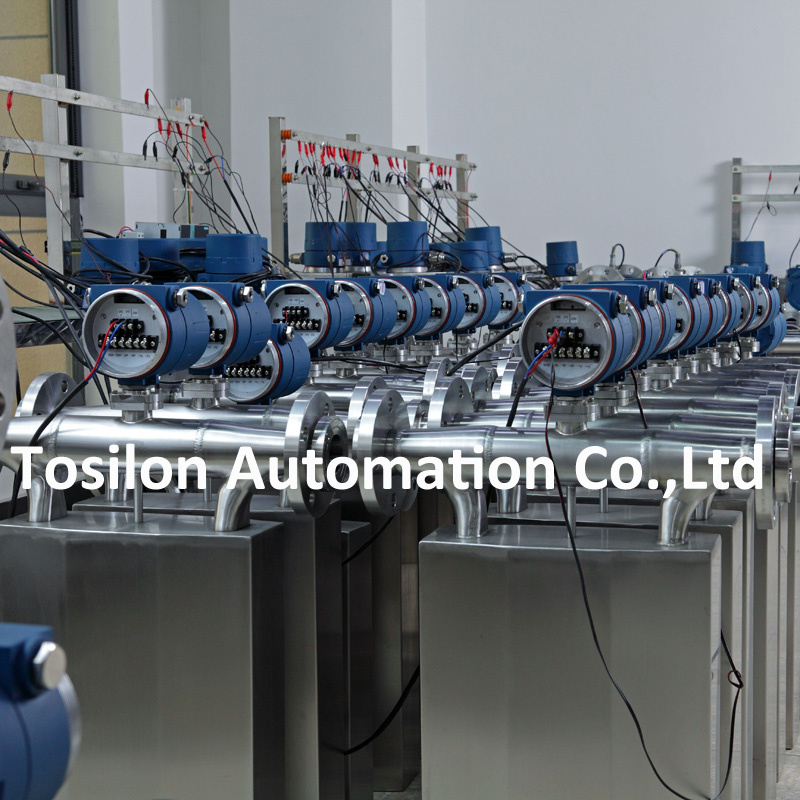

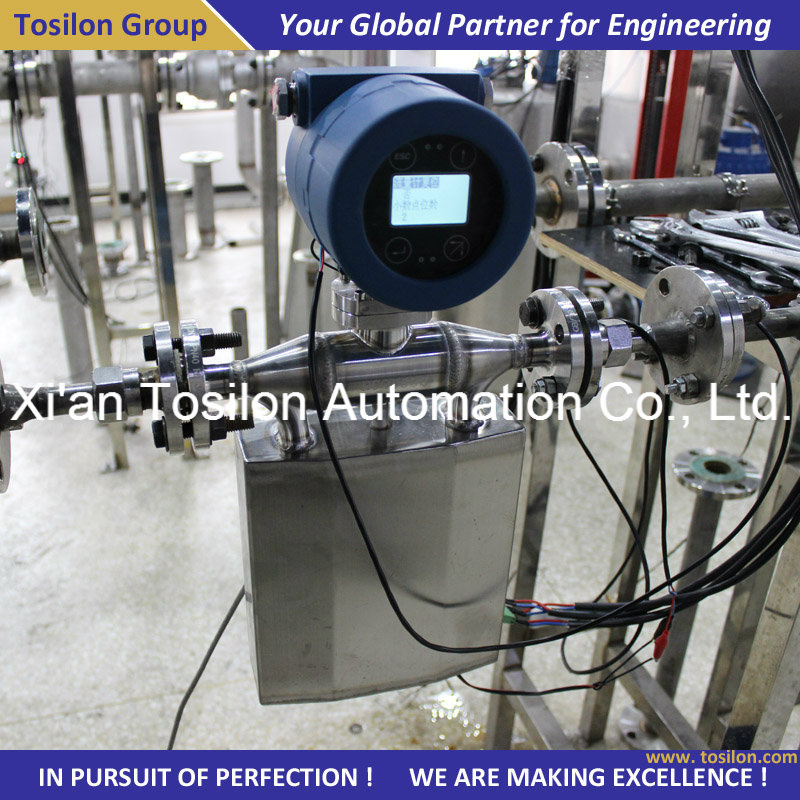

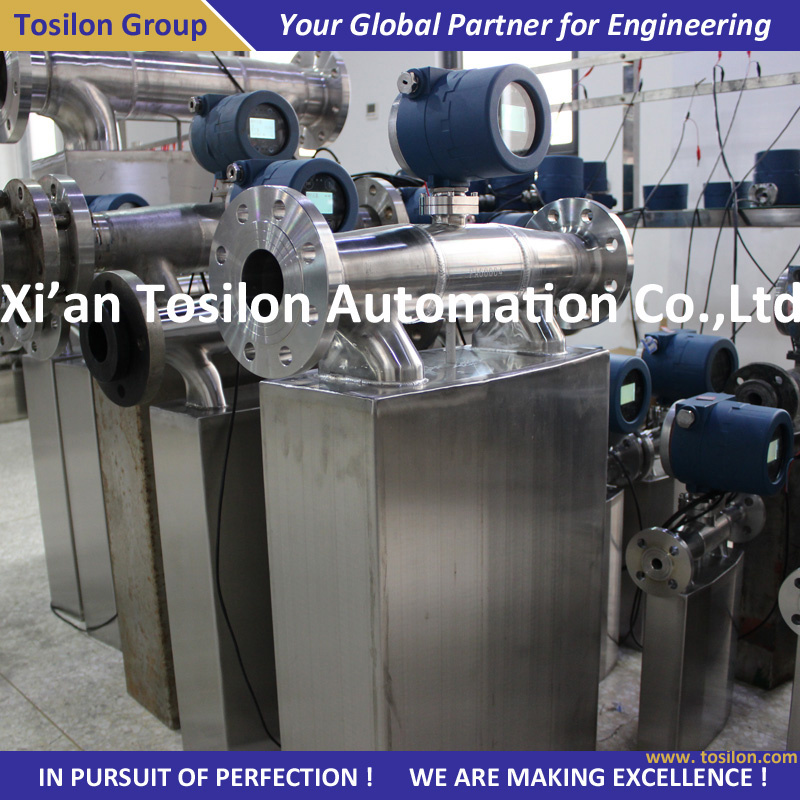

Tosilon Coriolis Mass Flow Meter for Oil & Gas Offloading Metering (Ex Approved)Design and Manufacturing according to UL, RoHS StandardIntroduction Coriolis Mass Flowmeter measure the force resulting from the acceleration caused by mass moving toward (or away from) a center of rotation. This effect can be experienced when riding a merry-go-round, where moving toward the center will cause a person to have to "lean into" the rotation so as to maintain balance.
As related to flowmeter, the effect can be demonstrated by flowing water in a loop of flexible hose that is "swung" back and forth in front of the body with both hands. Because the water is flowing toward and away from the hands, opposite forces are generated and cause the hose to twist.
General Technical Parameters (For More Details, please contact Tosilon)Measurement Scope Accuracy
2kg/h~500t/h ±0.2%~±0.15%
Work Pressure
(0~32) MPa (in case of other high pressure, it must be of special order)
Medium Temperature Measurement Accuracy
-50 oC~ +350 oC ±1 oC
Environment Temperature
-20 oC ~ +70 oC
Measurement Medium
Liquid, gas, solid, or two phases and three phases mixed fluid
Power Supply
24VDC
Output Signal
4-20mA current signal of flow, with load resistance ≤500Ω
0-10KHz frequency signal of flow.
RS485 Communication protocol
Material of Measuring Pipe Response Time
316L stainless steel 0.1s~5s, adjustable
Explosion-Proof Grade
Ex(ib)II BT2-T5
For more information, please contact Tosilon
Your Global Partner for Automation
www.tosilon.com
| Model | DN | Measurement scope (t/h) | Work Pressure(MPa) | Connection Type (mm) |
| TMF-1-5-A | 25 | 0~10 | 0~4 | Flange 25 |
| TMF-1-5-B | 40 | 0~20 | 0~4 | Flange 40 |
| TMF-1-6-A | 50 | 0~30 | 0~4 | Flange 50 |
| TMF-1-6-AB | 65 | 0~50 | 0~4 | Flange 65 |
| TMF-1-6-B | 80 | 0~100 | 0~4 | Flange 80 |
| TMF-1-6-C | 100 | 0~150 | 0~4 | Flange 100 |
| TMF-1-6-D | 150 | 0~300 | 0~2 | Flange 150 |
| TMF-1-6-E | 200 | 0~500 | 0~2 | Flange 150
|
Established in 2012, Tosilon, located in high-tech Zone of Xi'an, been engaged in the advanced technology in Coriolis Mass Flow Meter, Direct Insertion Tuning Fork Density Meter, Viscosity Meter, Fuel Oil Level Sensor and Radar Level Sensor which are more effective, efficient and innovate. The core team of Tosilon was founded in 1998 and the teams are used to be members of the Beijing Research Institute of Chemical Industries (BRICI). As a leading company in industrial measuring field in China, Tosilon integrated with R&D, manufacturing, marketing and after-sell service, offers complete solutions to density measurement, mass flow measurement and fuel oil level measurement, etc. Currently, Tosilon has acquired ISO 9001, CMC, CE and RoHS.
Based on core-technology, Tosilon has successfully developed advanced Coriolis Mass Flow Meter, Direct Insertion Density Meter, Mud Density Meter by cooperating with famous corporations and universities. After years of efforts in improving and modifying, Tosilon has its Coriolis Mass Flow Meters and Density Meters professionalized to meet the needs required by various industries covering Oil & Gas Industry, Petrochemical Industry, Chemical Industry, Mineral Industry, Food Industry, Wine Industry, Paper Making Industry, Power Plant, Drilling Mud Field, Pharmaceutical Industry, Aviation Industry, etc.
One of the typical applications Tosilon's Coriolis Mass Flow Meter focus on is the custody transfer of Oil & Gas. In domestic market in China, Tosilon is also qualified supplier to many famous domestic corporations such as Sinopec, PetroChina, etc.
In addition, Tosilon has also been engaged in the development of Central Heating Project of most cities in China. In 2012, by cooperating with Heating Company of Shan Xi and Inner Mongolia, Tosilon successfully applied the system of Measuring, monitoring, remote control and Network Communication in Automation Project.
Together with qualified and dedicated members, Tosilon is always advocating innovation in the technology and service. Applied with advanced conception of management, Tosilon is committed to providing best product, solutions and service.
