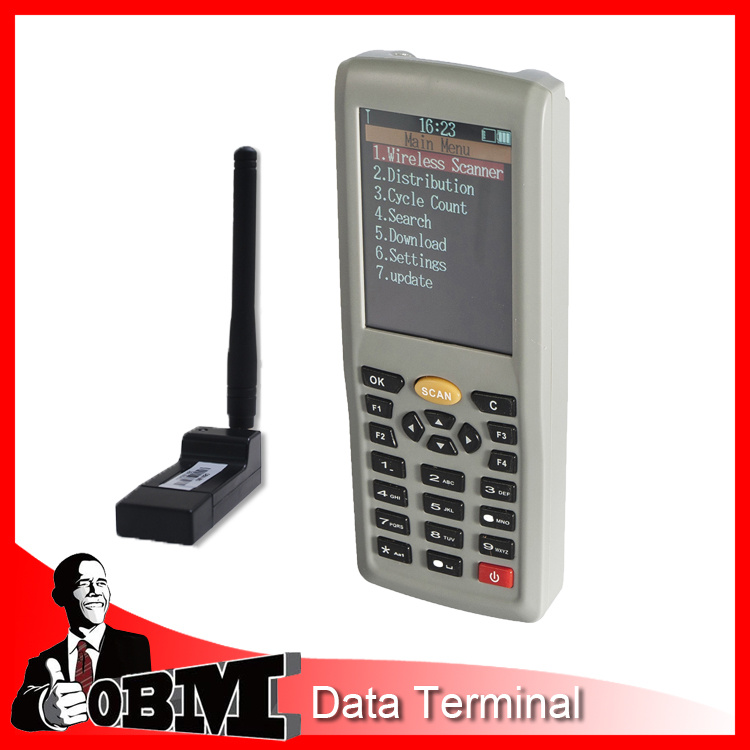

Wireless Barcode Scanner Data Collector Handheld PDA(OBM-9800)
Our most hot-selling laser barcode scanner with its excellent performance and attractive price at overseas market.
Read all of 1D barcodes, with CE and ISO certificate.
Button performance is amazing.
1. Antiknock design: Withstand 1.5M drops
2. Error rate less than 1/5 million
3. Service life of button reaches up to 50 million times
4. Convenient and flexible automatic induction function
5. Very comfortable operation sense
6. Supporting the RS232, PS2 and USB interface
7. Full independent intellectual property rights (having been award with multiple national patents)
Light source |
650nm laser |
Bit error rate (BER) |
1/1 million |
Safety performance |
Meet the Grade II National Criteria for Laser Safety |
Scanning method |
automatic or manual |
Supported interfaces |
RS232, PC2 keyboard, USB |
Wireless Receiver |
433Mhz frequency |
Working Mode |
Real Time or Storage |
Barcode types |
EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codaber, Industoal 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, Chinese postcode etc. |
Use type |
Hand-held or bracket-held installation |
Resolution (pcs0.9) |
0.10mm(4mil) |
Depth of field |
10-420mm (pos09 density 0.25) |
decode rate |
100 times/second |
precision |
0.10-0.825mm |
scan width |
60mm at 30mm; 98mm at 100mm |
Reading angle
of elevation |
60 degree |
Power voltage |
5V |
Working current |
57mA |
Static current |
36mA |
Light intensity |
Daylight, 4000Lux max |
Operating temperature |
-20° C-45° C |
Storage temperature |
-20° C-45° C |
Operating humidity |
5%-85% |
Storage humidity |
5%-85% |
color size and weight |
23.5x17.5x7.5cm 0.56KG\color box |
carton size and Qty |
60x40x50cm , 32pcs/carton |
Easytech is one of leading high technology companies which is specialized in the Auto-Identification (Barcode & RFID machine) industry. Our products include Laser Barcode Scanner, CCD Barcode Scanner, Barcode Data Terminal, RFID Data Terminal and RFID Reader.
In quest of the goal of "making the best cost-effective Auto-ID products in China", Easytech complies with a high standard and restrict requirements on product development, manufacture and services, and continuously searches for and releases products out of new demands of customers to meet the ever-changing market needs. Besides, Insisting on a principle of "well done of the experienced product before moving on to the next new, Making a plan on the new generation for the future while developing the present", Easytech is able to release at least one of leading products from the same industry every year.
Because of excellent performance and high quality of the products, Easytech has imajor companies such as China Mobile, China Telecom, China Petrol and branches of Public Security, and also our products are seen in many other retailers, chain-stores, logistic and manufacturing enterprises. In 2007, Easytech is honored as one of the "Top 10 National Brand of Barcode Industry" by the Auto-Identification Association of China.
