Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Industrial Machinery |
Product Description
Crane remote control
A. 2/4/6/8/10/12 single/double buttons
B. Control distance: 100M
C. CE certificate
Crane remote control
About us
In the international market, UTING Industrial remote control crane radio remote control
Obtained a high praise and widely used in various fields. At present, UTING business has spread all over the world. Its headquarters is located in the Victoria, Seychelles. The global manufacturing center is located in Ningbo, China. The industrial radio remote control is apply for mechinery equipment, such as crane, overhead crane, tower crane, lift loader etc.

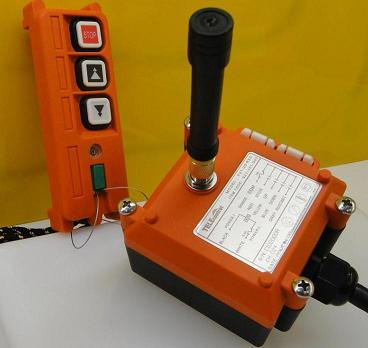

F21 receiver
Size: 185*85*85mm
Weight: 550g
Features
Control distance is up to 100 meters
Over 4.3 billion unique ID code
Temperature range: -40° C~ +85° C
Enclosure protection class IP 65
Microsoft Windows based software for easy customize configuration
Structure: Glass-Fiber
Receiver power: 110/ 220V/380V/VAC, or 12/24/36/48 VDC.
Output contact capacity: 5A sealed relay output (AC 250V/10A relays, 5A fuse contacts
F21-2S/D
Transmitter
F21-2S-TX
Dimension: 130*45*22 mm
Weight: 60g (without batteries)
F21-4S/D
Features
4 single step
1 EMS "STOP"
1 rotary start key
F21-E1
6 single step pushbuttons
Features
2/4/6 single -doubel step pushbuttons
1 key magnetic
Low cost, low power consumption (2 AA batteries last up to 4 months)
Safety code: Over 4.3 billions unique ID code available
Temperature range -40° C~ +85° C
Enclosure protection class: IP 65
Microsoft Windows based software for easy customize configuration
Structure: Glass-Fiber
Two operation buttons and one stop button
4control contacts
with battery voltage warning device, the power is cut off during low power.
Safety key switch to prevent from unauthorized user
Set the internal functions by computer interface.
3 operation buttons can be set as to mutual inhibition or not.
Spare key can be set to start, acceleration, toggle switch, general or other functions.
Control distance is up to 100 meters
Transmitter power: 3V DC (2 AA batteries last up to 4 months)
Receiver power: 380V/220V/110V AC or 12V/24V/36V/48V DC
Output contact capacity: 5A sealed relay output (AC 250V/10Arelays, 5A fuse contacts).
Standard Configuration
One transmitter
One receiver
Receiver with 1 meter cable
Operation and maintain manual
Application
Single-hook, single-speed electric hoist or hoist-type traffic and industrial remote control with less than 4 contacts
Feature:
Industrial wireless radio remote control
Material: Glass-Fiber
Uses function: Industrial wireless radio remote control
Price: Please contact with us for special discount
Brand: UTING or according to customer requirements
Model: F24 series or according to customer requirements
Date: 2-15 working days
Packing:
Standard cartons or based customer requirement
Payment: L/C, T/T, Western union
Minimum quantity: 1 set
Delivery time: Within 2-15working days according to the order quantity
Top quality and competitive price
Supply capacity: 1000sets/week or based customer requirement
Receiver: F21-RXC |
Applications |
Doors, entrance, gates, winches, pumps, crushers, lighting, conveyor belts, hydraulics etc |
Working frequency |
315 MHz |
High-frequency channels |
64 |
Unique codes |
4.3 billions |
Power supply |
110/ 220V/380V/VAC, or 12/24/36/48 VDC. |
Power consumption |
20~400m A |
Protection |
IP65 |
Temperature |
-40° C ~ 85° C |
Control distance |
Approx. 100M |
Recommended transmitter |
F21 series transmitters |
UTING Electronic Co. Is the professional manufacturer of industrial remote control.
In the international market, UTING products obtained a high praise and widely used in various fields. At present, UTING business has spread all over the world. Its headquarters is located in the Victoria, Seychelles. The global manufacturing center is located in Ningbo, China. There are subsidiaries in Netherlands, Germany, Norway, Britain, the United States, Estonia, Turkey and Sweden. Our dealers are throughout Australia, France, Spain and Denmark, etc.
We have a branch company Ningbo Ant electronic CO, . Ltd, produce crane load cell and elevator parts, such as elevator weighing load cells, elevator door detector, photoelectric sensors and other elevator sensors.
