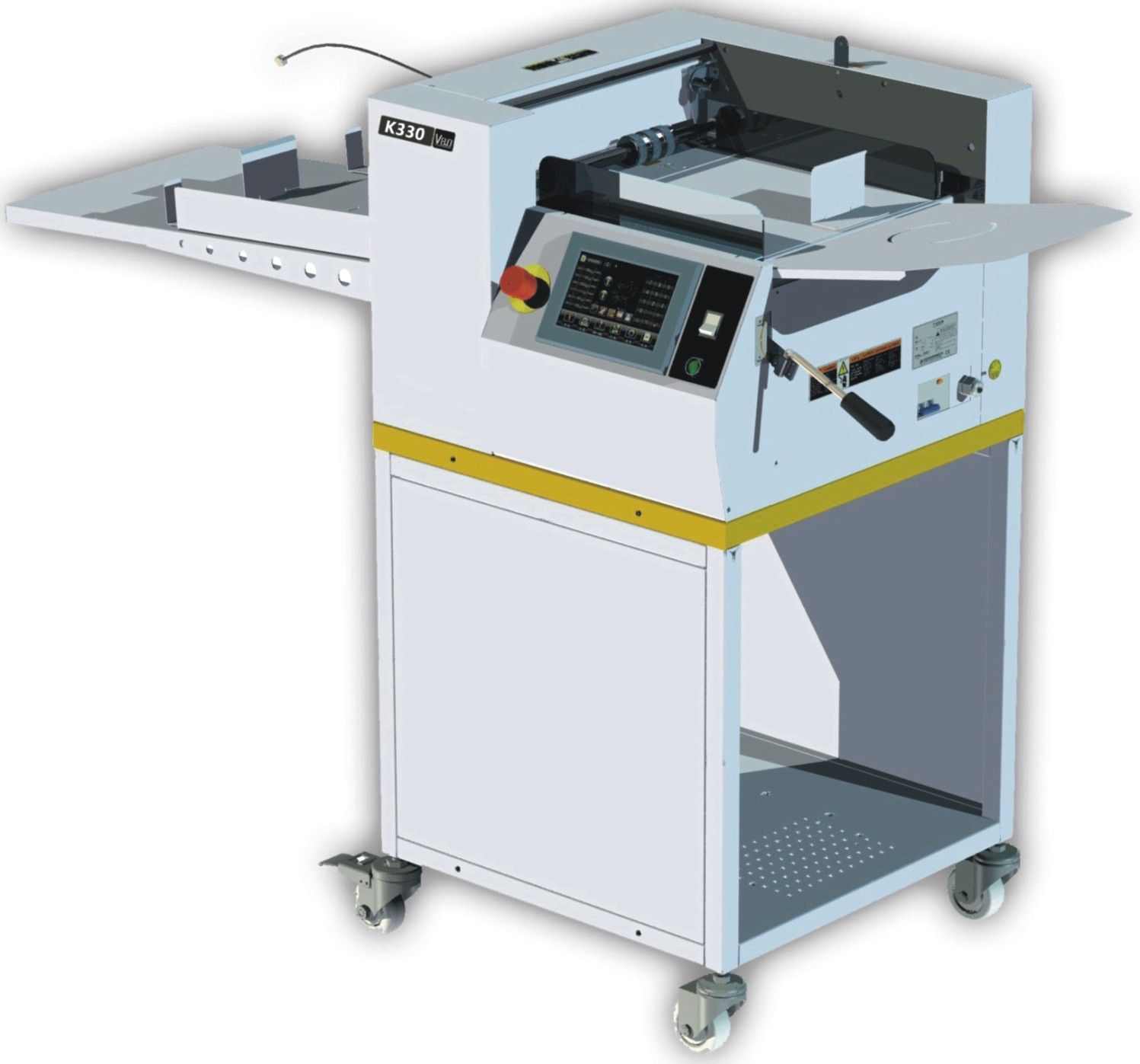

Product Specifications
| Prod Model: |
GT-K330A/GT-K330A2/GT-K330B/GT-K330C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Gt-K330A /Gt-K330A2 /Gt-K330b /Gt-K330c |
| Paper Width: |
120-320/120-320 /150-320 /165-320mm |
| Paper Length: |
80-999 /80-999/80-999 /140-999mm |
| Paper Thickness: |
80-400 /80-400 /80-300 /80-400GSM |
| Speed: |
8000 Lines/Hour . |
| Display: |
7" Touch Screen |
| Punching: |
Optional |
| Power Supply: |
AC220V(110V)±10% 50Hz/60Hz |
| Machine Weight: |
98kgs /98kgs /100kgs /140kgs |
| Machine Dimension: |
1600*630*1150mm |
Product Description
Model GT-K330A /GT-K330A2 /GT-K330B /GT-K330C
Paper Width: 120-320mm /120-320mm /150-320mm /165-320mm
Paper Length: 80-999mm /80-999mm /80-999mm /140-999mm
Paper Thickness: 80-400GSM /80-400GSM /80-300GSM /80-400GSM
Speed: 8000 lines/hour
Paper Feeder: Manual /Manual /Friction /Vacuum Suction
Display: 7" Touch Screen
One-way Creasing: √ /√ /√ /√
Two-way Creasing: X /√ /√ /√
Slittting: X /X /X /X
Crosscut: X /X /X /X
Adhesive Sticker Slitting: X /X /X /X
Roller Creasing: X /X /X /X
Roller Perforating: X /X /X /X
Perforating & Creasing: Optional /Optional /Optional /√
Color Code: X/ X/ X/ X
Punching: Optional /Optional /Optional /Optional
Read Data: √ /√ /√ / √
Power Supply: AC220V(110V)± 10% 50Hz/60Hz
Machine Dimension: 1600*630*1150mm
Machine Weight: 98kgs /98kgs /100kgs /140kgs
- See more at: HTTP: //www. Wf-giant. COM/GT-K330AGT-K330A2GT-K330BGT-K330C-Creasing-Machine-p107. HTML
|
Model |
GT-K330A |
GT-K330A2 |
GT-K330B |
GT-K330C |
|
Paper Width |
120-320mm |
120-320mm |
150-320mm |
165-320mm |
|
Paper Length |
80-999mm |
80-999mm |
80-999mm |
140-999mm |
|
Paper Thickness |
80-400gsm |
80-400gsm |
80-300gsm |
80-400gsm |
|
Speed |
8000 lines/hour |
8000 lines/hour |
8000 lines/hour |
8000 lines/hour |
|
Paper Feeder |
Manual |
Manual |
Friction |
Vacuum Suction |
|
Display |
7" Touch Screen |
7" Touch Screen |
7" Touch Screen |
7" Touch Screen |
|
One-way Creasing |
√ |
√ |
√ |
√ |
|
Two-way Creasing |
X |
√ |
√ |
√ |
|
Slittting |
X |
X |
X |
X |
|
Crosscut |
X |
X |
X |
X |
|
Adhesive Sticker Slitting |
X |
X |
X |
X |
|
Roller Creasing |
X |
X |
X |
X |
|
Roller Perforating |
X |
X |
X |
X |
|
Perforating & Creasing |
Optional |
Optional |
Optional |
√ |
|
Color Code |
X |
X |
X |
X |
|
Punching |
Optional |
Optional |
Optional |
Optional |
|
Read Data |
√ |
√ |
√ |
√ |
|
Power Supply |
AC220V(110V)±10% 50HZ/60HZ 230W |
AC220V(110V)±10% 50HZ/60HZ 1800W |
|
Machine Dimension |
1600*630*1150mm |
|
Machine Weight |
98kgs |
98kgs |
100kgs |
140kgs |
