| Price: | US $ 10000-30000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,EXW |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | MX |
|---|---|
| Application: | TV, Computer, Home Appliances(14"~33") (7~50kg) |
| Size: | 4800*3100*2350mm |
| Overall Dimension: | 4080*800*1530mm |
| Usage: | to Cut CRT & Remove Fluorescents |
| Processing Methods: | Ni-Chrome Heater |
| Pullution Sources: | Water Pollution Control |
| Air Pollution Control Equipment Type: | Dust Removal Equipment |
| Capacity: | 20-40 Sets/Hr |
| Type: | Electronics Recycling Machine |
| Certification: | ISO |
| Screw: | Single-Screw |
| Automation: | Semi-Automatic |
| Material Processed: | CRT Monitor |
| Knife Type: | Nickle Wire Cutter |
Running video http://youtu.be/Rtno0o8WUzY
A. Applicable scope
Waste television set, waste computer .(excluding the LCD disposal)

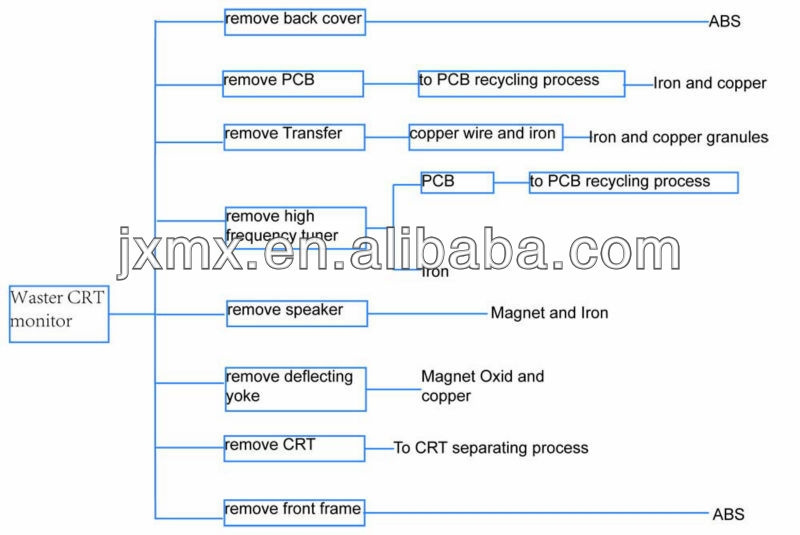

B. Disposal process

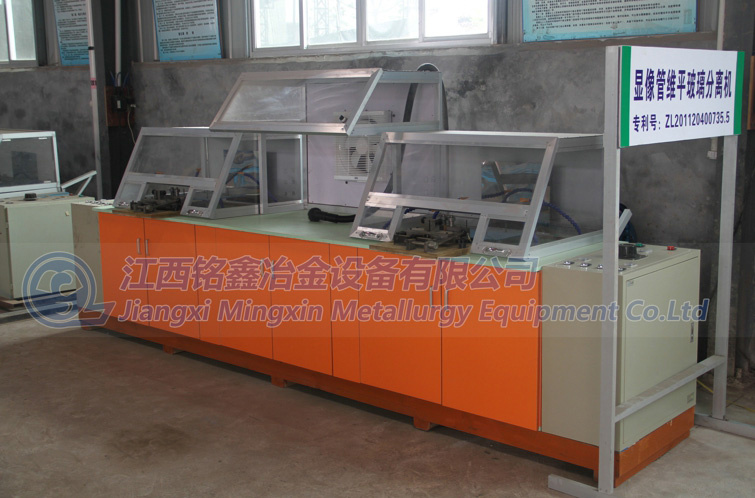

In the on-line dismantling system, the television set will be manually dismantled the shell, CRT, printed circuit board, etc.,

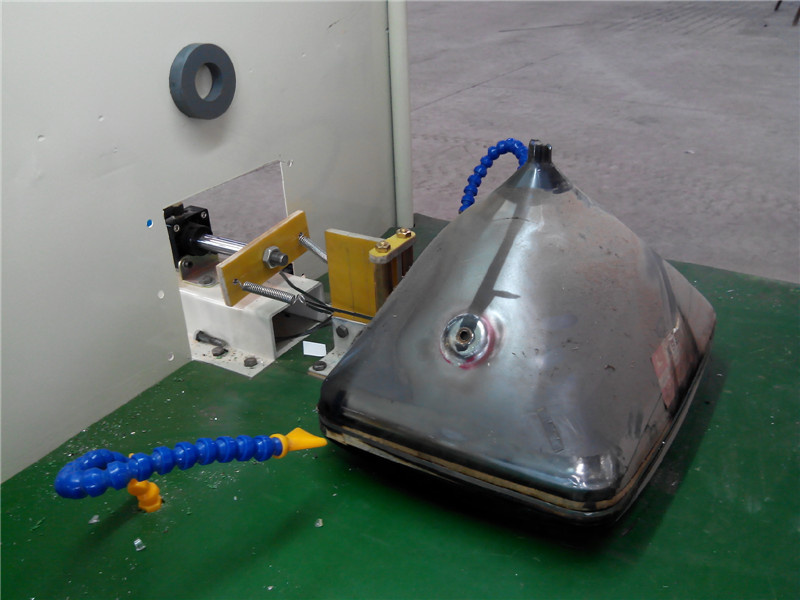

and the color CRT will be processed through the cutting machine to separate the screen from the funnel glass, remove the embedded phosphor powder for central collection. The plastic shell will be loaded into the plastic crusher manually for crushing and sales after manually sorting the plastic shell.
A. Technical requirements
(1) Main specifications: Waste TV set and waste computer (14" ~ 33") (7 ~ 50kg);
External dimensions: Length x Height x Width, minimum 346 x 365 x 365mm, maximum 587 x 660 x 868mm.
(2) Processing capability:
Waste TV set: 20 sets/hour at least; weight of single set: less than 70 kg,
Waste computer: 20 sets/hour (not processed with TV set at the same time).
(3) The materials obtained from the processing are: plastics, printed circuit board, screen glass, funnel glass, phosphor powder, woods, iron, cathode-ray gun, copper and insulated copper wire, etc.
(4) The activity radius for every operator to work for on-line dismantling system is 1.8M.
(5) The on-line dismantling system is featured the following functions:
