Product Description

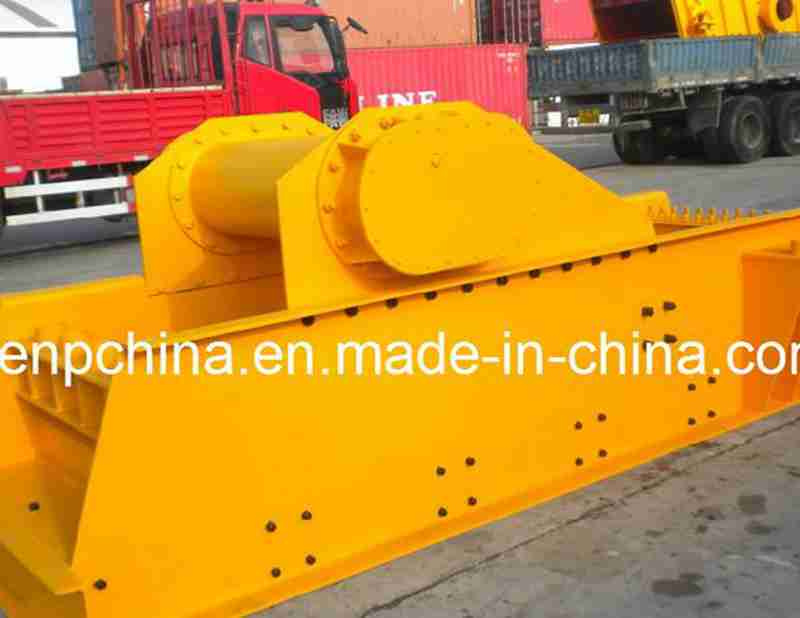

Vibrating Feeder:
1. Smooth vibrating.
2. Reliable operation.
3. Long service life.
4. Stable feed.
Vibrating Feeder is a kind of linear direction feeding equipment. It features smooth vibrating, reliable operation, long service life and being suitable for feeding. They are widely used in mining, building-material, silicate and chemical industry in the crushing and screening plants.
In the Sand-Stone production line, it can send materials to crusher evenly and continuously and at the same time, it can screen materials roughly. It can be used in these areas such as metallurgical industry, coal mining industry, mining-selecting, building, chemical and grinding industry, etc.
Vibrating Feeder Operating principle:
Vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through the vibration, The materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, avoiding the further crushing, so screening purpose can be reached.
Vibrating Feeder Specification
GZD-180× 80 | 300 | 30-80 | 2× 1.5 | 0-10 | 0.8 | 1800× 800 |
| GZD-200× 120 | 300 | 80-500 | 2× 2.2 | 0-10 | 0.9 | 2000× 1200 |
| GZD-300× 90 | 500 | 40-100 | 2× 2.2 | 0-10 | 1.5 | 3000× 900 |
| ZSW-380× 96 | 500 | 90-100 | 11 | 0° | 5.0 | 4200× 1100 |
| ZSW-420× 110 | 580 | 150-350 | 15 | 0° | 5.5 | 4900× 960 |
| ZSW-490× 110 | 580 | 180-380 | 15 | 0° | 5.32 | 4900× 1100 |
| ZSW-490× 130 | 750 | 250-450 | 22 | 0° | 5.9 | 4900× 1300 |
| ZSW-600× 130 | 750 | 400-800 | 50 | 0° | 7.8 | 6000× 1300 |
| ZSW-600× 150 | 800 | 400-800 | 30 | 0° | 8.67 | 6000× 1500 |
| Model | Max input size(mm) | capacity (t/h) | motor power (kw) | Installaition Slope | weight (kg) | Size of Funnel (mm) |
DENP INDUSTRIAL established in 2010, Focus on supply best quality Chinese stone crusher and crusher wear parts in competitive price. Through years effort by all staff, our products sold to 23 countries and area all around the world, and got good fame from our customers. Now our annual turnover have exceeded USD 10, 000, 000.
Our fist products have Jaw crusher and Jaw crusher spare parts( jaw plate, side plate, toggle plate, upper shim, bolt and nuts, top head and sleeve etc. ), Impact crusher and Impact crusher spare parts(blow bar, impact plate, side plate, rotor, lining board, motor fully, etc), Cone crusher and Cone crusher spare parts(concave, mantle, bush, main shaft, bronze dish, etc), Sand making crusher and spare parts, Vibrating screen, Vibrating feeder, Belt Conveyor, Sand washer, Mobile Crusher Plant, Mixer plant, Asphant Plant;
We cooperate with Lonking, LiuGong, XCMG, Sino Truk, Hangzhou Forklift, Heli Forklift etc in the field of Construction Vehicle. Also we cooperate with GD group, LDK Group and Nexpower for Solar power station.
Wish our quality products and best service can help our customers get more business, and make customers satisfied, to achieve common development.
