Name: RAY-2850 Cryostat Microtome
Category: Constant cold slicer
Product description:

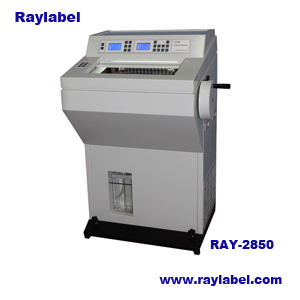

RAY-2850 Cryostat Microtome
Design Features
It is designed under overall engineering and ergonomic concept. All the components are processed with computer numerical controlled machine
Specimen retraction function, protects specimen from blade injury
Trimming/Cutting button makes it easy to switch from trim and section mode
Equip with counter to calculate total pieces and thickness.
In the mandatory refrigeration structure, one compressor, which is made in Germany, freezes the cryostat chamber and shelf separate with pro-environment refrigerant R404
Temperature can drop to working condition in 60 minutes after switching on.
Adopt to UVC sterilize for 35 minutes every time.
Peltier may be on or off manually.
Heated, removable sliding window.
Two defrost methods: Definite time and manual
The high-precision microtome is enclosed outside the cryostat chamber to protect it from thermal expansion and contraction and keep minimum service and maintenance.
Self-explanatory symbols for all functions and displays, easy to learn and operate.
LED screen can display data such as sample travel, thickness, function controlling, day, time, temperature, timed on/off and so on
Stand by mode, after initializing, the temperature in cryostat chamber can be controlled between -4° An -9° Computer automatically; When stop initializing, the temperature in freeze chamber will arrive to working temperature within 10 minutes
Control panel with locking function to avoid wrong operation.
Handwheel locking
Sensor self-diagnosis function.
Technical Specifications
Freeze chamber temperature rage: -10° ~-30°
Cooling down time to -30° : 60 min
Freeze shelf minimum temperature: -45°
Lowest temperature of Peltier unit on freeze shelf: -55°
Peltier working time: 15 minutes
Maximum specimen size: 35mm× 35mm
Specimen vertical stroke: 60mm
Specimen horizontal stroke: 20mm
Coarse feeding speed: 0.7mm/s; 0.35mm/s
Section thickness range: 1μ M~80μ M adjustable; 1μ M~20μ M, in 1μ M increment
20μ M~40μ M, in 2μ M increments; 40μ M~80μ M, in 5μ M increments
Trimming thickness range: 10μ M~400μ M adjustable; 10μ M~50μ M, in 5μ M increments; 50μ M~100μ M, in 10μ M increments; 100μ M~400μ M, in 50μ M increments;
Retraction range: 0μ M~80μ M adjustable; In 5μ M increment
Voltage and frequency: AC220V± 10% 50Hz(Standard) Special requirement may customize by order.
Power: 650W
Weight: 125kg
Dimensions(W× D× H): 660× 640× 1130mm
