Product Specifications
| Prod Model: |
YD-1900 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

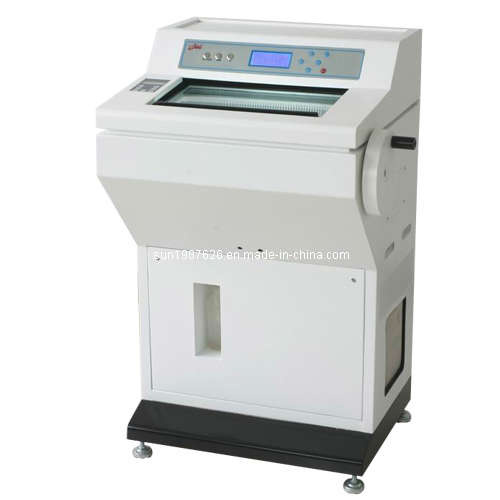

Cryostat Microtome YD-1900, from China professional Cryostat Microtome manufacturer Jinhua YIDI Medical Appliance Co., Ltd
Feature of Cryostat Microtome YD-1900
According to the developing trend of clinical histology and the several decades' experience of our factory for manufacturing pathological microtome, YD-1900 Cryostat is a special freezing microtome which adopted the newest technology in the world.
Functional Features
1. MPU (Microprocessor) Control the temperature and LCD display automatically, and control the function of the section and trimming semi-automatically.
2. Two Compressor for freezing. Five freezing place: Two freezing tray, freezing specimen holder, freezing box, freezing knife.
3. Beautiful Streamline design
4. Specimen retraction function, protects specimen from blade injury.
5. Adopt advance import actuation system for advance of the specimen holder.
6. UV lamp sterilization system and fluorescent lamp for lighting
7. Defrost automatically
8. Automatic retraction system for section.
9. Automatic retraction system for specimen holder.
10. Anti-roll system which made the slice flat.
11. Slice the specimen flat, thin, even and continuously.
Technical Parameter.
Temperature of Freezing Box: -5centi degree~-35centi degree(± 2centi degree)
Temperature of Freezing Tray: -10centi degree~-40centi degree
Temperature of Freezing specimen holder: -5centi degree~-40centi degree(± 2centi degree)
Temperature of Freezing Knife: -5centi degree~-25centi degree
Range of Section Thickness
Trimming thickness: 1-60um
Setting value: From 1-60um 1um increment
Maximum Sample: 55mm
Maximum vertical specimen stroke: 59mm
Maximum horizontal specimen stroke: 28mm via step motor
Range of Angle Adjustment of freezing Knife: 0-15°
Specimen Orientation on X/Y axes 8° And specimen rotation on Z axes 360°
Dimension: 600× 640× 1150mm
Weight: 120kg
Power: 560w
Jinhua YIDI Medical Appliance Co., Ltd is a professional Manufacturer engaged in research &development, production and sale of Histology equipment and consumables. The products covering Microtome, Tissue Processor, Embedding Center, Cryostst, Tissue Floatation Processor, Tissue Barking Processor and all kinds of Histology consumables
YIDI Products have high quality, high performance and feature excellent after-sale service and are extensively used for scientific research and in the fields of biomedicine, education, epidemic prevention, farming and veterinary science.
We has established a complete Quality Assurance System to continuously fulfill the requirements according to ISO9001 and CE. Products have been sold to 34 provinces in China as well as many Laboratories, Hospitals, Universities, in Brazil, Italia, USA, Iraq, Nigeria, Romania and Southeast Asia etc., and receive good comments due to good performance and reliable quality.
We are willing to work with our respectful customers and distributors all over the world and fulfill our common targets as to improve the better life for people in need.
