Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Enclosure: |
Tefc |
| IP Class: |
44/54 |
Product Description

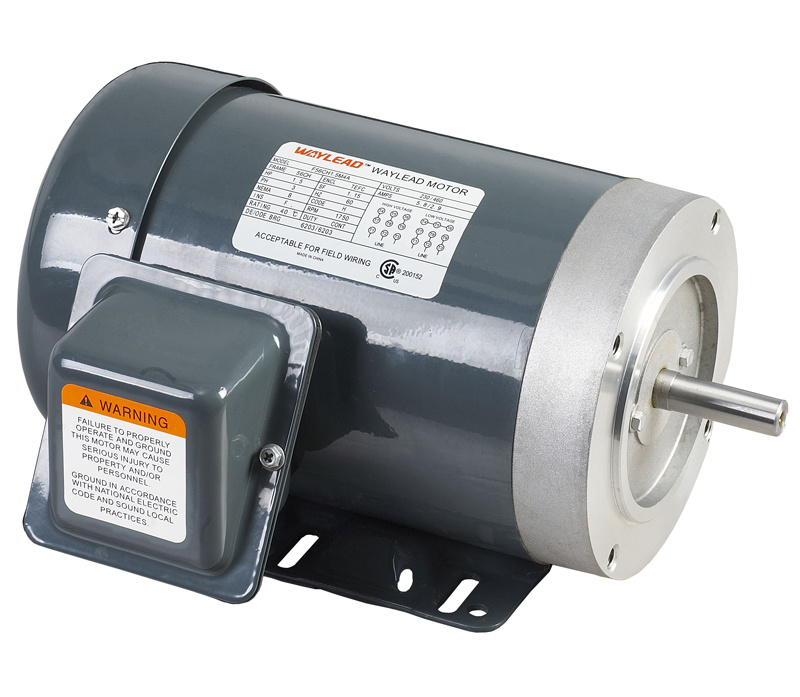

CSA/Cus 56 Frame Four-in-One Three Phase NEMA AC Electric Motor
HP: 1/3-3HP, 2 and 4P
Frame: 56-215t, single-phase AC motor
Rolled steel frame, removable base
1HP and above motors: 6205ZZ bearing of drive end belt.
Service factor: 1.15, or specially design an requirement
Insulation class B. F. H, UL approved
Enclosure: TEFC
NEMA design B
IP class: IP54/IP44
CSA&CUS certified
PRODUCTION LINE:
Cixi Waylead Motor Manufacturing Co., Ltd. locates at Cixi City Zhejiang China, which is the south tower of the Hangzhou Bay Bridge, and is near to the famous international ports Shanghai and Ningbo. So, it enjoys favorable economic & technological condition and convenient transportation.
Waylead Motor Manufacturing, who was one division of Cixi Huili in the past, specializes in researching, developing and manufacturing high and premium efficiency NEMA standard electric motor ranging from 1/8HP to 20HP.
After 12 years of researching and developing, Waylead Motor Plant has independently developed more than 300 specifications of ODP & TEFC NAME standard Single & Three Phase electric motors with casting iron and rolled steel frames. And the single-phase motors with rolled steel frame became our characteristic parts. All the motors have been certified by UL and CSA, and meet EPACT requirment from American Energy Department. All of our motors are exported to USA, Canada, Mexico, Caribbean and South-America area and applied in different industrial and agricultural fields such as fan, air compressor, water pump, woodworker, washing machine, flushing machine, garage door and entrance gate system, etc...Waylead Motor Plant was also the OEM supplier for worldwide known motor enterprises such as GE, MARATHON, LINCOLN, and LEESON.
Waylead Motor Plant is equipped with many advanced production and test equipments such as VPI device, balance tester, bearing noise-measuring instrument, dynamic balancer, high voltage testing instrument, and a complete type approval laboratory so as to ensure the electric motor meeting the international safe and energy standards.
With abundant designing and manufacturing experience on NEMA electric motor, Waylead Motor Plant has the capability to develop new special electric motors according to the drawings and requirements from customers.
Looking forward to cooperating with you in near future!
