Product Specifications
Prod Model: |
CTB-412T0SGB15-5GB |
Markets: |
North America,Southeast Asia,Mid East |
Function: |
Control |
Number Of Stator: |
Three-Phase |
Brand: |
CTB |
Product Description

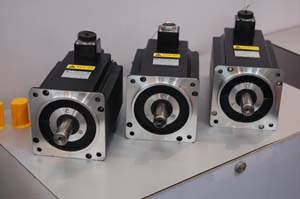

CTB series Permanent magnet synchronous servo motor (0.16-4000N.m)
CTB series Permanent magnet synchronous servo motor is new type of ac spindle induction servo motor with independent research, design, production and enters international market, which has been reached international leading level.
CTB series servo spindle motor has a compact structure, superior function, good shape and high efficiency, widely used in various fields of machinery manufacturing with very good cost performance.
Wide range of product series
Torque range:0.16-4000N.m Max torque can reach 15000N.m
Rated rotate speed: 500-3000rpm can supply non-standard design
Voltage class: 200V, 400V, 660V class
Speed sensor: can built-in incremental encoder, rotary transformer, absolute value encoder
Model | Name | Description | Catalog Number Explanation |
1 | Plant code | CTB CTB plant motor code | CTB company product |
2 | Voltage class | 2:200V 4:400V 6:660 V class | 400V |
3 | Power code | See standard specification table | 12 N.m |
4 | Motor type code | S:natural cooling servo motor Z: Forced cooling permanent magnet servo motor | S series servo motor |
5 | Encoder code | Code Encoder type B: no encoder G: optical-electricity encoder(increment) R: rotary transformer(12B) S: Sin-cos encoder: 2048P A: absolute value encoder(17B) | Built-in optical encoder |
6 | Motor base code | Base model: S series: A-G P series :A B C E F G | SB motor base |
7 | Basic rotate speed code | Code rotate speed r/min d5 50 01 100
200 300 500 07 750 | Code rotate speed r/min
1000 1500 2000 25 2500 30 3000 | Basic rotate speed:1500r/min |
8 | Installation method code | 3: B3/ horizontally-mounted 5: B5/ flanged mounting 35: B35/horizontally-flanged mounting | flanged mounting |
9 | Shaft extension structure code | G: optical shaft J: bond shaft | Optical shapt |
10 | Brake | B: Dead electricity electromagnet brake | Have brake |
Beijing CTB servo Co., Ltd are professional servo motor, spindle motor, motor driver, CNC controller manufacturer in Wanggezhuang industrial area, Miyun country, Beijing.
We have achieved $30 million domestic sales volume in 2014, and we have joined three board listing in Zhong guancun Science and Technology Park in 2014.
CTB has a full set of production and testing equipment, higher quality research and development staff, The products are produced according to ISO and CE standard. Widely used in automation equipment, such as CNC lathe. Milling machine. Packing machine. Grinding machine. Sewing machine. Engraving machine. Medical apparatus. ATM machine, ect.
In the coming days. The company will continue to technology innovation and management innovation. Our ultimate goal is to become a world-class servo motor supplier.
