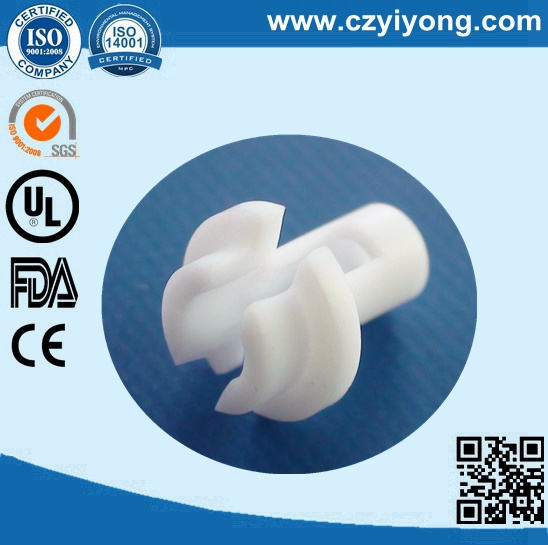

Product Specifications
Prod Model: |
YY110304 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Material Item: |
PTFE |
A Pplication: |
Connector |
Place Of Origin: |
Changzhou |
Color: |
White |
Standard: |
Nonstandard |
Shape: |
O-Ring |
Material: |
PTFE |
Product Description
1. High surface finishing
2. Precision in dimension control:±0.005mm
3. Full Inspection
4. Short Lead Time
PTFE Performance:
Teflon® is renowned for its temperature resistance and slick, non-stick qualities. As an industrial material, Teflon® has exceptional chemical resistance, high and low temperature durability, low coefficient of friction and superb insulating qualities. It lacks toughness for abrasive applications, however, and is not readily fastened together using adhesives unless the surface is ôetched" to accept the bonding agent. Teflon's® properties can be improved with the addition of fillers such as glass fiber and carbon.
Yiyong is a international manufacturer of customized PTFE products,the production process as following :
Some of our products:
Why choosing us ?
Our raw material including: PTFE PEEK TPX PEI(Ultem) PET-P PA66 PA6 PCTFE PPS PPO POM PFA PVDF PAI PI(VESPEL SP-1). Etc
We are committed to meet the demands of tight tolerances, high quality and a reliable product every time and continually surpass our client's unique expectations with a partnership approach and excellent customer service! For more details about us,You can click Our company profile / czyiyong.com
PTFE Mechanical Properities |
Value |
Unit |
Standand |
Tensile Strength |
12-34 |
Mpa |
ASTM D638 |
Elongation at Break |
100-400 |
% |
ASTM D638 |
Specfic Gravity |
2.13-2.25 |
---- |
ASTM D792 |
Hardness |
50-65 |
Shore D |
ASTM D2240 |
Flexural Yield Strength @0.2%offset,23 degrees Celsius |
---- |
Mpa |
ASTM D790 |
Flexural Modulus @23 degrees Celsius |
350-550 |
Mpa |
ASTM D790 |
Compressive [email protected]%offset,23 degrees Celsius |
7.7-11.8 |
Mpa |
ASTM D695 |
Dielectric Strength@ air(tape)
@Oil(Extrusion/Moulding) |
19.2 |
KV/mm |
ASTM D149 |
Dielectric Constant |
1.95-2.1 |
---- |
ASTM D150 |
Dissipation Factor@60HZ
@106HZ |
<0.0002 |
(60HZ) |
ASTM D150 |
<0.0002 |
(106HZ) |
Resistivity @Surface
@Volume |
>1017 |
Ω |
ASTM D257 |
>1018 |
Ω |
Point of Fusion DSC |
327±10 |
degrees Celsius |
ASTM D4591 |
Max.Working Temperature |
260 |
degrees Celsius |
|
Thermal Conductivity @Moulding Direction (MD) |
0.25 |
W/m.K |
ASTM C177 |
Coefficient of Dynamic Friction |
0.129 |
μK |
ASTM D1894 |
