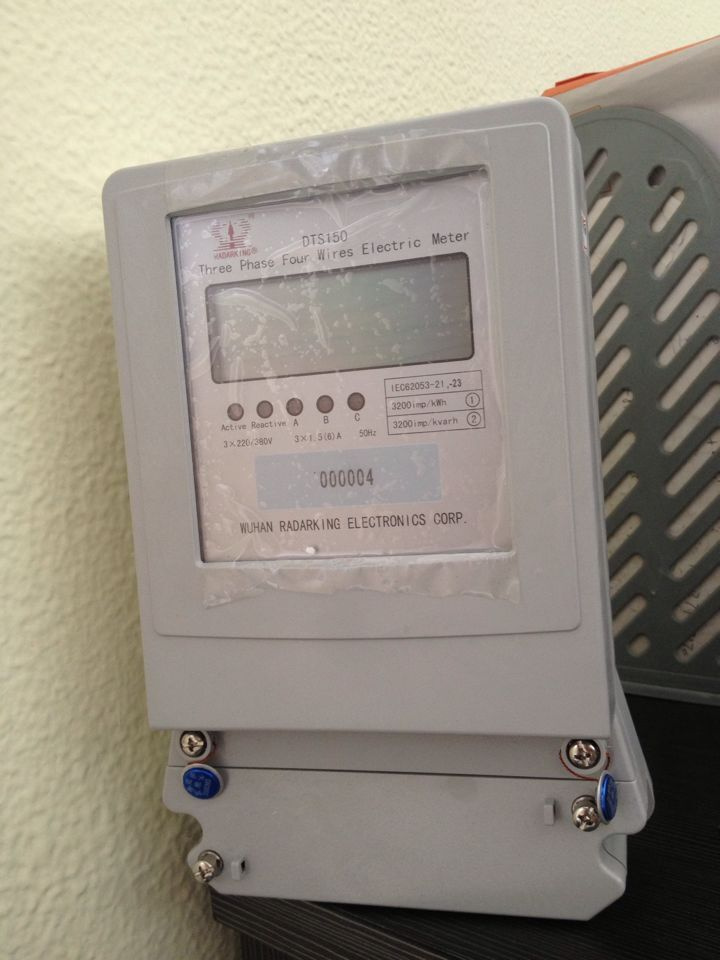

Three Phase Electric Meter is a full digital intelligent metering with special clip which function for e-management and also can prevent from electricity stolen. It can widely used in city, country or school and any enterprise.
Features:
Product Type: Resister(5+1), LCD(5+1 or 6+2), LED(5+1)
Electric Power Measurement: Positive active power, reverse active power and power in A.B.C phase which can be measured.
Intelligent Design: Imported single chip which controlled by microcomputer, full digital metering, with advantages of high accuracy, good linearity, wide range, low consumption and prevent from electricity stolen.
Reliable Design: Perfect power source and electromagnetism and compatible design, which are suitable to the strong electromagnetism disturbance and big occasion of power source fluctuation.
Cover for Meter: Fully Sealed dustproof and waterproof design, material of cover has excellent flame retardant and anti-corrosion, anti-aging properties.
On-Off Manner: Build in or exteral switch can be optional.
Communication Mode: Infrared, RS485 Interface or carrier communication module(optional).
Intelligent logic control function.
Accuracy class | Class 2.0,1.0, 0.5 |
Rated voltage(V) | 3 x 220/380, 3 x 230/400, 3x240/415/customized data |
Rated current(A) | 1.5(6), 3(6), 5(20), 10(40), 15(60), 20(80), 30(100),etc. |
Rated frequency | 50Hz or 60Hz |
Operation voltage range | Un±20% |
Insulation capabilities | AC voltage withstand 2kV for 1 minute; Impulse voltage withstand: 6kV-1.2/50 μs waveform |
Starting current | Input through CT: 0.2%Ib; Directly input: 0.4%Ib |
Power consumption | Voltage circuit ≤1W 5VA; Current circuit ≤0.5VA |
Max.operation temperature | -30°C ~ +70°C |
Max.storage temperature | -35°C ~ +75°C |
Relative Humidity | ≤85% |
Dimension | 228 x 144 x 72 mm |
Weight | Approx 1500g |
Prod Model: | DTS150 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Power Supply Mode: | Three Phase Four Wire |
Rated Voltage: | 3 X 220/380V, 3*00V/Customized Data |
Rated Frequency: | 50Hz/60Hz |
Max.Operation Temperature: | -30c ~ +70c |
Max.Storage Temperature: | -35c ~ +75c |
Relative Humidity: | 85% |
Current: | 5(20)a, 5(30)a, 5(40)a, 5(60)a, 10(40)a, 10(60)a |
Dimension: | 228 X 144 X 72 mm |
Accuracy: | 2.0, 1.0, 0.5 |
Pulse Constant(Imp/Kwh): | 6400, 3200, 2400, 1600, 1200, 800, 400, 200 |
Display: | Digital |
Installation: | Direct Connected |
Usage: | Maximum Demand Meter |
Electric Equipment: | Three-phase Four-wire |
Theory: | Electronic Meter |
Power Meter Connection: | Terminal |
Measured Signal: | Continuous Wave |
Type: | Power Meter |
