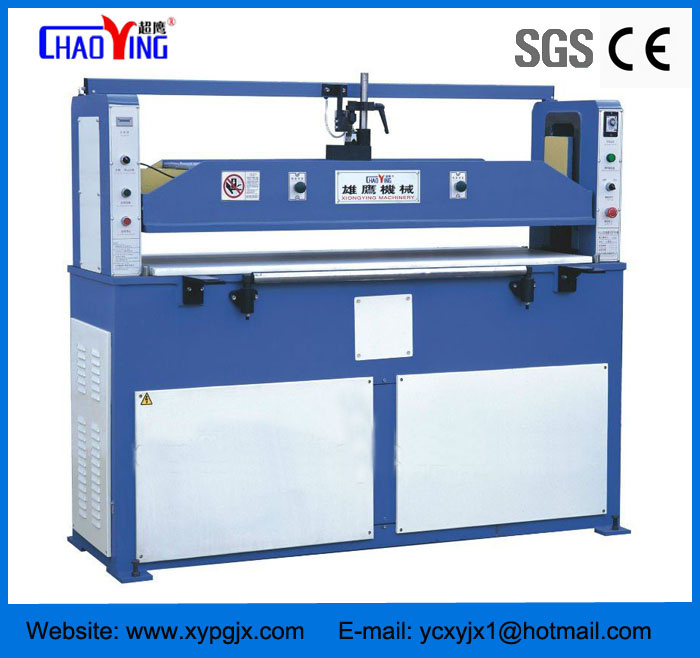

cutting and slicing machine
USE AND CHARACTERS
1.The machine is suitable for cutting single layer or multiple layers of leather, plastic, rubber, canvas, nylon, paperboard, vacuum forming, composite materials, foam, packaging and various synthetic materials.
2. The guiding for upward and downward movement of the pressing plate is realized by the guide rails on both sides with good guiding effect, which ensures the parallelism between the upper and lower worktables.
3. The switch for operation with both hands ensures the safety of operators.
4. The machine is provided with working pull board, which facilitates die cutter removal by the operator and ensures safety.
5. The self-lubricating bearing installed between the spindle and spindle seat requires no lubricating and makes no abrasion.
6. Suitable for cutting wide and multi-layer materials.
TECHNICAL SPECIFICATION:
Maximum cutting force |
25Tons |
Travel adjustment range |
0-100mm |
Range between the working tables |
50-150mm |
Size of the upper pressing board |
1600×500mm |
Size of lower worktable |
1600×550mm |
Motor power |
2.2kW |
Automatic grade |
Manual |
Drive model |
hydraulic oil |
hydraulic oil |
46# or 68# |
Machine color |
as optional |
Dimension |
2000×700×1300mm |
Net weight |
1500kgs |
|
Gross weight |
1600kgs |
|
please contact me if you need the press machine working video.
Remark:We can make the machine according to your specifical order ,for example the color,the motor information ,the working table etc.
