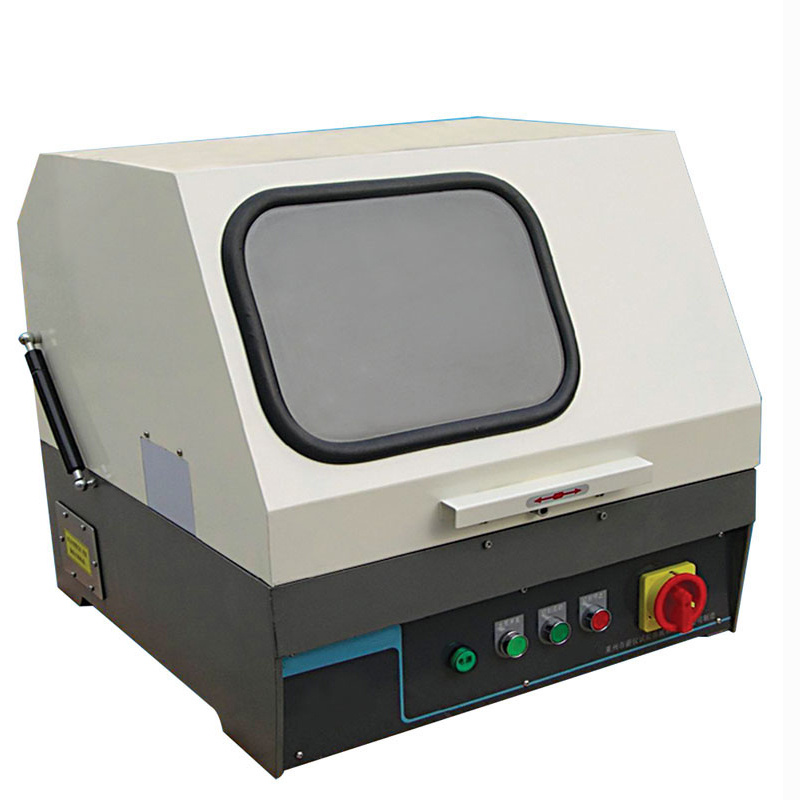

Cutting Machine (MC-80)
| Price: |
Negotiableset |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
MC-80 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cutting Diameter: |
Max 80mm |
| Rotate Speed: |
2800rpm |
| Cutting Disc Size: |
250 X 2 X 32mm |
| Net Weight: |
200kg |
| Dimension: |
720 X 700 X 620mm |
| Weight: |
0-100Kg |
| Power Source: |
AC220V |
| Type: |
Cutting Machine |
Product Description
MC-80/MC-100 Metallurgical Specimen Cutting Machine
It is one precision cutting machine suitable for procisely for large-scale specimens. It applies to a series of materials from the low hardness to the high hardness with the strong flexibility. It is mainly used in the fields of Metals, Ceramics, Composite materials, Electronic, Components, Hard alloy, Crystal, Mineral material, Bio-materials.
Order#: 711-131; 711-141
Rotation speed: 2800rpm
Motor Specification: 3.0kw
Dimension: 720x700x620mm
Net Weight: 194Kg
Power Supply: 3Phase/380V/50Hz
| Specifications: |
| Technical Specification | MC-80 | MC-100 |
| Order# | 711-131 | 711-141 |
| Max. Cutting Diameter | Φ80mm | Φ100mm |
| Grinder Specification | 250 x 2 x 32mm | 350 x 2.5 x 32mm |
| Rotation speed | 2800rpm | 2800rpm |
| Motor Specification | 3.0kw | 3.0kw |
| Power Supply | 3Phase/380V/50Hz | 3Phase/380V/50Hz |
| Dimension | 720 x 700 x 620mm | 720 x 700 x 620mm |
| Net Weight | 194Kg | 194Kg |
| Working Table | "T-slot" Working table, Double-driving Vise |
| Cooling Sytle | Outside Cooling system |
