Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
4.2m-6m |
| Rough Before Cutting (Mm): |
6050x1540x650 |
| Cutting Cycle: |
6-8min/Block |
| Cutting Ability (M 3 /Year): |
Above 200, 000 |
| Cutting Precision (Mm): |
Undefined |
Product Description

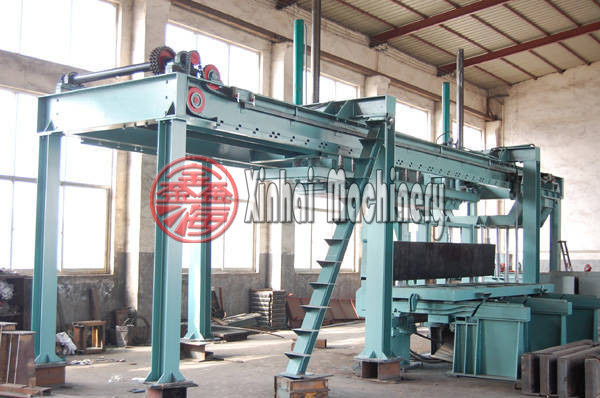

AAC cutting machine
This AAC cutting machine is the top equipment of AAC production line, and the core machine of AAC with annual production capacity over 50, 000m3. It is the necessary device to improve the yield and quality.
Main Features of the AAC cutting machine:
1. Compact structure, easy operation and little maintenance.
2. Cross cutting and vertical cutting finished once;
3. Hexahedral cutting of the blank, product precision in accordance with GB/T 11969-1997;
4. All waste materials shall be reclaimed, by which secondary pollution will not be resulted in;
5. Blank not conglutinated;
6. Lead screw drive used in cross-section cut, solving out-of-step of fluid drive;
7. Big pulley cart, small pulley cart used to promote and to install gears, rack solution of sync problem;
8. With equipments to replace steel wire rapidly;
9. No bowtie and crack.
|
NO. |
Size |
Rough Before Cutting
(mm) |
Cutting Cycle |
Cutting Ability
(m 3 /year) |
Cutting Precision
(mm) |
Total Power
(kw) |
Dimension (mm) |
|
1 |
4.2m |
4250× 1240× 650 |
6-8min/Block |
Above 100, 000 |
Six-side Cutting< ± 2 |
25.5 |
12200× 4200× 5600 |
|
2 |
4.8m |
4250× 1560× 650 |
6-8min/Block |
Above 200, 000 |
Six-side Cutting< ± 2 |
30 |
16000× 6000× 5500 |
|
3 |
6m |
6050× 1540× 650 |
6-8min/Block |
Above 200, 000 |
Six-side Cutting< ± 2 |
30 |
18500× 4600× 5800 |
