| Price: | Negotiable |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Western Union,Paypal |

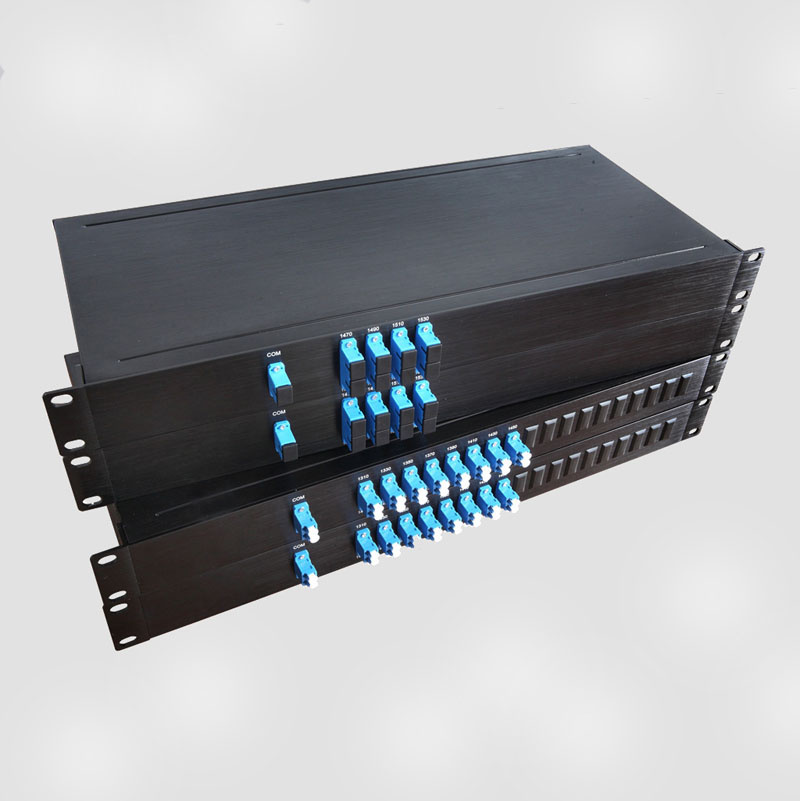

| Prod Model: | CWDM/OADM module |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: | ISO9001: 2008 |
| Package: | 19' Rack |
| Support Network: | Communication Cable |
| Usage: | Telecommunication |
| Type: | Passive Components |
| Parameter | 4 Channel | 8 Channel | 16 Channel | ||||
| Mux | Demux | Mux | Demux | Mux | Demux | ||
| Channel Wavelength (nm) | 1270~1610 | ||||||
| Center wavelength Accuracy (nm) | ± 0.5 | ||||||
| Channel Spacing (nm) | 20 | ||||||
| Channel Passband (@-0.5dB bandwidth (nm) | > 13 | ||||||
| Insertion Loss (dB) | ≤ 1.6 | ≤ 2.5 | ≤ 4.5 | ||||
| Channel Uniformity (dB) | ≤ 0.6 | ≤ 1.0 | ≤ 1.5 | ||||
| Channel Ripple (dB) | 0.3 | ||||||
| Isolation (dB) | Adjacent | N/A | > 30 | N/A | > 30 | N/A | > 30 |
| Non-adjacent | N/A | > 40 | N/A | > 40 | N/A | > 40 | |
| Inertion Loss Temperature Sensitivity (dB/° C) | < 0.005 | ||||||
| Wavelength Temperature Shifting (nm/° C) | < 0.002 | ||||||
| Polarization Dependent Loss (dB) | < 0.1 | ||||||
| Polarization Mode Dispersion | < 0.1 | ||||||
| Directivity (dB) | > 50 | ||||||
| Return Loss (dB) | > 45 | ||||||
| Maximum Power Handling (mW) | 300 | ||||||
| Opterating Temperature (° C) | -5~+75 | ||||||
| Storage Temperature (° C) | -40~85 | ||||||
| Package dimension (mm) | L100 x W80 x H10 | L142 x W102 x H14.5 | |||||
| CWDM | Channel Spacing | Numbers of channel | Configuration | 1st Channel | Pigtail | Fiber length | Connector | |
| C=CWDM Grid |
02=2Channel 04=4 Channel 08=8Channel 16=16 Channel 18=18 Channel N=N Channel |
M=mux D=Demux O=OADM |
27=1270nm … ... 47=1470 nm 49=1490nm … … … 61=1610nm SS=special |
1=bare fiber 2=900um loose tube 3=2mm cable 4=3mm cable |
1=1m 2=2m 3=special |
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC |
||
