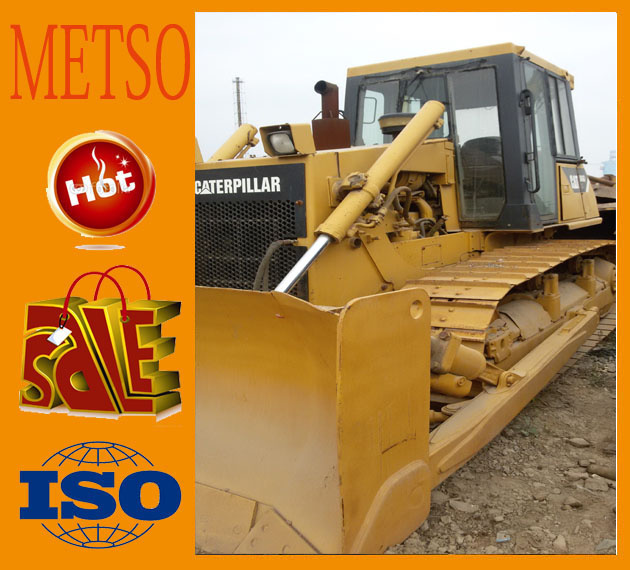

D6g2 Xl Bulldozer for Sales
Price: |
US $ 45000-50000/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
T/T,Paypal |
Basic Info.
Model NO.:D4H
Usage:Universal Type
Scraper Type:Tractor-Scraper
Transmission:Hydraulic Transmission
Walking Mode:Crawler
Load and Unload Method:Front Discharge
Engine Power:74~147kw
Certification:CE, ISO9001: 2000
Condition:Used
Color:Yellow
Year:2005
Length W/ Blade:4260 Mm
Width Over Tracks:2130 Mm
Height to Top of Cab:2986 Mm
Length of Track on Ground:2230 Mm
Ground Clearance:376 Mm
Length W/O Blade:3420 Mm
Standard Shoe Size:460 Mm
Track Gauge:1680 Mm
Engine Model:3204
Export Markets:Global
Additional Info.
Trademark:CAT mini bulldozer
Packing:Bulk Carrier or Container
Standard:ce
Origin:USA
HS Code:84295212
Production Capacity:Sets Per Month
Product Description
Caterpillar used mini bulldozer (d4h ,d5h ,d6,d7 )
Selected Dimensions
Dimensions |
A. Length w/ Blade | 15.8 ft in | 4817 mm |
B. Width Over Tracks | 9.1 ft in | 2760 mm |
C. Height to Top of Cab | 9.8 ft in | 2986 mm |
D. Length of Track on Ground | 8.6 ft in | 2620 mm |
E. Ground Clearance | 1.2 ft in | 362.5 mm |
F. Length w/o Blade | 12.1 ft in | 3693 mm |
Undercarriage |
G. Track Gauge | 6.6 ft in | 2000 mm |
H. Standard Shoe Size | 29.9 in | 760 mm |
Specification
Engine |
Make | Caterpillar |
Model | 3204 |
Gross Power | 99 hp | 73.8 kw |
Net Power | 90 hp | 67.1 kw |
Power Measured @ | 2200 rpm |
Displacement | 317.3 cu in | 5.2 L |
Number of Cylinders | 4 |
Aspiration | turbocharged |
Operational |
Operating Weight | 24790 lb | 11244.6 kg |
Fuel Capacity | 44.1 gal | 167 L |
Cooling System Fluid Capacity | 7.1 gal | 27 L |
Engine Oil Capacity | 4 gal | 15 L |
Hydraulic Fluid Capacity | 17.8 gal | 67.3 L |
Final Drives Fluid Capacity | 1.6 gal | 6 L |
Operating Voltage | 24 V |
Alternator Supplied Amperage | 35 amps |
Transmission |
Type | Planetary powershift |
Number of Forward Gears | 3 |
Number of Reverse Gears | 3 |
Max Speed - Forward | 6.3 mph | 10.2 km/h |
Max Speed - Reverse | 7.6 mph | 12.2 km/h |
Undercarriage |
Ground Pressure | 4.2 psi | 29 kPa |
Ground Contact Area | 6169 in2 | 4 m2 |
Standard Shoe Size | 29.9 in | 760 mm |
Number of Shoes per Side | 44 |
Number of Track Rollers per Side | 7 |
Track Gauge | 6.6 ft in | 2000 mm |
Hydraulic System |
Pump type | Load sensing, variable displacement piston pump |
Relief Valve Pressure | 2700 psi | 18615.8 kPa |
Pump Flow Capacity | 25 gal/min | 94.6 L/min |
Standard Blade |
Width | 10.7 ft in | 3256 mm |
Height | 35.7 in | 908 mm |
Capacity | 2.6 yd3 | 2 m3 |
Blade Angle (both directions) | degrees |
Cutting Depth | 16.3 in | 414 mm |
Dimensions |
Length w/o Blade | 12.1 ft in | 3693 mm |
Length w/ Blade | 15.8 ft in | 4817 mm |
Width Over Tracks | 9.1 ft in | 2760 mm |
Height to Top of Cab | 9.8 ft in | 2986 mm |
Length of Track on Ground | 8.6 ft in | 2620 mm |
Ground Clearance | 1.2 ft in | 362.5 mm |
Prod Model: |
D6G2 XL |
Markets: |
Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
Operating Weight: |
15434.8kg |
Type: |
Small Loader |
Walking Mode: |
Crawler |
Load And Unload Method: |
Rear Dump |
Certification: |
ISO9001: 2000 |
Condition: |
Used |
