Product Specifications
| Prod Model: |
DA-383 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Signal Transmission: |
Wireless |
| Application: |
Amplify |
| Directivity: |
Uni-direction |
| Transducer Principle: |
Electrodynamic Microphone |
| Sound Field Force: |
Combined Type |
Product Description
UHF & PLL wireless microphone
We are professional audio manufacture in Guangdong Enping. We specialized in different kind of microphone for many years. Factory based on Enping city, the world largest microphone and audio product manufacturing base. The best supply chain of microphone in the world! Make sure all you order's product high quality and shipment fast!

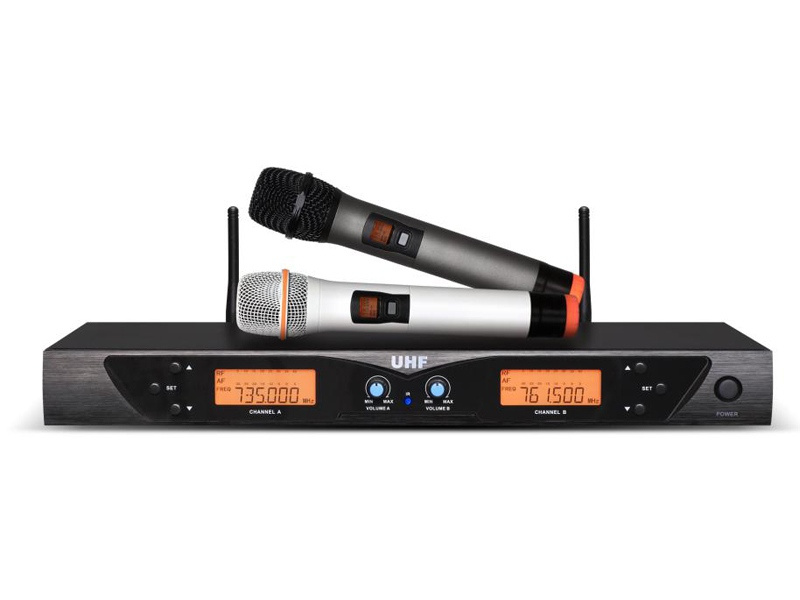

DA-383
PLL&UHF DUAL CHANNEL WIRELESS MICROPHONE
Adopt the PLL Synthesized control technic, preset 200 non-interfered channels.
Transfer datas to transmitter by infrared.
Digital LCD information display.
Using high gain antenna, the space availability is more than 100 meters at the clearing.
EIA standard 1U dual channel rack-mountable receiver with metal classics.
|
MODEL |
DA383 |
|
Carrier Wave Frequency Range |
UHF-600-870MHz |
|
Sensitivity |
-105dB (at) sinad=12 dB |
|
S/N Ratio |
>105dB |
|
Frequency Responses |
50HZ_15KHZ |
|
AF Output Impedance |
2.2KΩ |
|
Power Supply |
External DC Power |
|
Working distance |
60-80 meter |
|
Carrier Wave Stability |
10PPM |
|
Image rejection |
85 dB typical |
|
Oscillation Mode |
Quartz Controlled Fixed Frequency |
|
Display |
LCD |
|
Squelch Control |
dual-squelch circuit |
|
|
|
Da Qi sound is the development, production and sales as one of professional electronic equipment, equipment manufacturers, products include a microphone stand, speaker stand, stand mixer, sound, mixer, amplifier, audio peripherals and so on.
The company has advanced production equipment, stable and efficient development team and production team, according to changes in market demand, and constantly introduce new products. Strict accordance with the quality management system to manage. Have excellent sales network, products are exported to overseas, and have achieved highly praised by customers.
As always, we provide you with fast, high quality, satisfactory service, customers are welcome to consult the discussion, sincere cooperation, win-win future!
