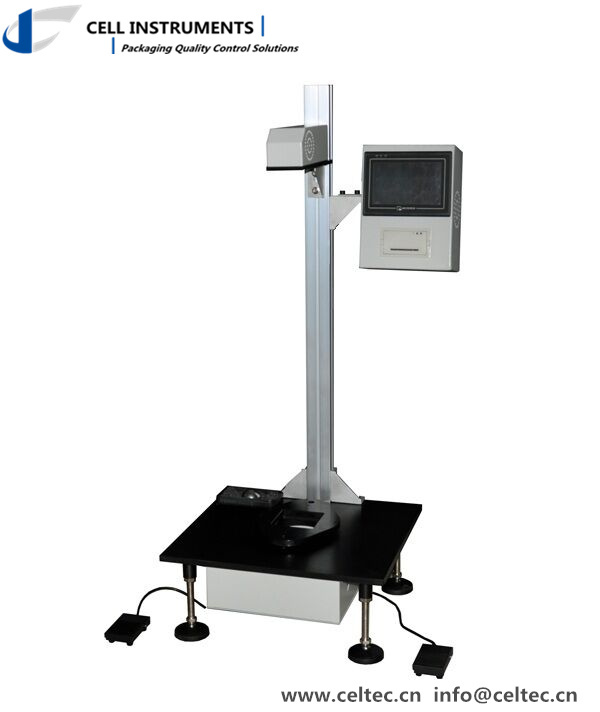

Dart free falling impact tester can test the resistance performance of plastic films, sheets, and composite films, foils, paper, with less than 1mm thickness. Impact test can indicate the material ability to resist external destruction.
Technical Features
PLC control and touch screen operation
Two tests methods of A and B
Test results multi-units display
Electromagnetic suspension and automatic release of the falling dart from fixed position
Sample pneumatic clamping
Manual and foot switch
Built-in observation light for sample status easy judgment
Micro-printer for data export
Professional software(optional)
Technical Data
Test Method Method A or Method B(optional)
Test Range Method A: 50~2000g Method B: 300~2000g
Dart Diameter Method A: 38±1mm Method B: 50±1mm
Impact Height 660mm/1500mm
Accuracy 0.1g (0.1J)
Specimen Clamp Pneumatic Clamp
Gas Supply 0.6 MPa
Gas Port Size Φ8 mm PU Tubing
Specimen Size > 150 mm x 150 mm
Power Supply AC 220V 50Hz
Net Weight 70 kg
Instrument Dimension Method A: 500 mm (L) x 450 mm (W) x 1200 mm (H)
Method B: 500 mm (L) x 450 mm (W) x 2200 mm (H)
Standards
ASTM D1709, ISO 7765-1-1988, JIS K7124-1, GB/T 9639.1-2008
