Product Specifications
Prod Model: |
DN20mm |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Body: |
Brass/Copper |
Szie: |
Dn20mm |
Cert: |
ISO9001, GB/T778-2007 |
Type: |
Multi-Jet |
Color: |
Blue or According to Your Request |
Packings: |
Carton |
Brand: |
Gaoxiang or OEM |
Pulse: |
1L, 10L, or 100L Can Be Choose |
Cover & Connection: |
Brass /Copper |
Standards: |
Class B or C as Your Request |
Install: |
Horizontal |
Level Measurement: |
B |
Counter Instructions: |
Digital and Analogue |
Principle: |
Speed of Water Meter |
Medium Pressure: |
General Water Meter |
Work Environment: |
Dry Water Meter |
Medium Temperature: |
Can Be Cold or Hot |
Nominal Diameter: |
Dn20mm |
Application: |
All |
Stucture: |
Wire Connection |
Product Description

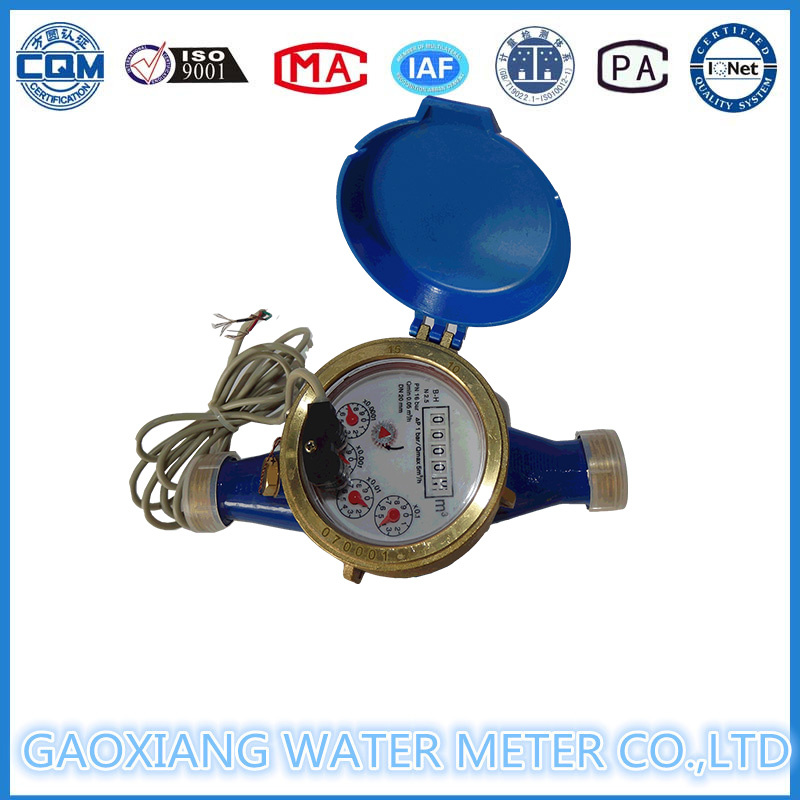

Data remote tranmission through pulse output DN20mm
We linyi Gaoxiang Water Meter Co.,Ltd is located in Linyi City of Shandong province, China, and we are a professional water meter manufacturer with more than 10 years, and we always do best price with high quality to our friend client!
Be always friendly, truthful, responsible to our client, also our friends!
*Application:
This pulse water meter is used to measure the total volume of water passing through the pipeline, It can not be used to measure corrosive liquids. This dry dial pulse water meter is magnetically coupled drive, and has a certain antimagnetic interference function, compact structure, small volume, the generoso appearance. Counting parts are the pointer combined with the wordwheel, which can be clear readings and also convenient. The pulse table position can be set according to customer requirements, this water meter can apply to the RF card water meter and Internet reading system.
*Working Condition:
A. For cold water, working temperature: 0.1ºC~40ºC working pressure: ≤1.6Mpa
B. For hot water , working temperature: 40ºC~90ºC working pressure: ≤1.6Mpa
*Error indicating:
a) Low zone: ±5% from minimum flow rate to transitional flow rate
b) High zone: ±2% from transitional flow rate to overload flow rate; hot water will be±3%
*Mainly Technical data:
a, water meter technical data:
Diameter | Class | Maximm flow-rate Qmax | Nominal flow-rate Qn | Transitioall flow-rate Qt | Minimn flow-rate Qmin | Min reading | Max reading |
mm | B | m³/h | m³ |
15 | B | 3 | 1.5 | 0.12 | 0.03 | 0.00005 | 99,999 |
20 | B | 5 | 2.5 | 0.2 | 0.05 | 0.00005 | 99,999 |
25 | B | 7 | 3.5 | 0.28 | 0.07 | 0.00005 | 99,999 |
32 | B | 12 | 6.0 | 0.48 | 0.12 | 0.00005 | 99,999 |
40 | B | 20 | 10 | 0.8 | 0.20 | 0.00005 | 99,999 |
50 | B | 30 | 15 | 3.0 | 0.45 | 0.00005 | 99,999 |
b, Reed switch technical data:
Contact type | Contact the maximum rated power | Max Switching Voltage | Max Switching Current | Max contact resistance | Min insulation impedance | Typical resonance frequency |
(W) | (V) | (A) | (mΩ) | (Ω) | (KHz) |
Normal open | 1 | DC24 | DC 0.1 | 100 | 109 | 5 |
*Pressure loss:
When in overload flow, allowance max pressure loss: 0.1Mpa;
*Dimension:
Diameter | Length L1 | Length L | Width B | Height H | Height H1 | Connecting Thread |
DN(mm) | mm | D | d |
15 | 165 | 258 | 89 | 115 | 185 | G¾B | R½ |
20 | 195 | 298 | 89 | 115 | 185 | G1B | R¾ |
25 | 225 | 345 | 98 | 135 | 205 | G1¼B | R1 |
32 | 230 | 354 | 104 | 135 | 205 | G1½B | R1¼ |
40 | 200 | 328 | 112 | 143 | 211 | G2B | R1½ |
50 | 245 | 389 | 124 | 165 | 233 | G2½B | R2 |
*Pulse sending Position:X0.1,X0.01 or X0.001
