Product Specifications
| Prod Model: |
KRC3000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Molex Micro Fit |
| Pitch: |
3.0mm Pitch |
| Circuits: |
2-24 Pins |
| Wire Application: |
UL Awg 24-28 |
| Mounting PCB: |
Top/Side Entry |
| Cataloge: |
Cimp Connector |
| PCB Application: |
Power/Signal Connector |
| Products: |
PCB Connector |
| Temperature: |
Higher/Lower |
| Products Types: |
Female/Male Connector |
| Application: |
Computer |
Product Description

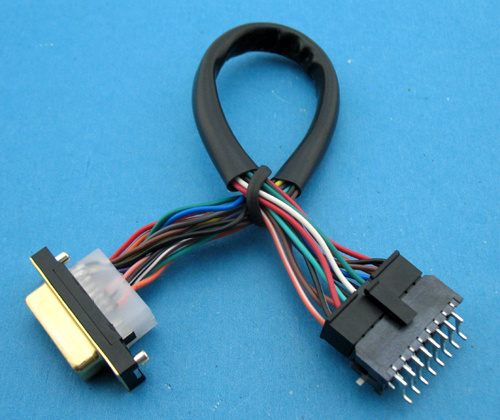

Molex Micro Fit Cable Harness Assembly (KRC0014)
1. About us
1). We are professional supplier of interconnect products
2). ISO9001 certified, committed to conforming to global environmental standards
3). Favorable price
4). Punctual delivery time
5). Best after sales service
6). We offer a wide variety of wire/board connector solutions for telecom, computer/ peripherals, automotive, premise wiring, industrial, consumer and medical markets.
2. Main Productions Market:
1). Consumer Electronic Market
2). Computer Electronics Market
3). Communication Electronics Market
4). Medical Electronic Market
5). MobilePhone Electronic Market
6). Automobible Electronic Market
3. Main Enviromental Perfomance:
Resistant Temperature / Moisture / Salt-fog / Shock / Vibration
4. Technological Specifications:
Current rating: 3A AC, DC
Voltage rating: 250V AC, DC
Temperature range: -25° C to +85° C
Contact resistance: ≤ 20MΩ
Insulation resistance: ≥ 1000MΩ
Withstand voltage: 1500V AC/minute
Applicable wire: AWG #18 to #28
5. Application:
Digital camera, Home appliances, Computer, MP3/4/5, LCD, TV, Telephone, Monitor equipment, etc.
6. Products Detail and Technological Specification, As follow tabel:
|
Products Detail |
|
Type |
Type |
Type |
Type |
|
Male/Female Housing |
Male/Female Crimp Terminal |
Pin Header/Wafer |
OEM wire harness |
|
P/N |
P/N |
P/N |
UL1007 AWG#24-28 |
|
KR3000— H |
KR3000— T |
KR3000— W |
Various Color |
|
Description |
Description |
Description |
single/strand cable |
|
pitch: 3.0mm |
wire range: AWG#24--#28 |
pitch: 3.0mm |
100% test for connector jointing to cable before shipping |
|
poles: 2-16 Pins/circuits |
Material: brass/Tin-plating |
poles: 2-16 Pins/circuits |
|
Material: Nylon, UL94V |
MPQ: 10000 /reel |
PCB mounting direction: Top/Side entry |
|
|
MPQ: 1000/bag |
|
Material: phoshpor Bronze |
|
|
|
contact: brass/Tin-plating |
|
MPQ: 1000/bag |
Founded in 2000, Dongguan A Rui Electronic Co., Ltd.Is a professional Manufacturer of connectors who is focusing in the tooling, developing, production and selling.Our main products are Housings, Terminals, Pin header/Wafers and Wire harnesses assembly;LVDS cable connectors, HDMI etc.
It's located in one famous economically developed cities - Dongguan City, Guangdong Province China.Our products are widely used in LCD, portable computers, computer peripherals, digital cameras, household appliances, communications, cars etc.Connection.All our products are environmentally-friendly cause they are compliant with European standards, such as UL, CSA, SGS, TUV and RoHS etc.Standards.Our products are exported to Europe, USA, MID east, Southeast Asia, etc.Area.
Through the efforts of our entire staff, we have attained ISO9001 certification, We are pround to win a good reputation from customers and suppliers!
Our promise--High quality, Rapid delivery, Favourable price, Win-Win!
We always wish establishing successful relationship with you to create mutual benefits!
