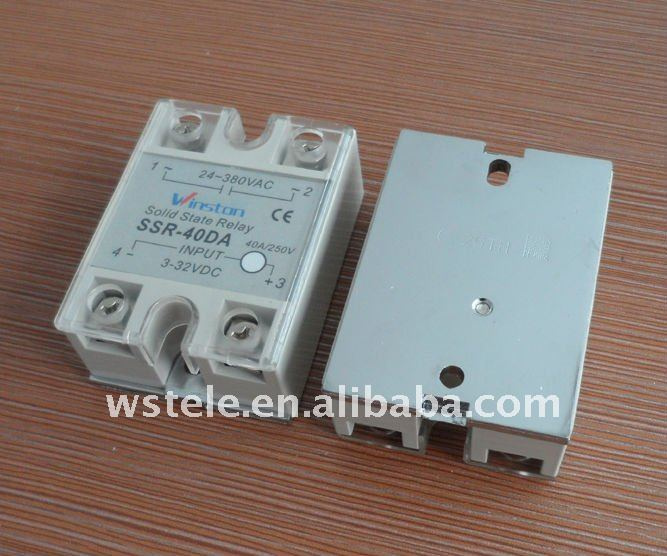

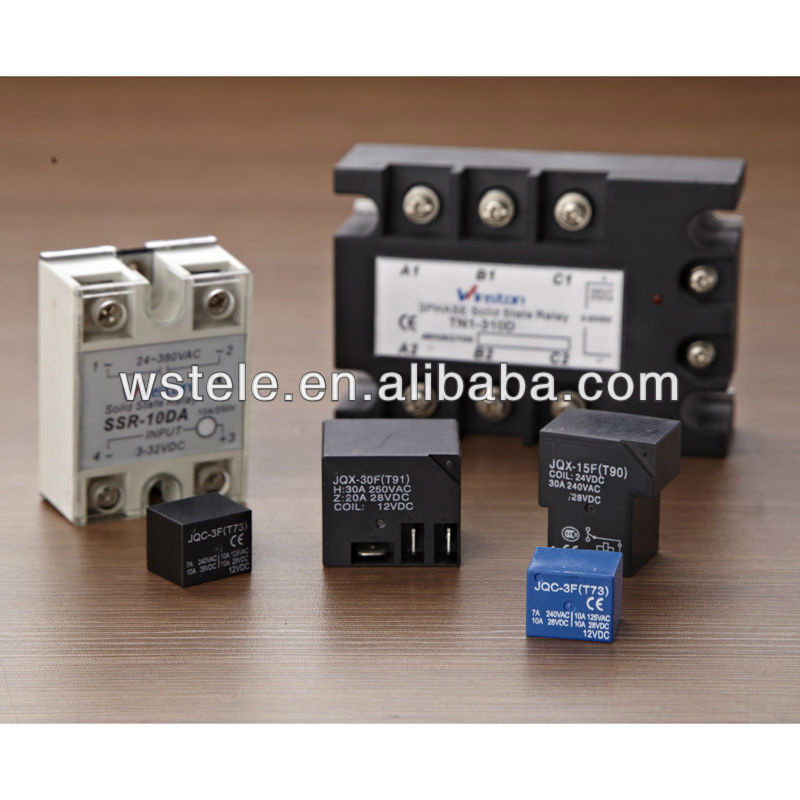

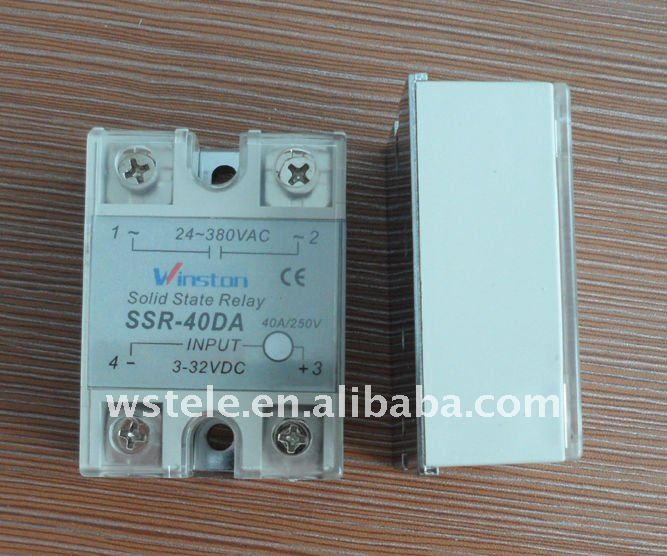

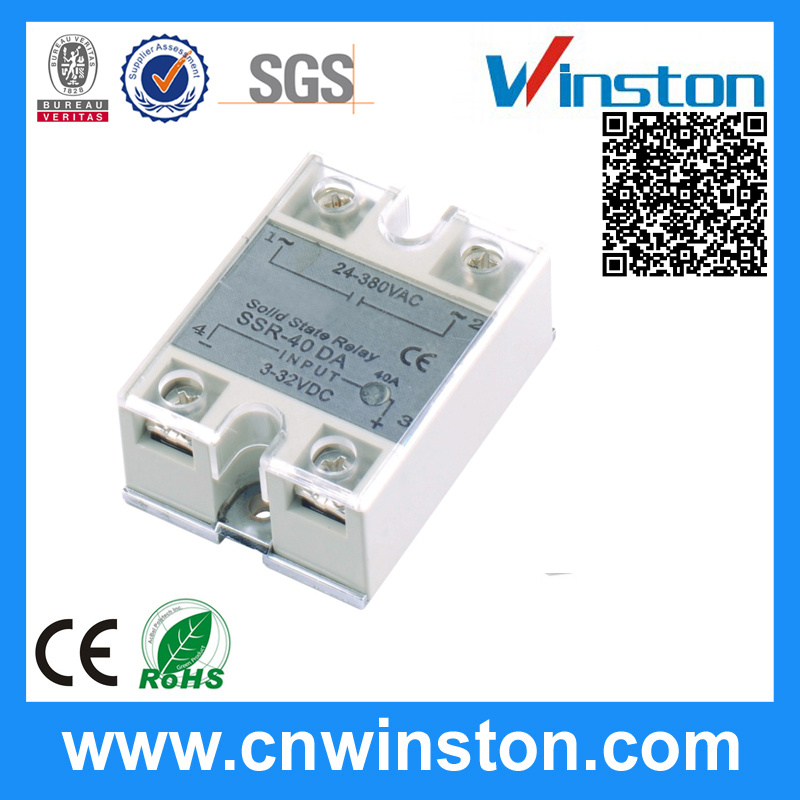

We can supply kinds of solid state relay, time relay, thermal relay, pcb relay, general purpose relay, power relay, timer switch and so on.SSR-40DA DC to AC SSR solid state relayInput voltage: 3-32VDC
Output voltage: 24-380VAC/90-480VAC
Current: 10A, 15A, 20A, 25A, 30A, 40A, 50A, 60A, 75A, 80A, 90A, 100A, 120A
Can OEM
Others models: SSR-10DA, SSR-15DA, SSR-20DA, SSR-25DA, SSR-30DA, SSR-40DA, SSR-50DA, SSR-60DA, SSR-75DA, SSR-80DA, SSR-90DA, SSR-100DA, SSR-120DA.Zero crossing.1. All solid state, optically coupled for 2500 VAC isolation between input and output circuit.
2. Load current of between 10A to 75A
3. Able to be driven by IC such as TTL & CMOS.
4. Internally mounted snubber circuit protection for huge current application.
5. A LED can indicate the operation of devices.
6. With finger protection desing for preventing users from electrical shock.
7. Long service lifte time and high reliability.
8. With CE approval. | load current | 10A, 20A, 25A, 30A, 40A, |
| |
| load voltage | 24-380VAC |
| input voltage | 3-32VDC |
| input current | DC3-25mA |
| voltage drop | ≤1.5V |
| leakage current | ≤2mA |
| on-off time | ≤10mS |
| dielectric strength | 2500VAC |
| insulation resistance | 1000MΩ500VDC |
| ambient temperature | -30~+75ºC |
| mounting method | bolt fixed |
| working indication | LED |
| weight | 90g(10A,25A)
135g(40A and above) |
Why choose us?
1.Professional manufacture
2.With complete varieties
3.Accept OEM
4.Considerate in place of after-sales service For any inquiry regarding solid state relays, please feel free to contact
We also can supply ZG33, ZG3NC, ZG3V, ZG3M, ZG3T and other models.
