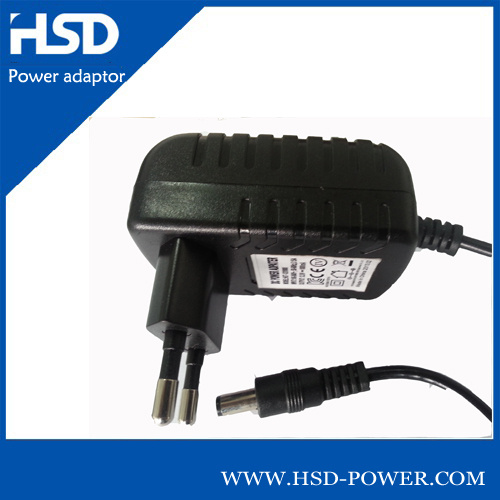

Wallmount 30W 30V Phone Charger Switching Power Adapter
1. Technical Specification:
Input Voltage : 90VAC-264VAC
Input Frequency Range : 47-63Hz
Input Current :0.3A/110VAC
Inrush Current :30A /230VAC
Output MAX power: 30w
Output voltage: 30.0v
Output current: 0-1000mA
Line Regulation : ±5%
Load Regulation : ±5%
Ripple&Noise : <50mVp-p
No load power Dissipation:<0.3W
Efficiency:>70%
2. Features:
Protections:Short circuit/ Over load/Over voltage/ Over temperature
MTBF:50000 Hours
Operationg Temperature:-20C~+45C
Storage Temperature:-40C~+85C
Safey& EMI:UL60950,EN60950/EN55022,EN61000
Warranty:2 Years
Dimension : 60*40*26mm(L*W*H)
3. Certificates Obtained:
CB Report (Global): IEC60950-1/IEC60065
CCC Certificate (China): GB4943-2001/GB8898
GS Certificate(Europe): EN60950-1/EN60065
CE Certificate(Europe): EN55022, 55024/55013,55020
BS Certificate(Britain): BS EN60950-1/BS EN60065
ETL Certificate(North America): UL60950-1/UL60065
SAA Certificate(Australia): AS/NZS 60950.1 AS/NZS 60065
KC Certificate(Korea): K60950-1/K60065
PSE Certificate(Japan): J60950-1/J60065
4. Application :
Consumer Electronics Products, Toys, DVD/ MP3/MP4, IP camera, Antenna Communications products, Wireless AP, Wireless Router, IP phones, Security Systems, Set-top boxes, Health care electronics, LED lighting products and so on.
Universal power adapter
Welcome to our company
Our certification
All of our products outputs accept customized if you have other requirements ,pls kindly tell us !!!
|
MODEL |
HSD-25-5 |
HSD-25-7.5 |
HSD-25-12 |
HSD-25-15 |
HSD-25-15 |
HSD-25-18 |
HSD-2528-24 |
HSD-25-48 |
|
OUTPUT |
DC VOLTAGE |
5V |
7.5V |
9V |
12V |
15V |
18V |
24V |
48V |
|
CURRENT REGION |
0-4.0A |
0-2.93A |
0-2.77A |
0-2.08A |
0-1.66A |
0-1.38A |
0-1.04A |
0-0.52A |
|
RATED CURRENT |
4.0A |
2.93A |
2.77A |
2.08A |
1.66A |
1.38A |
1.04A |
0.52A |
|
RATED POWER |
20W |
22W |
25W |
25W |
25W |
25W |
25W |
25W |
|
RIPPLE&NOISE(MAX) |
75mVp-p |
90mVp-p |
90mVp-p |
120mVp-p |
150mVp-p |
150mVp-p |
150mVp-p |
150mVp-p |
|
VOLTAGE TOLERANCE |
±5% |
±5% |
±5% |
±5% |
±3% |
±3% |
±3% |
±2% |
|
LINE REGULATION |
±1% |
±1% |
±1% |
±1% |
±1% |
±1% |
±1% |
±1% |
|
LOAD REGULATION |
±5% |
±5% |
±5% |
±3% |
±3% |
±3% |
±2% |
±2% |
|
SETUP ,RISE TIME |
500ms,20ms/230VAC 500ms,20ms/110V at full load |
|
HOLD UP TIME |
50ms/230VAC 10ms/115AC |
|
INPUT |
VOLTAGE RANGE |
110-264VAC |
|
FREQUENCY RANGE |
47-63HZ |
|
EFFICIENCY |
76% |
78% |
80% |
81% |
82% |
83% |
84% |
85% |
|
AC CURRENT |
0.31A/110V 0.7A/220V |
|
INRUSH CURRENT |
COLD START:45A/230VAC |
|
LEAKAGE CURRENT |
<0.25mA/240VAC |
We are professional electrical and power supply, electrical appliances, charge, LED driver, switching power supply.
