Specification
Capacitance(uf) | 40uF | 10uF | 20uF | 50uF | 3uF |
Rated DC voltage Un (V) | 1250VDC | 1400VDC | 1400VDC | 350VDC | 500VAC |
Max rms current Imax (A) | 40A | 18A | 35A | 35A | 45A |
Capacitance Tolerance (J) | +/-5% | +/-5% | +/-5% | +/-5% | +/-5% |
Dv/dt (V/us) | 20.0 | 20.0 | 20.0 | 20.0 | 800 |
Self Inductance Rs (nH) | <10 | <10 | <10 | <10 | <10 |
Ut-t (V) | 1250V,10S | 1800V,10S | 1800V,10S | 600V,10S | 1800V,10S |
Ut-c (V) | 3000VAC,60S | 3000VAC,60S | 3000VAC,60S | 3000VAC,60S | 3000VAC,60S |
Size (mm) | 74*46*49 | dia50*60 | dia50*60 | dia50*60 | dia50*60 |
tg(20C,10Khz) | <100x10-4 | <30x10-4 | <50x10-4 | <55x10-4 | <10x10-4 |
Note: other specifications and size out of the table are negotiable.
Features
1.Used in high power high frequency switching power supply of high-frequency pulse current absorption filter
2.Low ESR, high ripple current handling capabilities and large current shock
3.Low LS, good high frequency characteristics
4.Self-healing property
5.Long lifetime
6.Plastic case, filled with resin

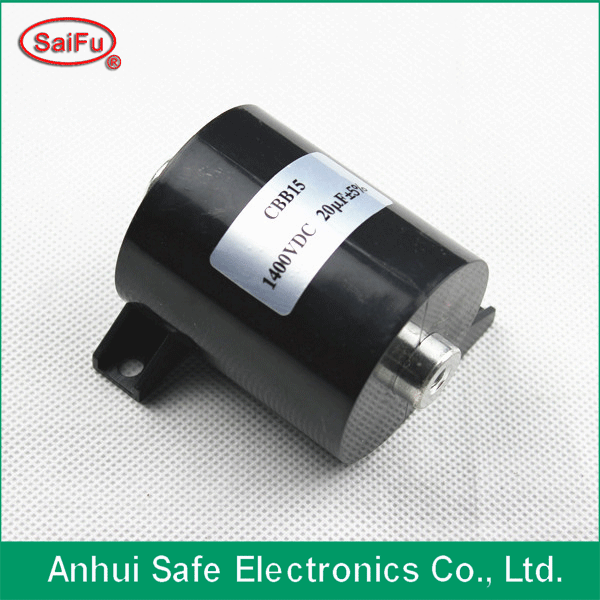

CBB15/16 applications:
These capacitors are used for high frequency switching power supply filter,absorption, in every other straight, resonant circuit
And it is widely applied to EMI, such as high frequency welding inverter, UPS, electric vehicles,etc.
