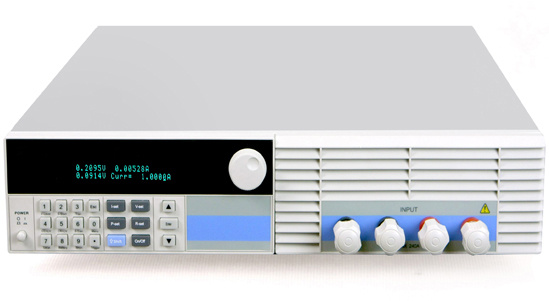

DC Electronic Loads
Intepro Systems is proud to offer a wide selection of DC Loads. Intepro Systems Series of DC Electronic Loads are designed for ultimate flexibility and configuration in providing the ideal load solution for testing AC/DC power supplies, DC/DC converters, chargers, batteries, adapters, and power electronic components. These loads can be used for research, development, production and incoming inspection applications. Loads may be controlled via Ethernet, USB GPIB or RS-232.
Intepro loads operate at the high speeds necessary to meet the demanding transient and dynamic response characteristics required for today's modern PSU. All EL and ML loads have independent control of the positive and negative slew rates. Two ranges provide full scale transitions from 20uSecs to 5mSec in 10uSec steps. This provides ultimate load simulation and control capability. Standard waveforms include sine, triangle, saw tooth, square and pulse.
EL97xx SERIES - BENCH and RACK SERIES
The EL97xx Electronic loads Series is a new line of bench and rack mount loads that combines six modes of operation with fast rise time. Special test features including programmable CC soft start, dynamic pulsing, built in battery test, and short circuit mode make the loads ideal for testing power supplies and batteries as well as other power products. Loads range from 150 watts to 6000 watts.
Key Features
16-Bit program and measurment resolution
150W to 6000W models
150V and 500V maximum voltage
Maximum current to 0.5V; operates to 0.3V
CC, CR, CV, CP, CC+CV, CR+CV modes
Short Circuit
Battery test mode
Welcome and thank you for visiting Intepro Systems. Since 1981, Intepro has supplied users and manufacturers all over the world ATE systems to test power electronics used in a wide range of applications. Our knowledge and expertise in moving and measuring power makes our system unparalleled for production testing, ESS screening, repair and characterization of power components and sub assemblies used across all industries.
Key to our systems is an open architecture for hardware and software that permits complete flexibility to configure and integrate third party instrumentation with a wide range of Intepro and customer hardware.
Our systems are based universal buses (VXI, PXI, LXI, CAN, Ethernet, GPIB, Serial) that provides choice to the customer and not limited to a those few instruments built by competition. We integrate all commercially available equipment that meets your test requirements.
And tying it all together is our PowerStar 5 Test Executive software, the leading test executive for power electronics testing for a decade. PowerStar 5 lets users choose from quick test programming using drag and drop, fill-in-the-blank canned routines OR the ultimate flexibility like off the shelf test executives.
With hundreds of customers around the world and thousands of installed systems, Intepro has sales and support offices in China, Ireland, UK and USA and a network of independent representatives and distributors. These offices offer a full set of test services including, Integrated Test Systems, Software, Training, Support, Applications Assistance, and Hardware and Software Maintenance coverage.
Intepro offers unique test system integration to all our customers. We will develope a quality test system to fit your requirements.
Functional test and design verification systems for power supplies, power components and power modules
Life cycle testing and reliability stress screening of AC/DC and DC/DC converters, rechargeable batteries and other power electronics components
This extremely versatile software can be used for functional PSU testing and burn-in test. PowerStar 6 is a very comprehensive software package with ease of use featuring highly. Just some of the features include drag and drop programming, pre-defined test libraries and the facility to generate new tests.
Intepro Systems offers Cost efficient AC Sources Intepro Systems entered a partnership with Preen to help solve our customers AC source needs. We now specialize in AC sources that range from 0.5kVA to 2MVA.
Intepro also specialiazes in AC and DC Electronic Loads. Intepro's EL and ML1800 Series of Electronic DC loads work for a variety of different power tests and are completely compatible within our test systems and test software PowerStar. Our EL Series DC loads are high power ranging from 150W to 6000W while the ML1800 is a modular DC load with modules from 300W to 600W.
Some Key Features include:
Graphic User Interface
Dedicated PSU Test Library
SQL Compatible
Automatic Report Generator
Flexible Test System configuration
Fast Test Times
Multi-Unit Simultaneous Testing
Real Time print out on failed tests
