Product Specifications
| Prod Model: |

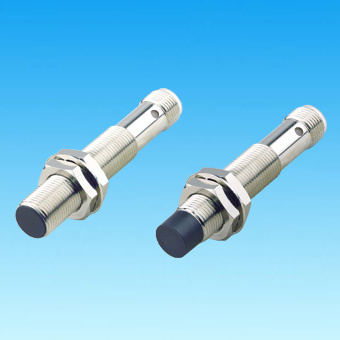

M12*68 Euro Style |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Operating Voltage10-30VDC
Ripple<10%
No Load Current<10mA
Max. Load Current150mA
Leakage Current<0.01mA
Voltage Drop<1.5V
Switching Frequency 2kHz/1kHz/800Hz 1kHz/500Hz/400Hz
Response Time 0.1ms/0.2ms/0.2ms 0.2ms/0.3ms/0.5ms
Switching Hysteresis<15%(Sr)
Repeat Accuracy<1.0%(Sr)
Protection CategoryIP67
Operating Temperature-25° C - +70° C
Temperature Drift<10%(Sr)
Short Circuit ProtectionYES
Overload Trip Point 180mA
EMCRFI>3V/M / EFT>1KV / ESD>4KV(contact)
Shock/Vibration IEC 60947-5-2, Part 7.4.1 / IEC 60947-5-2, Part 7.4.2
Material Active Face PBT
DC 3wire 10-30V NPN N. O. IA1T B12 * N OEA4 IA2T B12 * N - OEA4 25
DC 3wire 10-30V NPN N. O. IA1T B12 * N CEA4 IA2T B12 * N - CEA4 25
DC 3wire 10-30V PNP N. O. IA1T B12 * P OEA4 IA2T B12 * P - OEA4 26
DC 3wire 10-30V PNP N. C. IA1T B12 * P CEA4 IA2T B12 * P - CEA4 26
DC 4wire 10-30V Changeover NPN(N. O. &N. C. )
DC 4wire 10-30V Changeover PNP(N. O. &N. C. )
DC 2wire 10-60V N. O.
DC 2wire 10-60V N. C.
DC 3wire 10-55V NPN N. O.
DC 3wire 10-55V NPN N. C.
DC 3wire 10-55V PNP N. O.
DC 3wire 10-55V PNP N. C.
DC 3wire 5-36V NPN N. O.
DC 3wire 5-36V NPN N. C.
DC 3wire 5-36V PNP N. O.
DC 3wire 5-36V PNP N. C.
DC 4wire 5-36V Changeover NPN(N. O&N. C. )
DC 4wire 5-36V Changeover PNP(N. O&N. C. )
HRAN INTERNATIONAL TRADE Co., founded in 2006, with more than 35000M2 manufacturing space, 480 employees, it becomes one of the leading manufacturer of industrial electric product in China. As well as one of the earliest factories in the line with nearly 10 years experience in producing and developing for electric equipment.
The Group has successfully developed and producing various categories in industrial electric products which include: Circuit Breakers, Panel Boards, AC contactors, Meters, Relays, Fuses, Control Units, switches and sockets
Temperature controllers as well as many other electrical accessories such as LED lighting. And tools&hardwares
HRAN Group owns modern R&D center for developing electric products with full-line of high-tech moulding, manufacturing equipment and great strength of technical support, besides advanced design forces powered by first class engineering teams with super industrial computer systems. Thus, each piece of the product is fully assured with top-reliable quality, scientific and novel design as well as excellent workmanship.
HRAN obtained ISO9001 quality system certification, ISO14001, OHSAS18001, CB certification; SEMKO and CE certification, etc. It is no doubt that the products are warmly welcomed not only in domestic but also in overseas market year after year.
In order to keep the leadship in electrical industry, HRAN continuous increase and update manufacturing facilities, keep improving techniques and adopting the most advanced inspect instrument to bring our products to an even higher quality level along with impeccable & rapidly delivery service.
