SPECIFICATION
Input
Type | 48V/50A | 24V/70A | 220V/10A | 110V/20A |
Model No. | SET-48V/50A | SET-24V/70A | SET-220V/10A | SET-110V/20A |
Input voltage | 85-290VAC (Nominal 180-290VAC) |
Input current | 11.5A | 10A | 13.6A |
Input frequency range | 45 Hz-65 Hz |
Power Factor | ≥ 0.99 at P nom ≥ 75% |
Output
Nominal output voltage (Vnom) | 48VDC | 24VDC | 220VDC | 110VDC |
Adjustable output voltage range | 42-59Vdc | 21V-28Vdc | 190-300VDC | 95-150VDC |
Voltage Stabilization Accuracy | ± 0.5% |
Current Stabilization Accuracy | ± 1 % |
Nominal output current (Inom) | 50ADC@50V | 70ADC@24V | 10ADC@300VDC | 20ADC@150VDC |
Efficiency | ≥ 94 % |
Charge characteristic line | IU Characteristic according to DIN41772/DIN41773 |
Default value of the charging voltage | 50V | 24V | 240V | 120V |
O/p Overvoltage Vo> (factory set) | 60V | 29V | 302V | 151V |
Voltage ripple | ≤ 200 mV |
Dynamic accuracy of the charging voltage | <3% of Venom at load change from 10% -90%-10% ;Transient time <50 ms |
Short circuit protection | 15% - 30% of Inom when in short circuit |
Parallel operation | Yes .Current Sharing ± 3% |
Mechanical
Type | 48V/50A | 24V/70A | 220V/10A | 110V/20A |
Model No. | SET-48V/50A | SET-24V/70A | SET-220V/10A | SET-110V/20A |
Weight approx. | 2.6KG | 2KG |
Dimensions (W/H/D) | 103x88x261 |
Type of enclosure / Protection class | IP 20 |
Color (front panel) | Front Black |
PRODUCT DESCRIPTION

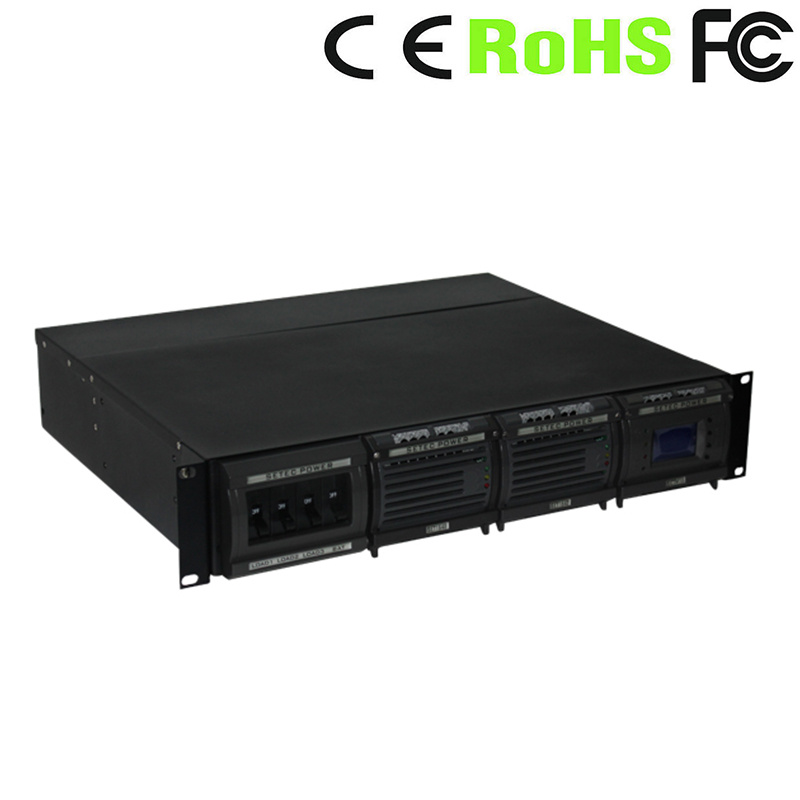

Power supply modules of series SET- 24V/48V/220V/110V are compact battery charging rectifiers
with rear side connectivity.
The rectifiers are designed for high voltage Power Plants and Substations.
Due to the modular concept and a high scalability the user is able to equip the power supply with
additional modules according to his actual power profile. The chargers are very user friendly and
can be swapped as well as upgraded during system operation.
The devices get their operation parameters via the system RS 485 communication bus.
After a successful login a central monitoring unit controls and monitors the devices. In case of interruption
due to failure of monitoring unit the modules operate continuously with internal default values.
Therefore the supply of the connected loads and the charging of the batteries are guaranteed without any
interruption.
Step less temperature control fan speed & change with the output power of module, which minimize
noise & extend fan life.The rectifier needs a 1Ph AC mains connection.
Rectifier power circuit is divided into active PFC & DC to DC converter which can make the wide
input voltage range (85V-290V) & high efficiency.High power density has reached the international
advanced level.
FEATURES
1.Protection for Input and output over /under voltage, over temperature, and short circuit
2. "Hot plug-in" design with back plane connection
3. High power density
4. RS 485 Interface for Remote Adjusting,Controlling, Measuring and Signaling.
5.High Efficiency with low EMI
6. CE Safety and EMC certification
7. LED indication for On / Fault status.
APPLICATIONS
These power supplies are designed for a wide range of applications such as:
1. Power supply for all medium to high power DC loads
2. Rectifiers in DC systems with battery backup
3. Telecommunication.
4. Industrial control systems.
5. Charging and buffering of stationary batteries in electrical power plants
