Product Specifications
Prod Model: |
THN-BS |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Item: |
Deep Pleated Filter with Separator |
External Fram: |
Aluminum |
Sealant: |
Gel-Glue |
Separator: |
Sized Paper or Aluminum |
Filter Media: |
Glass Fiber |
Gasket: |
EVA |
Filtration Grade: |
HEPA Filter |
Application: |
Air Conditioning System |
Material: |
Glass Fiber |
Type: |
Terminal Filter |
Product Description

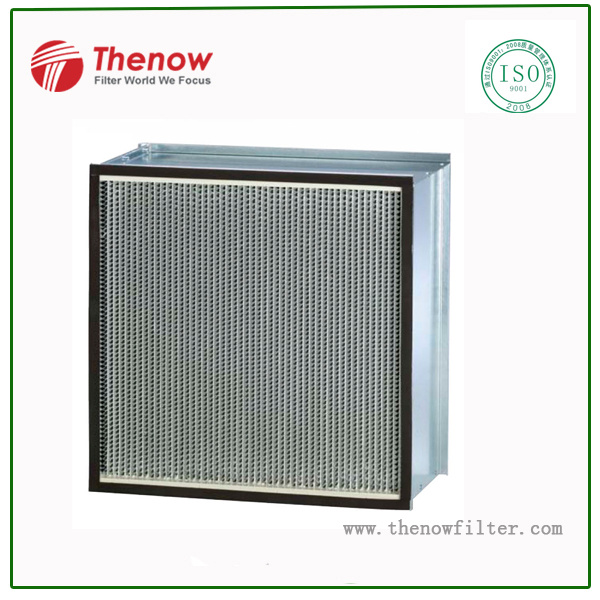

Deep pleated filter with separator
tructure:
Frame | Filter Media | Seperator | Sealant | Gasket | Safe guard |
Aluminum/Galvanised steel/Stainless steel | Fine fiber glass | Aluminum/Paper | Polyurethane | EVA/EPDM | Powdercoated expanded metal |
Feature:
l High efficiency and low pressure drop
l Large surface area, high dust holding capacity
l Sturdy and moisture resistant construction, long life
l Single header, double header and no headers models
Technical Data:
l Thermal Stability:80celcius(High temperature resistant types available)
l Humidity: 100% RH
l Filter class: F6,F7,F8 according to EN779; MERV10,11,13,14 according to ASHRAE
Application:
l Rotating machinery industry, such as centrifugal compressors, gas turbines and engines
l Industrial process(chemicals, pharmaceuticals, food and beverages, optics, electronics, surface treatment technology, etc.)
l Sophisticated air-conditioning technology(laboratories, museums, airports, office buildings, etc.)
Sample data:
Type | W*H*D(mm) | Filter Class | Filter Area(m2) | Airflow(CMH) | Intial Pressure Drop(Pa) |
Box | 305*610*150 | F6 | 3.8 | 650 | 15 |
610*610*150 | F6 | 7.8 | 1300 | 15 |
610*610*292 | F6 | 13.7 | 2000 | 75 |
610*610*150 | F7 | 7.8 | 1300 | 50 |
610*610*292 | F7 | 13.7 | 2000 | 90 |
610*610*292 | F8 | 13.7 | 2000 | 105 |
Single Header | 592*592*150 | F6 | 6.5 | 1300 | 25 |
592*592*150 | F7 | 6.5 | 1300 | 60 |
592*592*292 | F9 | 12.6 | 1800 | 80 |
287*592*292 | F8 | 6.2 | 1000 | 115 |
Thenow was established in 2005, belongs to Apureda Group as the wholly-owned subsidiary. Being a standard maker, Apureda Group is a global specialist in the development and production of filtering systems and solutions with 6 production units.
As one of Apureda Group's production units, Thenow's business is to provide customers with sustainable best-in-class air filtration products and services. We mainly focus on manufacturing industrial filters including dust collector filters, gas turbine intake air filters, oil mist collectors and air purifying filters.
Our business concept is to optimize our product quality and service in line with customer needs. Compared with standard filters, Thenow's products can reduce the operating costs of filtration systems, which keep their pressure drop low over a longer time. Our filters can catch more contaminants and operate at lower average resistances because of better designed filter media and larger filter media surface. Thenow's products are widely used in various fields such as petroleum, chemical industry, steel, paint, electronics industry, pharmaceutical industry, shipping, cement, gas turbine etc.
We are reliable because we know the market, we are honest and truthful. Our people, products and processes must always meet, or supersede, agreed results.
Thenow's qualified staffs is glad to support the customers in all matters concerning the efficiency and operations of our products. We provide our customers in very diverse sectors of industry with maximum benefit from our top-quality filters installed in their highly-complex plant. The flexible, customized package comprises a comprehensive filter program plus service support plus warranties - all at guaranteed fixed costs to bring our partners system solutions that are innovative, high-performance, economically efficient, environmentally friendly and offer excellent value for money.
- Technical service support and maintenance of mechanical and electrical system components
- Filter acceptance measurements
- Measuring dust emissions and immissions
- Technical acceptance testing of the filter and ventilation systems
- Checking the systems' technical condition, weak-point analysis
- Documentation of all work performed
