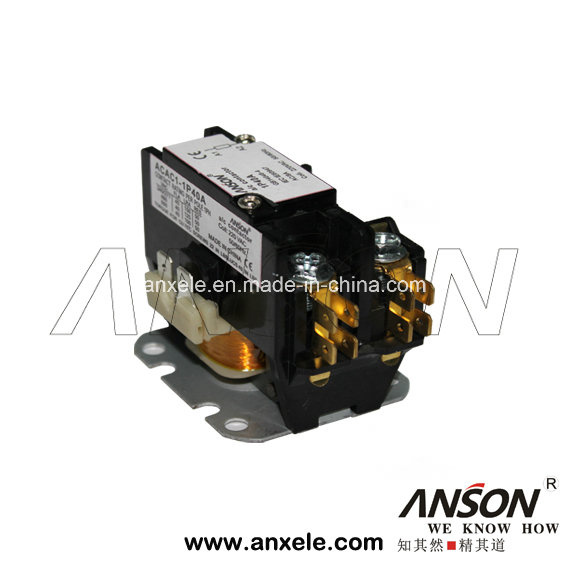

Definite Purpose Contactor (ACAC1-40A 1P 240V)
| Price: |
US $ 4.9/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
200/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Product Specifications
| Prod Model: |
ACAC1-40A 1P 24V, 240V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
Acac1 |
| Poles Numbers: |
1p/2p/3p/4p |
| Certificates: |
CE CB CCC ISO9001 |
| Standards: |
GB10963.1 IEC60898.1 |
| Export Markets: |
Global |
| Protective Characteristics: |
Open Relay |
| Load: |
Medium Power Relay |
| Theory: |
Electromagnetic Relay |
| Size: |
Subminiature |
| Usage: |
Car Relay, Household Appliances Relay |
| Action Principle: |
Electromagnetic Type |
Product Description
Product Description

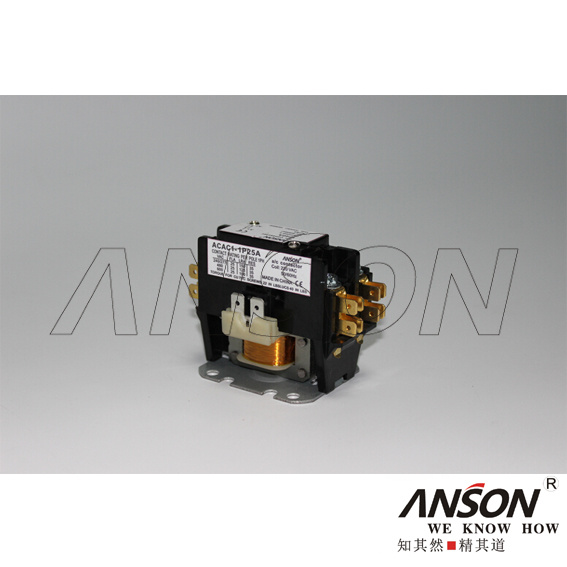

ACAC1 series air conditioning magnetic contactor
ACAC1 definite Purpose Contactor(Follow Defers To DP Contactor), Mainly Is Suitable For 50Hz Or 60Hz, When The AC-8a Use Category Fixed Working Voltage Is 240V Or 277V The Nominal Current Up To The 40A Electric Circuit, Is Suitable For The Starting And The Control Single-Phase Motor (Or Compressor) And Other Single-Phase Loads. Mainly Uses In The Domestic Electric Appliances Profession, Specially In Air Conditioning Profession, Conforms To IEC60947, UL508 and GB14048standard.
| Coil rating | 1Pole contactors | 2 pole contacts |
| Nominal coil voltage | 24 | 120 | 208/240 | 277 | 24 | 120 | 208/240 | 277 |
| Nominal coil resistance Ohms | 18 | 420 | 1800 | 2500 | 11 | 237 | 1000 | 1600 |
| Maximum pick up voltage | 18 | 88 | 177 | 221 | 18 | 88 | 177 | 221 |
| Maximum drop out voltage | 6-15 | 20-70 | 40-140 | 50-165 | 6-15 | 20-70 | 40-140 | 50-165 |
| Nominal rush Va@50Hz | 31 | 31 | 31 | 31 | 33 | 33 | 33 | 33 |
| Nominal rush Va@60Hz | 28 | 28 | 28 | 28 | 30 | 30 | 30 | 30 |
| Nominal rush Va@50Hz | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 8 |
| Nominal rush Va@60Hz | 5 | 5 | 5 | 5 | 6.5 | 6.5 | 6.5 | 6.5 |
| Maximum coil voltage | 30 | 132 | 264 | 300 | 30 | 132 | 132 | 300 |
| Coil rating | 3Pole contactors | 4 pole contacts |
| Nominal coil voltage | 24 | 120 | 208/240 | 277 | 24 | 120 | 208/240 | 277 |
| Nominal coil resistance Ohms | 7 | 180 | 720 | 900 | 6 | 150 | 600 | 750 |
| Maximum pick up voltage | 18 | 88 | 177 | 220 | 18 | 88 | 177 | 220 |
| Maximum drop out voltage | 6-15 | 20-70 | 40-140 | 50-165 | 6-15 | 20-70 | 40-140 | 65-185 |
| Nominal rush Va@50Hz | 65 | 65 | 65 | 65 | 62 | 62 | 62 | 62 |
| Nominal rush Va@60Hz | 60 | 60 | 60 | 60 | 59 | 59 | 59 | 59 |
| Nominal rush Va@50Hz | 7.5 | 7.5 | 7.5 | 7.5 | 9 | 9 | 9 | 9 |
| Nominal rush Va@60Hz | 6 | 6 | 6 | 6 | 7 | 7 | 6 | 7 |
| Maximum coil voltage | 30 | 132 | 264 |
