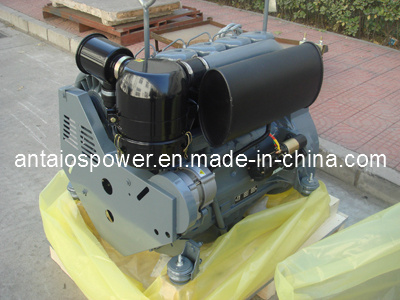

Product Specifications
| Prod Model: |
F4L912 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bore/Stroke: |
100/120 Mm |
| Displacement (L): |
3.77 |
| Air-Intake Way: |
Naturally Intake |
| Power/Rev(Kw/Rpm): |
32/1500 38/1800 46/2300 51/2500 |
| Max. Torque (N.M/Rpm): |
230/1600 |
| Specific Fuel Consumption: |
221 |
| Weight: |
300kg |
| Fuel: |
Diesel Engine |
Product Description
Product Description
Our 912/913 serie air cooled deutz diesel engine under deutz production license from 1980-1997, the engine includes 2\3\4\6 cylinder power from 14-141kw.
Deutz engine f2l912 f3l912 f4l912 f6l912 f4l913 f6l913 bf4l913 bf6l913 f4l912t f6l912t f4l912w f6l912w bf6l913c
Complete list of our deutz engine
1. Deutz 1015 series: Bf6m1015, bf6m1015c, bf6m1015cp, bf8m1015, bf8m1015c, bf8m1015cp
2. Deutz 413/513 series: F8l413f, bf8l413f, f10l413f, f12l413f, bf8l513, bf8l513c, bf10l513, bf12l513
3. Deutz 912/913 series: F2l912, f3l912, f4l912, f4l912t, f6l912, f6l912t, f4l913, bf4l913, f6l913, bf6l913, bf6l813c, f3l912w, f4l912w, f6l912w
Model | Cly. No | Bore/Stroke (mm) | Displacement (L) | Air-intake way | Power/Rev(kw/rpm) | Overall Dimensions (mm) | Weight (kg) |
| F2L912 | 2 | 100/120 | 1.88 | Naturally intake | 14/1500 | 17/1800 | 20/2300 |
| 678x704x872 | 245 |
| F3L912 | 3 | 100/120 | 2.828 | Naturally intake | 24/1500 | 29/1800 | 36/2300 | 38/2500 | 730x673x815 | 275 |
| F4L912 | 4 | 100/120 | 3.77 | Naturally intake | 32/1500 | 38/1800 | 46/2300 | 51/2500 | 860x673x815 | 300 |
| F4L912T | 4 | 100/120 | 3.77 | Turbo charged | 41/1500 | 48/1800 | 52/2000 |
| 860x673x815 | 315 |
| F4L913 | 4 | 102/125 | 4.086 | Naturally intake | 34/1500 | 40/1800 | 50/2300 | 56/2500 | 860x673x820 | 310 |
| BF4L913 | 4 | 102/125 | 4.086 | Turbo charged | 47/1500 | 55/1800 | 66/2300 | 78/2500 | 865x692x845 | 350 |
| F6L912 | 6 | 100/120 | 5.655 | Naturally intake | 48/1500 | 60/1800 | 74/2300 | 78/2500 | 1120x673x815 | 410 |
| F6L913 | 6 | 102/125 | 6.128 | Naturally intake | 51/1500 | 65/1800 | 79/2300 | 85/2500 | 1120x673x820 | 420 |
| F6L912T | 6 | 100/120 | 5.655 | Turbo charged | 61/1500 | 72/1800 | 81/2300 | 85/2500 | 1125x673x815 | 410 |
| F6L913T | 6 | 102/125 | 6.128 | Turbo charged | 61/1500 | 70/1800 | 91/2300 | 96/2500 | 1125x673x820 | 430 |
| BF6L913 | 6 | 102/125 | 6.128 | Turbo charged | 74/1500 | 88/1800 | 112/2300 | 118/2500 | 1134x711x910 | 485 |
| BF6L913C | 6 | 102/125 | 6.128 | Turbo charged after cooling | 84/1500 | 105/1800 | 125/2300 | 141/2500 | 1134x711x990 | 510 |
| ADG BF6L913 | 6 | 102/125 | 6.128 | Turbo charged | 88/1500 | 106/1800 |
|
| 1134x711x910 | 485 |
| ADG BF6L913C | 6 | 102/125 | 6.128 | Turbo charged after cooling | 114/1500 | 137/1800 |
|
| 1134x711x990 | 510 |
| F3L912W | 3 | 100/120 | 2.828 | Naturally intake |
| 29/2150 | 31/2300 | 33/2500 | 730x673x815 | 275 |
| F4L912W | 4 | 100/120 | 3.77 | Naturally intake |
| 39/2150 | 42/2300 | 44/2500 | 860x673x815 | 300 |
| F6L912W | 6 | 100/120 | 5.655 | Naturally intake |
| 60/2150 | 63/2300 | 66/2500 | 1120x673x815 | 410 |
FAQ
1. HOW DO YOU SUPPLY AFTER SERVICE IF CUSTOMER IN FOREIGN COUNTRIES?
A:AT PRESENT, WE DON'T HAVE AFTER-SERVICE SITE IN FOREIGN COUNTRIES,IT HAS ALREADY TAKEN OUT 2% DESCOUNT FROM EXPORT PRICE FOR NO-AFTER-SERVICE.IF THERE IS QUALITY PROBLEM OF OUR PRODUCTS IN WARRANTY TIME,OUR SOLUTION IS:1.INTERNET REMOE TECHNICAL SERVICES 2.SUPPLY NEW SPARE PARTS TO USER FOR REPAIRING 3.CHANGE DAMAGED OR QUALITY PARTS FREE OF CHARGE.
2. HOW ABOUT TRANSPORT?
A:FOR CAERRN CARGO ,WE GENERALLY USE AIR COURIER DELIVERY TO THE CUSTOMER, FOR BULK GOODS, WE HAVE ADOPED SHIPPED BY SEA TO THE PORT OF DESTINATION SPECIFIED BY THE CUSTOMER,OR THE CUSTOMER DESIGNATED WAREHOUSE.We WORK WITH WORLD-RENOWNED SHIPPING,AIR TRANSPORT COMPANIES HAVE ESTABLISHED A GOOD COOPERATIVE RELATIONSHIP,WHICH ENSURES LOW SHIPPING COSTS AND OUR TRANSPORTATION SAFETY.
3.WE CAN FOLLOW OUR ENGINE PRODUCTION , IF ENGINE IS EQUIPEED WITH SPECIAL REQUIRENMENTS.
A:OUR ADVANTAGE IS THAT YOU CAN CUSTOMIZE ACCORDING TO CUSTOMER REQUIREMENTS AND CHANGE THE CONFIGURATION OF THE ENGINE, IF THE CUSTOMMER HAS SPECIAL REQUIREMENTS FOR THE ENGINE CONFIGURATION, WE WILL GO ACCORDING TO CUSTOMER REQUIREMENTS CUSTOMIZED PRODUCTION.
4.HOW ABOUT THE DELIVERY TIME?
A: THE PRODUCTION TIME OF COMPLETE DIESEL ENGINE IS ABOUT 15~20 DAYS.
ABOUT SPARE PARTS, THERE ARE ENOUGH RESERVE FOR PARTS, DELIVERY TIME IS 15~20 DAYS.
Beijing Antaios Technology Co., Limited is the absolute specialist of China in engines & parts & gensets field. So far away, we mainly supply engines and related parts and genset which were of Deutz licensed technology and then developed to Chinese own brand with more subsidiary series, smaller size, more environment friendly and better function. Including: 912/913/413/513 air-cooled series; 1015 series; Cummins China series. All products are passed ISO9001 quality system authentication,
We are familiar with different parts manufacturers and can well organized the parts supply and quality control, that's why we can satisfy our clients with reasonable price and good quality.
We are pleased to give full solution to your demand and aimed to be your most trustworthy partner in China.
Our Products List:
Deutz Chinese license diesel engine & deutz engine spare parts of water cooled 1015 series, air cooled 413/513 series and Deutz technology of China 912/913 Series.
Dongfeng-Cummins series water cooled diesel engine &spare parts.
DEUTZ, CUMMINS, LOVOL Series Diesel Generator Set
Concrete Pump which including engine and electromotor powered, S Pipe valve and gate valve, two Series and more than twenty models.
