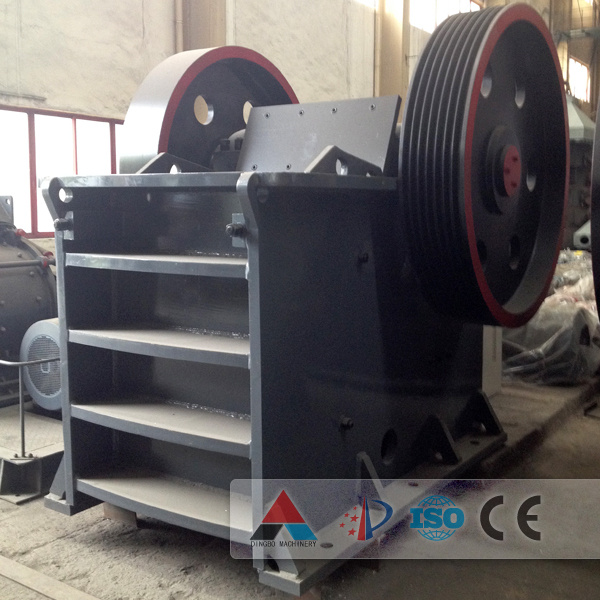

Diesel engine Motor Type and Jaw Crusher Type Portable Stone Crusher
Stone Jaw Crusher Application:
Stone Jaw Crusher is mainly used to crush kinds of mining stones primarily, and the largest compression resistance of the material is 320MPa. The jaw crusher is widely used in stone mining, metallurgy industry, building material, highway, railway, and chemical industry.
Stone Jaw Crusher Advantages:
This series of crushers have many advantages, such as big reduction ratio, even granularity, simple structure, reliable working condition, convenient repair and economical operation.
Our Main jaw crushing machines include: PE-250×400, PE400×600, PE500×750, PE600×900, PE750×1060, PE900×1200, PE1000×1200, PE1200×1500 etc.
Working principle:
Jaw crusher's working type is of moving and squeezing. The working principle is as follows: jaw crusher uses motor as its power. Through the motor's wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the material in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be discharged through the discharging opening.
Technical Parameters of Jaw Crusher
odel | Max. Feeding Size (mm) | Discharge Size (mm) | Capacity (t/h) | Motor Power (kW) | Overall Dimensions (mm) | Weight (t) |
| PE250×400 | 200 | 20-60 | 5-20 | 15 | 1150×1275×1240 | 2.8 |
| PE400×600 | 350 | 40-100 | 15-60 | 30 | 1700×1732×1653 | 6.5 |
| PE500×750 | 425 | 50-100 | 50-100 | 55 | 2035×1921×2000 | 10.3 |
| PE600×900 | 480 | 65-160 | 60-130 | 75 | 2290×2206×2370 | 16.5 |
| PE750×1060 | 630 | 80-140 | 80-180 | 110 | 2620×2302×3110 | 29 |
| PE900×1200 | 750 | 95-165 | 140-260 | 110 | 3789×2826×3025 | 54.5 |
| PEX250×750 | 210 | 25-60 | 10-40 | 22 | 1667×1545×1020 | 5 |
| PEX250×1000 | 210 | 25-60 | 15-50 | 30 | 1550×1964×1380 | 6.5 |
| PEX250×1200 | 210 | 25-60 | 20-60 | 37 | 1560×2104×1415 | 7.7 |
Welcome to visit our factory, Hope we can become good partner. The ISO9001 and SGS approved products will be satisfied you. Just contact me, I am very glad to help you.
Ph:+86-15821950545
Shanghai Dingbo Heavy Industry Machinery Co., Ltd is an integrated enterprise specialized in the design, manufactures sales, installation and after sales of mining and construction machinery, is located in Pudong Airport Industrial District, Shanghai, China.
The Company has independent import-export authority with a professional team for international market to deal with import and export business. We have obtained ISO9001 and CE International Quality Management System Certification. Quality is our company's life. In order to make customers satisfied with every aspect, we have established a very strict and effective quality management system, adopting new technology and advanced equipment, ensuring all of our products reach top standards.
Our main products include:
1) Crushing Plant: Jaw crusher, hammer crusher, impact crusher, roller crusher, cone crusher, VSI crusher and so on.
2) Grinding Plant: Coarse grinding mill, high pressure mill, ball mill, cement mills, ceramic mills, Raymond mill, micro powder mills and so on.
3) Washing and Screening Plant: Sand washer, rotary dryer, vibrating screen, high frequency linear screen, vibrating feeder, belt conveyors and etc.
Nowadays, our products have well known and widely used in international market such as Russia, America, Australia, Mexico, Italy, Kazakhstan, Turkey, India, Indonesia, Vietnam, Iran, India, Chile, Venezuela, Egypt, Libya, Ethiopia, United Arab Emirates, and etc.
Market demand is the drive and basis of our endless innovation. Rich technical experience and the application of high technology make our products rank a leading place in the industry in technology content, performance, reliability and maintenance cost, etc. We expect your choice and prepare to provide you with heartfelt service at any time.
We can provide excellent quality, reasonable prices, and good services and after-sales services for you. We sincerely welcome you to visit our company.
