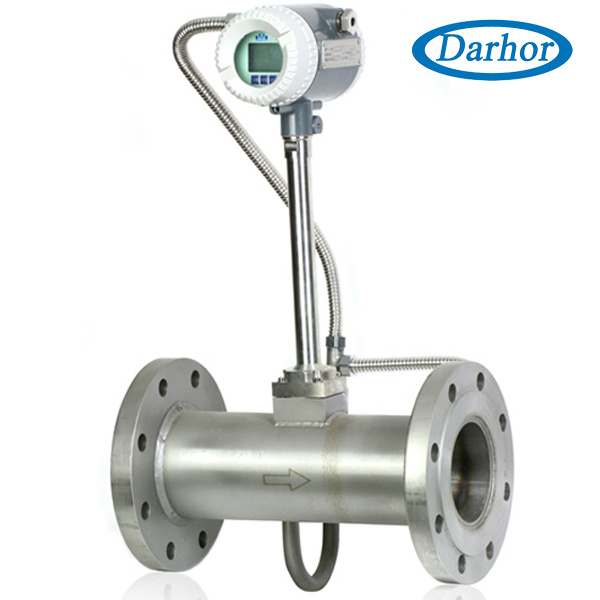

Volumetric vortex flow meter
DH800 volumetric vortex flow meter can measure the mass flow rate of any gas or liquid and are ideally suited for saturated or superheated steam.
Technical Features:
No moving parts, high reliability and durability
Convenient installation and maintenance
Sensor not contact the measured fluids directly, stable performance and long service life
Output pulse signal is directly proportional to flow rate, high accuracy and no zero drift
Wide measuring range, turndown ratio 10: 1
Low pressure loss, low cost
Frequency output not affected by the fluid change in physical character and composition, meter factor (K) only considers shape and dimension of eddies. Measurement of volumetric flow can get compensation once it needs. Then no re-calibration meter factor needed if damaged parts be exchanged
Wide application for steam, gas, liquid
Technical Specifications:
Size: DN15 ~ DN500
Medium: Liquid / Saturaed steam, Superheated steam / Air / gas
Accuracy: ± 1.0% for liquid, ± 1.5% for gas (including steam) / ± 2.5% for inserted
Repeatability: ± 0.33% for liquid, ± 0.5% for gas / ± 0.83% for inserted
Rated Pressure: 1.6MPa, 2.5MPa, 4.0MPa, 6.4MPa
Signal Output: Current output 4 ~ 20mA / RS-485 / Hart / ModBus
Power Supply: 24VDC / 3.6V Lithium Battery / Double Power Supply (24VDC, 3.6V Lithium Battery)
Installation type: Wafer / Fixed Inserted / Adjustable Inserted / Adjustabel Inserted with ball valve
Protection Grade: IP65
Explosion Proof: Exd IIB T4 / Ex ia IIC T4
Fluid temperature: -40 ~ +250oC (standard) / +100~ +350oC (high temperature)
Vortex steam flow meter |
Instruction |
|
Model DH 800 series |
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
|
|
|
|
|
|
|
|
|
Karman Vortex Street |
|
DH-VF |
|
|
|
|
|
|
|
Stress Type Testing |
|
Measuring Ways |
1 |
|
|
|
|
|
Flange connection(GB9119-2000) |
|
2 |
|
|
|
|
|
Clamp flange(equip with flange and bolts in factory) |
|
Medium |
1 |
|
|
|
|
Both for gas and liquid |
|
2 |
|
|
|
|
Liquid |
|
3 |
|
|
|
|
Gas |
|
4 |
|
|
|
|
Steam |
|
Diameter |
2 |
|
|
|
DN25 |
|
4 |
|
|
|
DN40 |
|
5 |
|
|
|
DN50 |
|
8 |
|
|
|
DN80 |
|
10 |
|
|
|
DN100 |
|
15 |
|
|
|
DN150 |
|
20 |
|
|
|
DN200 |
|
25 |
|
|
|
DN250 |
|
30 |
|
|
|
DN300 |
|
Operation Condition |
Blank |
|
|
Normal Type |
|
B |
|
|
Intrinsic safety,iaIICT6 |
|
Signal Output |
P |
|
Voltage pulse, 24V power |
Hand operator and digital control meter is optional |
|
S |
|
Pulse,4~20mA, on-site,24V power |
Optional Input ports:HART,temp.(PT100),pressure sensor,pressure transmitter |
|
D |
|
On-site,without any display,lithium battery |
Without any input ports |
|
Structure |
F |
Separated Type |
|
Z |
Integrated Type |
