Product Specifications
| Prod Model: |
DPF-R144B; DPF-R167B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

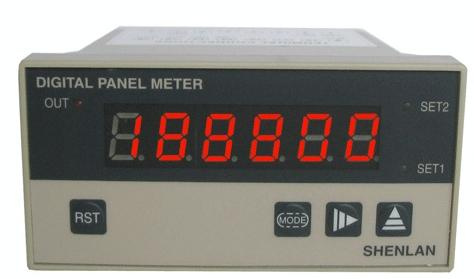

1. Features of Digital Linespeed meter:
* Linespeed meter
* Red LED display, 14.2 mm high
* Soft buttons, easily operate
* Measuring range: Up to 9999
* Measuring frequency is selectable: 0.11~1KHz / 0.11~10KHz (up to 50K Hz can be ordered)
* Frequency and tacho can be converted by software
* Decimal point, modulus and display unit can be set freely;
* Division modulus range: 0~9999
* Multiplication modulus range: 0.001~9999
* Refresh time and zero-return time can be set within 0~9s.
* Power fail holing function, up to 10 years.
* With or without analog output: 0~20mA or 4~20mA
* Relay output ( can drive solid state relay)
|
2. Ordering Code: |
|
Model and Type |
Analog output |
Display and Preset |
Size |
Measuring type |
|
DPF-R144A |
Relay |
4 digit and 1 preset |
48*48mm |
Frequency/Tacho meter |
|
DPF-AR144A |
Analog output 4~20mA |
4 digit and 1 preset |
48*48mm |
Frequency/Tacho meter |
|
DPF-R244A |
Relay |
4 digit and 2 preset |
48*48mm |
Frequency/Tacho meter |
|
DPF-AR244A |
Analog output 4~20mA |
4 digit and 2 preset |
48*48mm |
Frequency/Tacho meter |
|
DPF-R144B |
Relay |
4 digit and 1 preset |
48*48mm |
Linespeed meter |
|
DPF-AR144B |
Analog output 4~20mA |
4 digit and 1 preset |
48*48mm |
Linespeed meter |
|
DPF-R244B |
Relay |
4 digit and 2 preset |
48*48mm |
Linespeed meter |
|
DPF-AR244B |
Analog output 4~20mA |
4 digit and 2 preset |
48*48mm |
Linespeed meter |
|
3. Technical Specifications: |
|
Property project |
Specific parameter |
|
Power supply |
AC 90-250 V (50/60Hz) |
|
Power consumption |
< or = 4VA |
|
Transmitter supply |
12V DC +/-10% Max. 50mA |
|
Measuring range |
* Measuring range=1KHz: 011~1KHz
*Measuring range=10KHz: 011~10KHz |
|
Input signals |
contact input / voltage input / transducer input |
|
Voltage input |
low voltage: 0~2V / high voltage: 4~30V |
|
Input resistance |
5 K ohm |
|
Sampling speed |
0.5~9s, sampling speed auto adjust when input pulse width |
|
Refresh time |
Refresh after sampling speed finishes or manual reset refresh time from 1~9s |
|
Disply range |
9999(4 digit) |
|
Decimal point |
0.001~9.999 (4 digit) |
|
Division modulus |
9999(4 digit) |
|
Multiplication modulus |
0.001~9999 (4 digit) |
|
Ambient temperature |
0~50 C |
|
Humidity(RH) |
35~85% |
|
