Product Specifications
| Prod Model: |
HVS-1000Z/HVS-1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
Digital Micro Hardness Tester |
| Test Load: |
0.098n (10gf)- 9.80n (1000gf) |
| Load Holding Time: |
5-60 Seconds |
| Testing Range: |
1-2967hv |
| Measuring Range: |
HV |
| Application: |
Metal |
| Standard: |
ASTM |
| Type: |
Micro Hardness Tester |

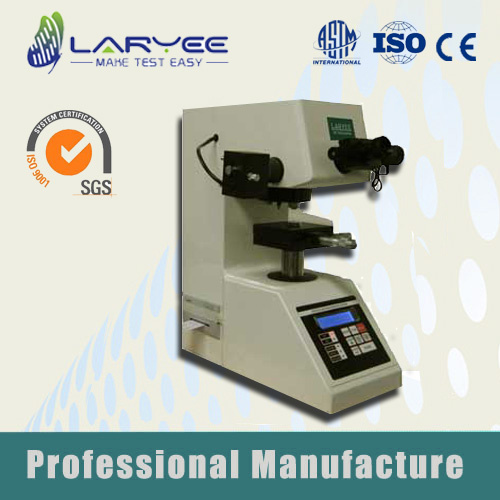

Product Description
The digital micro hardness Tester is a lab instrument to measure the hardness value of all kinds of metals according to Micro indentation hardness principle ASTM E384 and ISO 6507. They are widely used in metallurgy, forging, casting, hardness steel and nonferrous metals, IC thin sections, Coatings, ply-metals; Glass, ceramics, agate, precious stones; Thin plastic section industries, as well as in the laboratories, universities, college and scientific research institutes.
Characters;
1. Measurement field and broader usage range with 10X and 40X lens.
2. LCD screen can directly show measurement methods, test force, indentation length, hardness value, dwell time of test force and the number of measurement.
3. Can be Equipped with digital microscope and interface, which can be linked to camera and CCD video-camera.
4. with Mini printer, easy to print the testing result.
| Description | HVS-1000 | HVS-1000Z |
| Test load | 0.098N (10gf), 0.246N (25gf), 0.49N (50gf), 0.98N (100gf),
1.96N (200gf), 2.94N (300gf), 4.90N (500gf), 9.80N (1000gf) |
| Lens/indenter switch | Hand Turret | Motorized Turret |
| Carriage control | Automatic loading and unloading method |
Magnification
of microscope | For measurement: 400X (Object lens 40 x, eyepiece 10 x )
For observation: 100X (object lens 10 x, eyepiece 10 x ) |
| Load holding time | 5-60 second |
| Measuring microscope | Min measuring unit: 0.0625um |
| Testing range | 1-2967HV |
| Micro test table Size | 100x100mm |
| Movement | 25mmin X& Y axis |
| Max. height of specimen | 70mm |
| Max. depth of specimen | 95mm |
| Power Supply | AC110V/220V 60/50HZ |
| Dimension | (L ) 425 X (W) 245X (H)490mm |
| Net Weight | 35KGS |
Standard Accessories
| Vickers Indenter; Objective(10X, 40X); Digital Micro lens (10X); XY-stage test table; Thin specimen test holder; Fork-shaped test holder; Fine wire test holder; Adjustable screw; Lever; Micro Vickers hardness block. |
