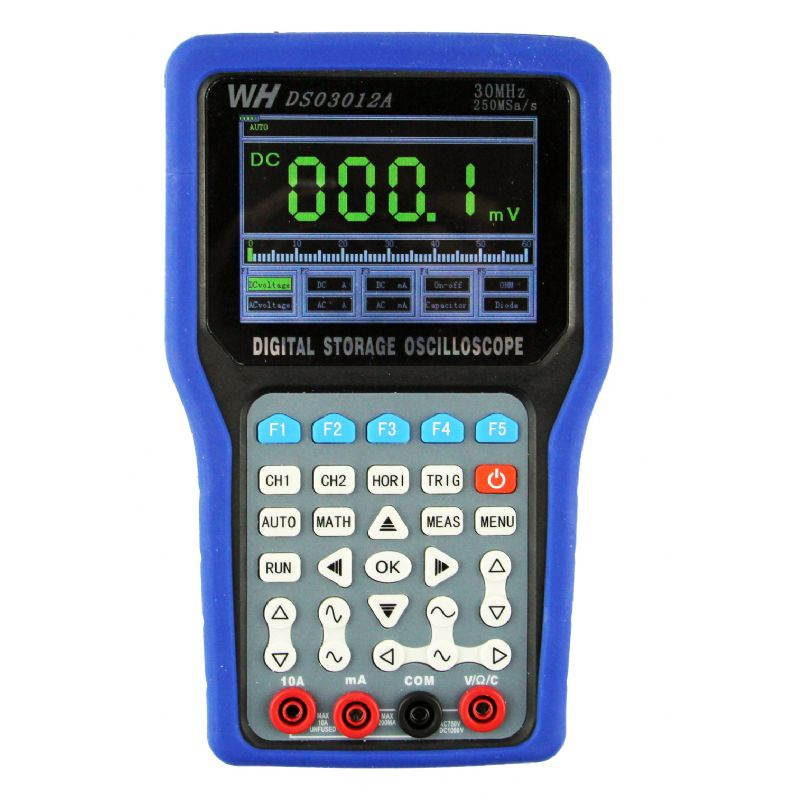

Description
Oscilloscope, digital scopemeter, Auto digital scopemeter,, digital oscilloscope, digital storage oscilloscope, handheld digital storage oscilloscope, handheld digital oscilloscope, oscilloscope meter, scientific oscilloscope, oscilloscope and multimeter, Scopemeter
Characteristics
Designed according to the debugging and repair requirements of lots electronic engineers. Contains a built-in-lithium battery and works without external power supply Oscilloscope and Multimeter 2 in 1 function, Easy for carrying, especially for field application Three Trigger System Mode: Auto, Normal and Single Lock waveform on the screen and save non-periodical signal
Scope indicator:
Input coupling: AC,DC
Input impedance: 1MΩ+2% 20pF+5pF
The maximum input voltage: 40 v (X1 probe); 400 v (probe X10) measurable voltage 220 v; (probe X100) 1000 v voltage can be obtained
Probe attenuation: 1X,10X
Set the probe attenuation factor: 1X,10X,100X
Sampling Method: Real-time sampling, random sampling
Memory depth: 16K
Acquisition Mode: Sample, Peak Detect
Vertical Sensitivity: 10mV-5V (Probe 1X), 100mV-50V (probe 10X), 1V-50V (probe 100X) (1, 2. 5, 5 step)
Vertical accuracy: +/-3%
Vertical resolution: 8bit
Bandwidth: 30MHz
Real-time sampling rate: 250MSa/s
Horizontal scan range: 10 ns - 50 ms (1,2.5, step 5), 100-5 s ms Scan (Scan)
Three Trigger System Mode: Auto, Normal and Single
Type: Rising edge trigger, falling edge trigger
Automatic detection: Support (50Hz-60MHz)
Math:CH1+CH2,CH1-CH2,CH2-CH1
Cursor measurements: Support time and voltage cursors
Measure: Amplitude, frequency, duty cycle, cycle
Multimeter indicator:
Max display 5999
DCV: 600.0mV/6.000V/60.00V/600.0V/1000V
ACV: 600.0mV/6.000V/60.00V/600.0V/750V
DCA: 60.00mA/600.0mA /6.000A/10.00A
ACA: 60.00mA/600.0mA /6.000A/10.00A
OHM: 600.0Ω /6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ/60.00MΩ
Cap: 40.00nF/400.0nF/4.000uF/40.00uF/400.00uF/4000uF
Diode Testing: 0V~2.0V
General description
Display:4.3 -inch 16-bit true color TFT 400 * 272
Low-Voltage Display
Overload protection
Data Hold
Back Light
Power supply: Section 3000 + mA lithium batteries (single battery for 4 hours)
Product size: 220X128X37mm

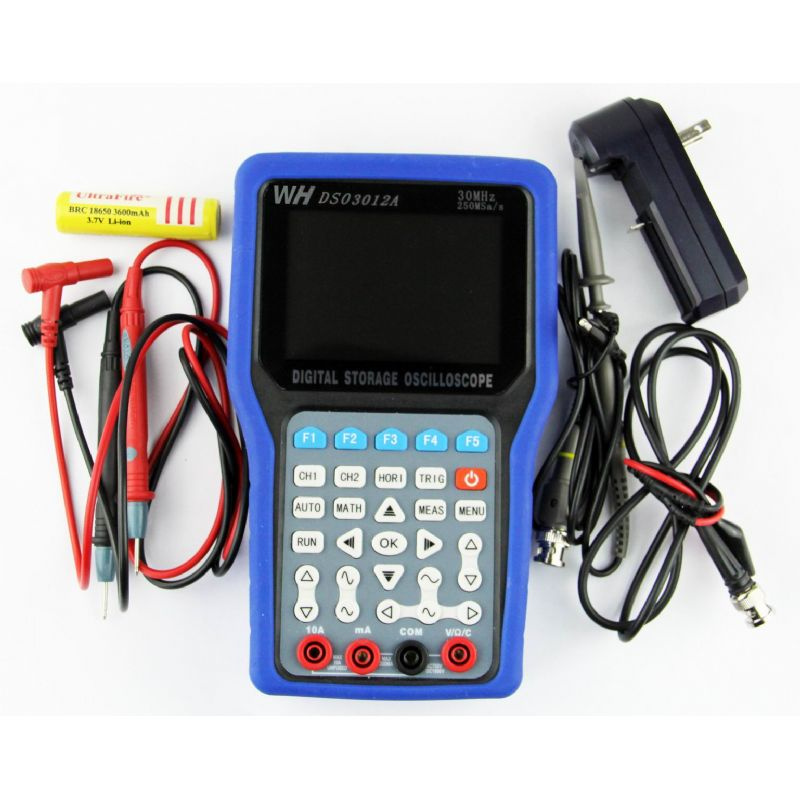

Standard Accessories: meter (incl. battery) gift box, test lead, manual, Oscilloscope Accessories (hook pin & probe & Alligator Clip & Battery charger)
Stand carton
Packing details: Gift Box
Packing quantity: 10PCS/CTN
Carton size: 60*40*50CM
Zhangzhou Weihua Electronic Co., Ltd., is specialized in developing and producing electronic instruments. Our factory is located in Jinfeng Industrial Zone, Zhangzhou, China. We are striving to provide products with higher quality and cheaper price to our customers. With an efficient management team, we are able to provide prompt and timely delivery to our customers. The delivery time of most orders is within 10 days upon confirmation.
We have digital multimeters, digital clamp meter, capacitance meter and other digital meters. All our products are designed according to worldwide safety standards, most of our products have obtained CE approval. Our products are ideal instrument for using in the following field, laboratory, workshop, hobby, home and DIY funs user. And they are sold well at home and abroad. And we have been highly trusted and praised by our clients. We have been in business with customers from over 30 countries all over the word. We have been in business with customers from over 30 countries all over the word.
We had obtained the ISO9000: 2000 quality cortrol system certification, most of our products had gained the cetification of conformity in March of 2005, besides we have gained the quality licence for eligible export commodity in 2001.
Welcome all kinds of OEM or ODM cooperation. With the idea of being honest and keeping improving, we'd like to develop the techonology of measuring instruments with our old and new friends.
