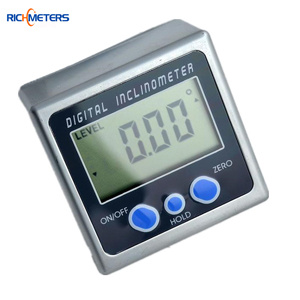

Digital Protractor Inclinometer Bevel Box Level Measuring Tool Electronic Angle Gauge Magnetic Base

Product Specifications

Prod Model:	10034
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Characteristic & Function
With 3 built-in magnets in measuring surface, which is convenient to be attached to the object measuring workpiece.
Power-off automatically in 5 minutes.
 (light weight and durable).
Portable size,convenient to co-work with other measuring tools and enlarge measuring range
Relative/absolute measurement interchange at any position.



Technical Parameters
Measuring range:360 Degree
Resolution: 0.05 Degree
Accuracy: 0.2 Degree
Repeatability: 0.1 Degree
Battery: 9V battery (not send)
Working temperature: 0 -40 Degrees
Dimension: 57x57x30.5mm
With 3 diameter 10mm built-in magnets in measuring surface, which if convenient to be attached to the object measuring workpiece.
Absolute zero measurement based on the horizontal surface
Net weight:0.21kgs



Operating Instructions:
Press the "ON/OFF" button, it turns on, and the LCD displays absolute horizontal angle. Press "ON/OFF"button again, it turn off.
Measurement initially displays 0.0 on the LCD at the beginning, when it displays"on the left side ""on the right side, it means the left side is higher and right side lower; when it displays"" on the left side ""on the right side, it means the left side is lower and right side higher.
Put the instrument on the horizontal stand, and press the "ZERO" button, the value returns to zero, and the read-out is the angle value measured angle value relatively to the horizontal stand.
Press the "HOLD" button, the value on the screen will be locked.
The magnets at the bottom allow the instrument to be attached onto iron material measurement object. Press the "ZERO" button; reset the value to proceed relative measurement.




Application:
More widely application is in wood processing industry (especially in furniture manufacturing industry) for wood angle accurate cutting; auto repair industry for tiring assembling angle accurate controlling; in machining industry for machine tool working angle accurate positioning,and large vehicle arm rotation angle etc.
